To add a pallet to the MCU press the arrow button by "Add".
From this sub menu you can either "Setup" a new pallet ID tag with FTU, "Add" an FTU directly, or "Add
Manual" a pallet that only has a Pallet ID Tag. Below are the procedures for adding a new pallet to the
system.
PALLET ID
TAGS WITH
PALLET ID
READER
PALLET ID
WITH M12
BINARY
INPUTS
G e n e r a l P r o d u c t R e v . A I A W E C N - 5 5 8 1
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****

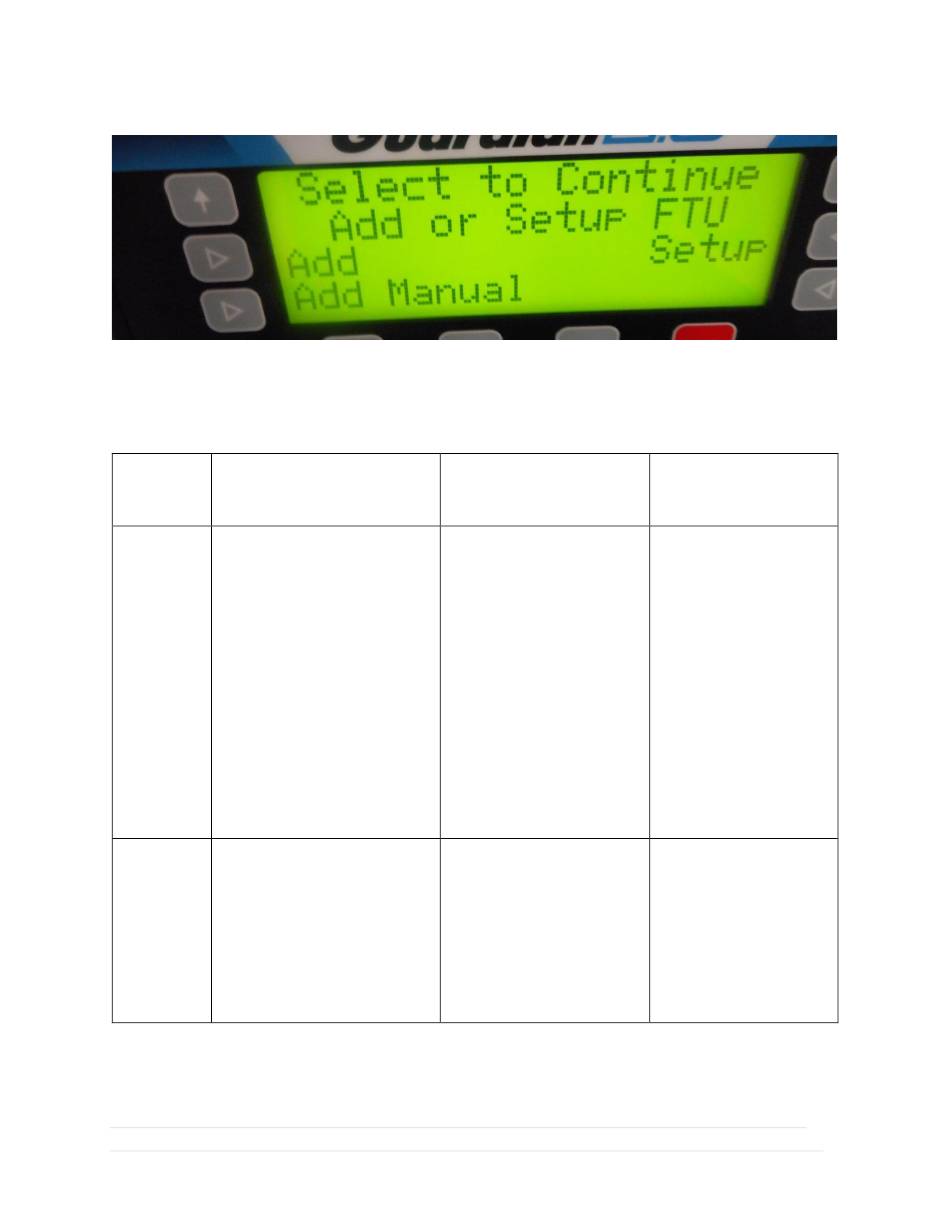

Figure 36: SCREEN: ADD MENU
SETUP:
For pairing new (never paired)
FTUs or changing FTU number
Method 1: Scan Method
• Place tag in range of Pallet
ID Reader
• Hold magnet on FTU to
illuminate LED
• Press "Scan"
Method 2: Enter Method
• Type in unit number marked
on tag
• Hold magnet on FTU to
illuminate LED
• Press "Enter"
Method 1: Enter Method
• Type in NEW (user defined)
number to be programed
• Hold magnet on FTU to
illuminate LED
• Press "Enter
Figure 37: ADDING PALLET OPTIONS
ADD:
Adding previously paired
FTU to a second MCU
Method 1: Scan Method
• Place tag in range of
Pallet ID Reader
• Hold magnet on FTU to
illuminate LED
• Press "Scan"
Method 2: Enter Method
• Enter a known FTU
number
• Hold magnet on FTU to
illuminate LED
• Press "Enter"
Method 1: Enter Method
• Type in NEW (user
defined) number to be
programed
• Hold magnet on FTU to
illuminate LED
• Press "Enter
********** ****See Vektek.com>Products>Maintenance
ADD MANUAL:
Adding manual tags
Method 1: Scan
Method
• Place manual tag in
range of Pallet ID
Reader
• Press "Scan"
Method 2: Enter
Method
• Type in unit number
marked on tag
• Press "Enter"
