Step 2: Route the 5 Pin M12 communication cable to the Master Control unit.
Step 3: With the Pallet ID Reader mounted, connect the female end of the shielded 5 Pin M12
communication cable to the port in the side.
Step 4: Plug the Male M12 Connector into the M12 communication port on the Master Control Unit.
Any excess cable can be coiled and hidden somewhere along the cable route.
Note: The communication cable should be routed to prevent contact with moving parts
and sharp edges. Also avoiding contact with machine wiring will ensure maximum
performance of the system. Also avoid installing near high interference loads like servo
motors, spindle motors and other RF/electromagnetic field generators. The minimum
bend radius of the cable is 6".
G e n e r a l P r o d u c t R e v . A I A W E C N - 5 5 8 1
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****

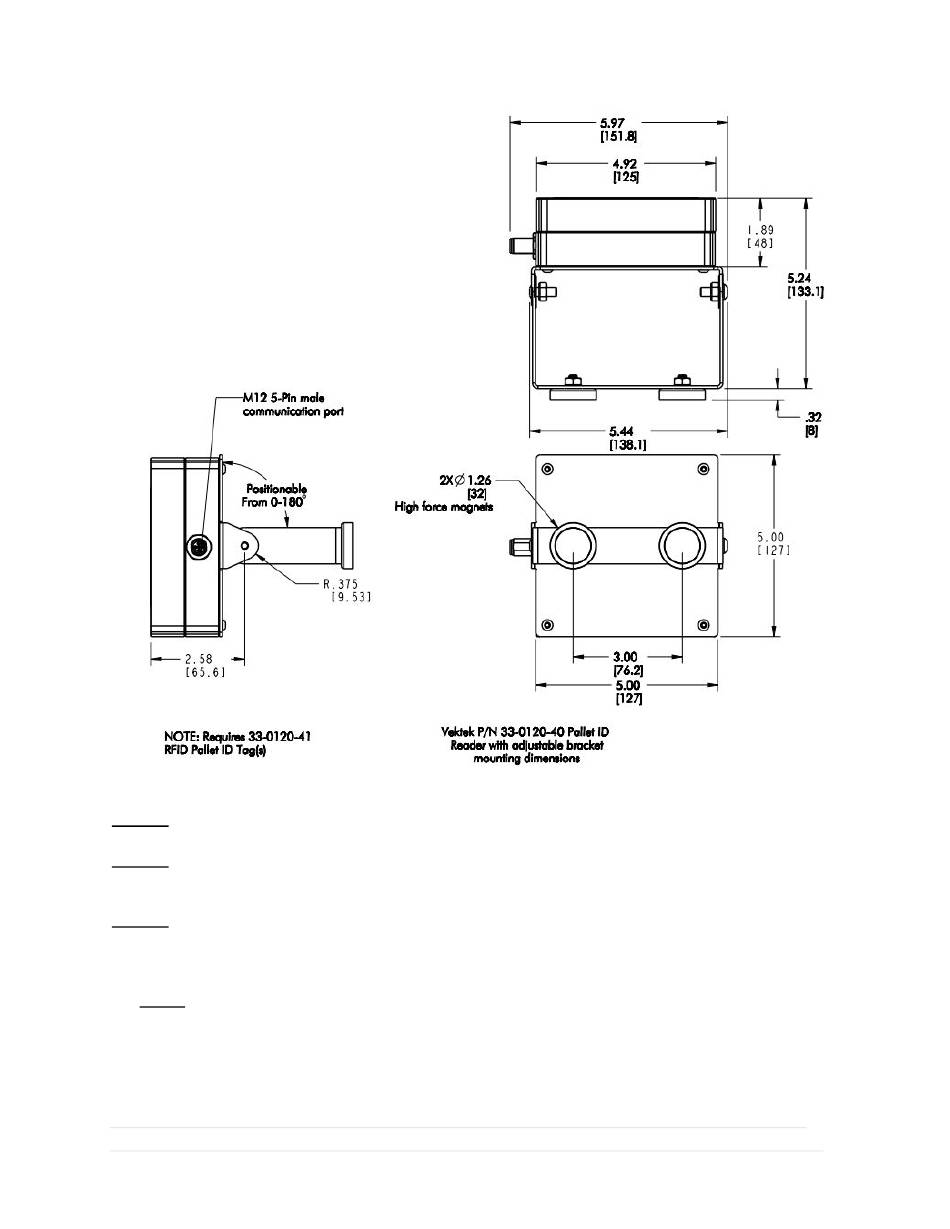

Figure 21: PALLET ID READER MOUNTING DIMENSIONS
********** ****See Vektek.com>Products>Maintenance
