Installation:
Installing the FIXTURE TRANSMITTER UNIT
Note: Shielding is not necessary or allowed. The transmitter is IP 67 rated, and any
metal shielding will interfere with communication.
Step 1: Install the two included CR 2 batteries into the Fixture Transmitter Unit. Reference Figure
Step 2: Mount the transmitter using 2 ea ¼" or 6mm bolts oriented so the M8 connector is readily
72 for more information.
cable will be routed insuring it will not have a bend radius tighter than 6" and that it will
accessible to connect the switch cable. When mounting give consideration to where the
not be in the way of machine movements or operations. Below are mounting dimensions
for the Fixture Transmitter and optional dual or quad splitters.
PL3309 REV. A
IAW ECN-5581
PAGE 13 of 44
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****

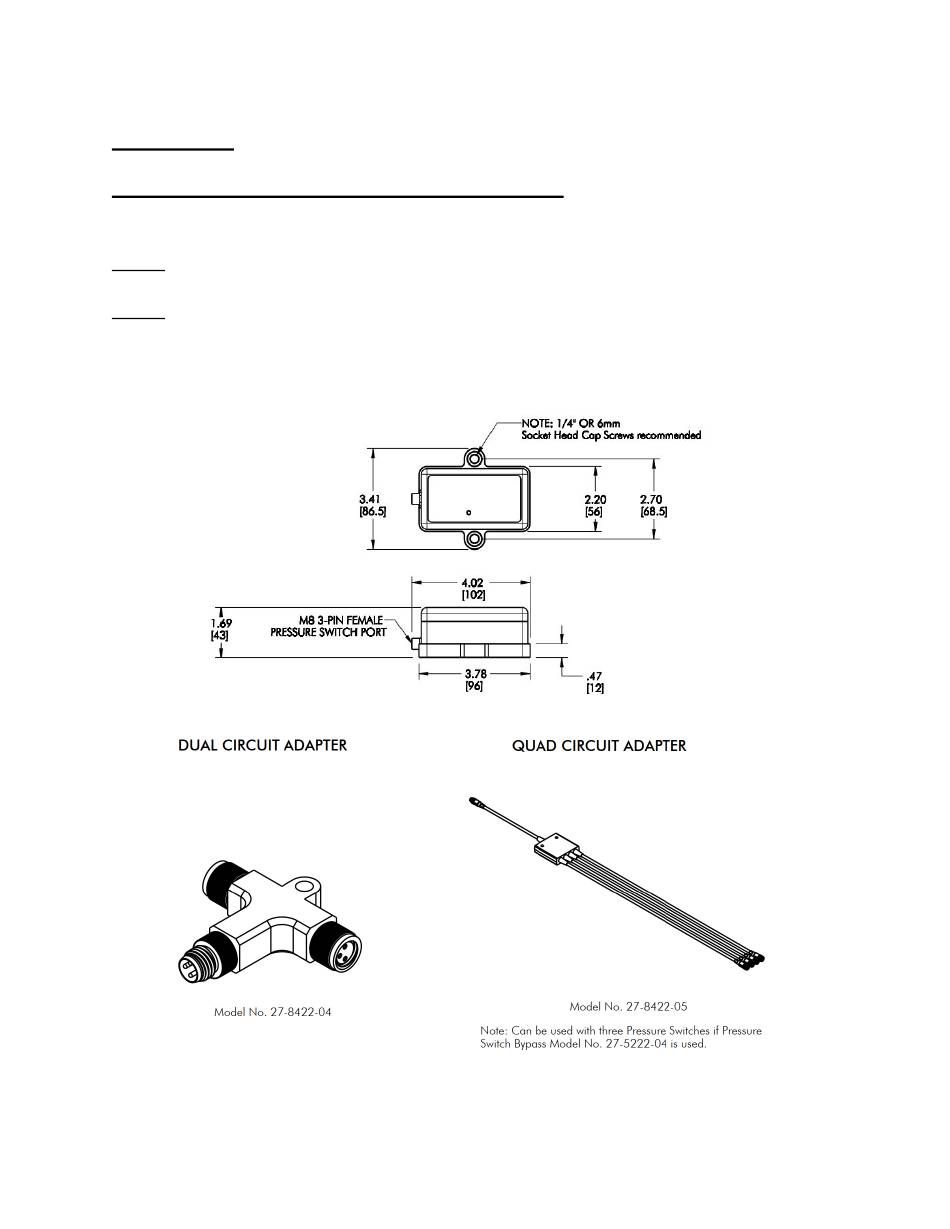

Figure 14: Fixture Transmitter 33-0120-30 mounting dimensions
Figure 15: THE FAMILY OF SPLITTERS
********** ****See Vektek.com>Products>Maintenance
