Vektek Guardian™ 2.0 User's Guide
Pallet ID Reader Installation
Mounting Considerations
The Pallet ID Reader would typically be mounted within the machining enclosure with line
of sight to the fixture without obstruction by machine operation, spindle park location or being
directly subjected to high pressure coolant spray. See the illustrations below.

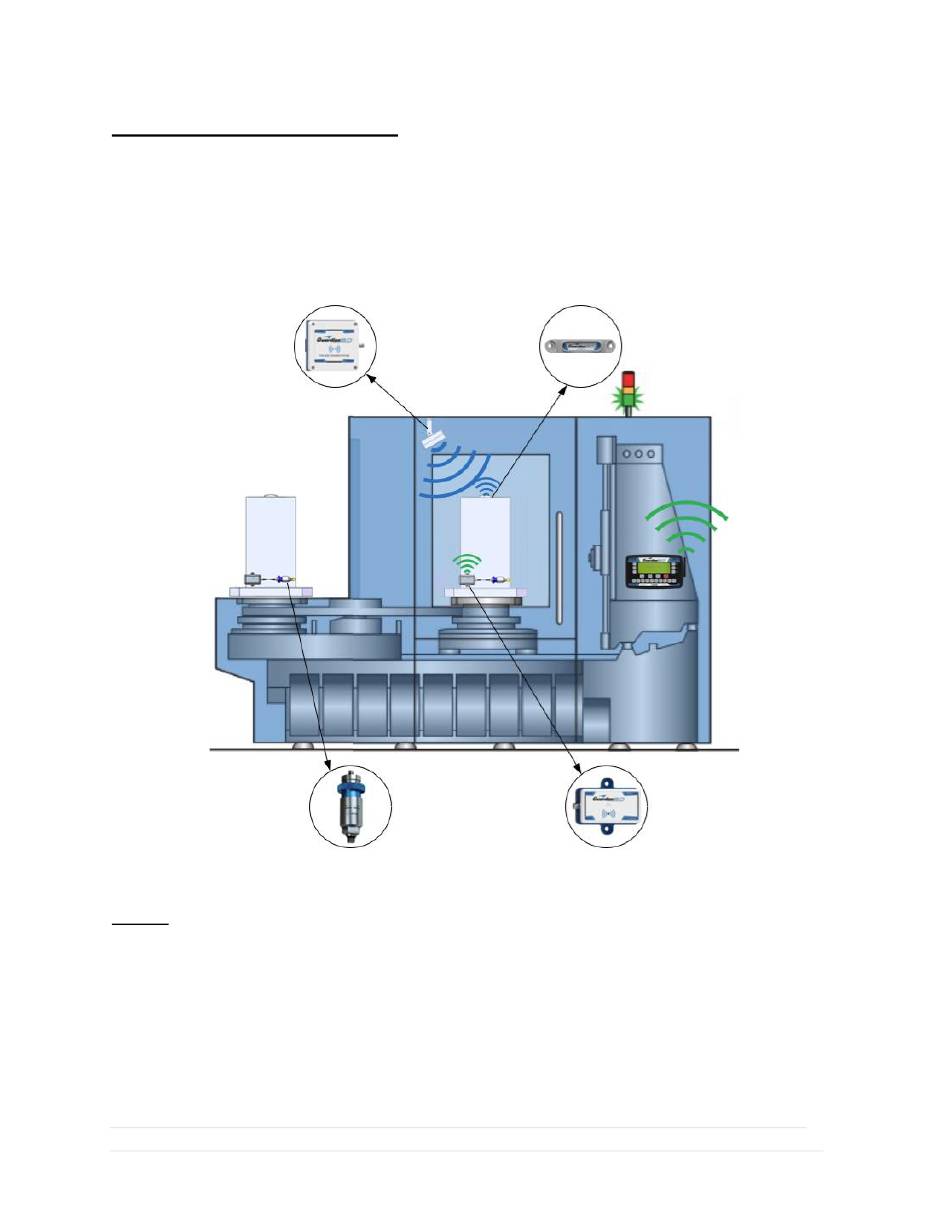

Figure 20: PALLET ID READER MOUNTING LOCATION SUGGESTIONS
Step 1: Use the bracket provided or direct mount the Pallet ID Reader. The mounting dimensions
are on the next page. The Pallet ID Reader should be mounted such that when Pallet ID Tags are to
be monitored, they are within 6 ft at all times. The dimensions are shown in Figure 21.
Note: The label on the front of the Pallet ID Reader should face the monitor area where the
Pallet ID Tag will be located. The Reading Field is broadcast from the face of the Pallet ID
Reader in the direction indicated on the label and best practice is for the Pallet ID Reader to
be in direct line of sight within 6 ft of the Pallet ID Tag being read.
