Vektek Guardian™ 2.0 User's Guide

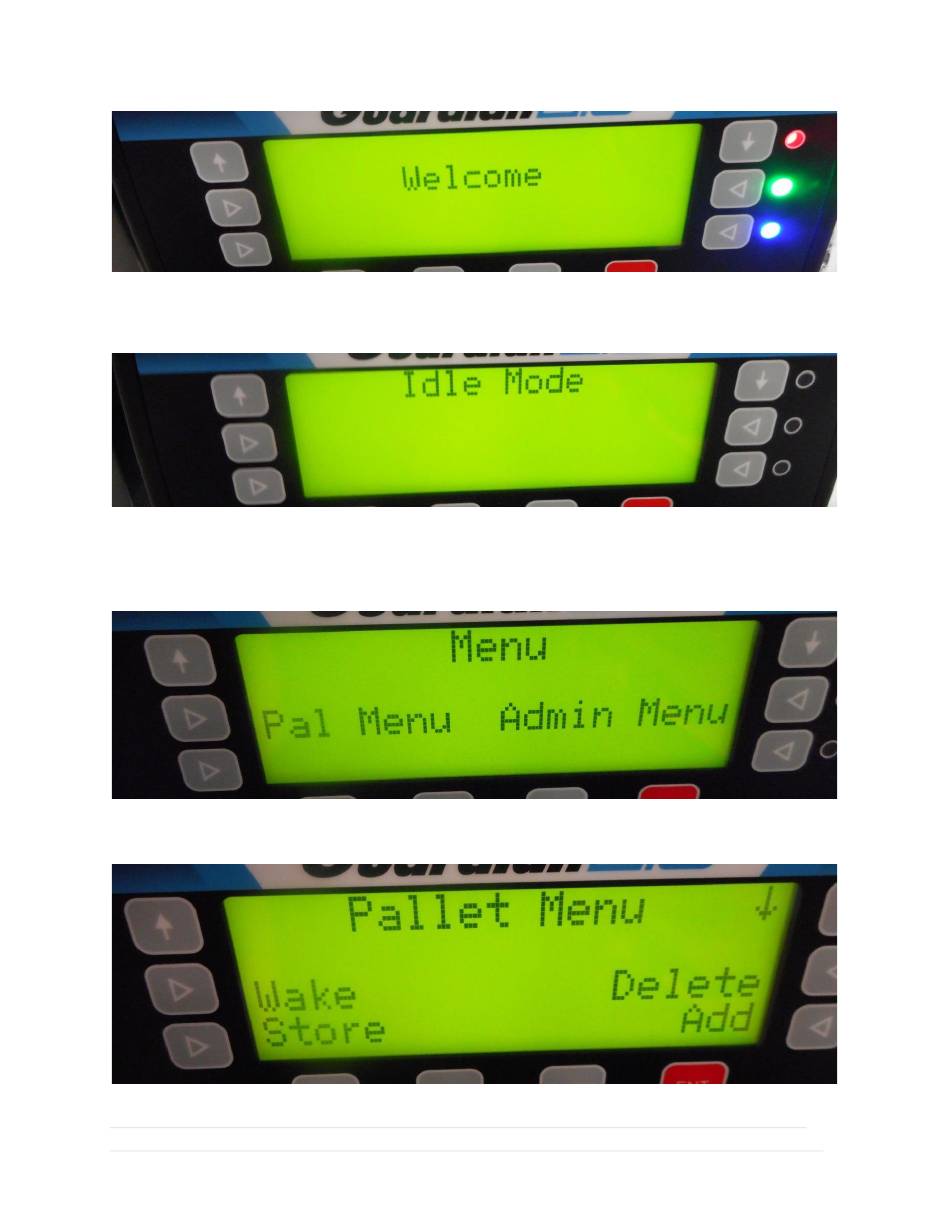

Figure 32: SCREEN: WELCOME
After Startup you will be taken to the "Idle Mode" Menu. This menu is described in detail in the "Idle
Mode Menu" section below. If you are starting your system for the first time, or after a factory reset,
the idle screen will likely be blank like the picture below.
Figure 33: SCREEN: IDLE MODE
Pallet Menu
The pallet menu on the MCU is where a user can store, wake, add, or delete pallets in the MCU
memory. To access this menu press the "SETUP" button. That will display the "Menu" Page.
Figure 34: SCREEN: MAIN MENU
From the menu page pressing the arrow button next to "Pal Menu", will take you to the Pallet Menu.
The pallet menu looks like this.
Figure 35: SCREEN: PALLET MENU
G e n e r a l P r o d u c t R e v . A I A W E C N - 5 5 8 1
P a g e | 26 of 44
