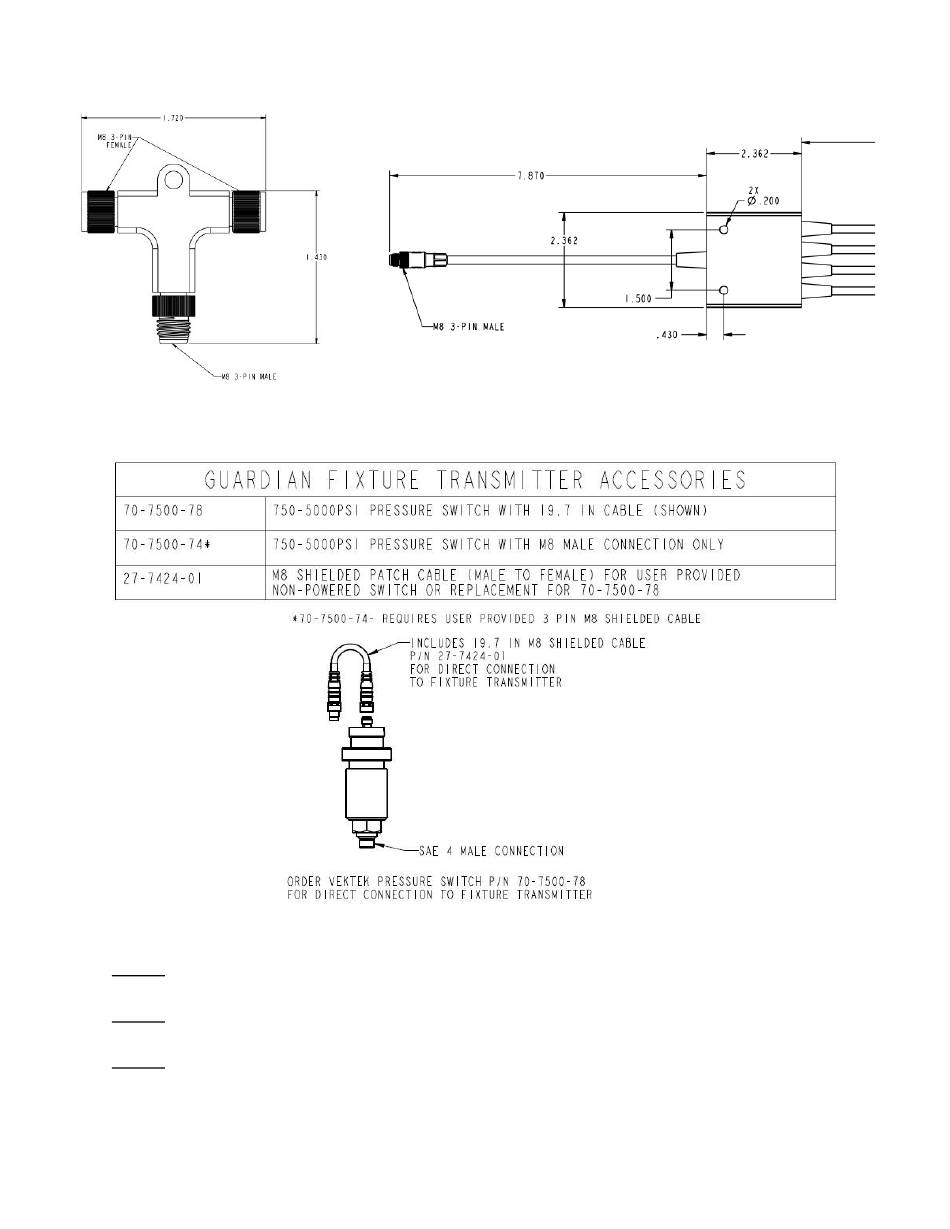

Figure 17: QUAD SPLITTER MOUNTING DIMENSIONS
Figure 16: DUAL SPLITTER
MOUNTING DIMENSIONS
Figure 18: PRESSURE SWITCH OPTIONS
Step 3: Connect the Pressure Switch to the intended circuit you wish to monitor.
Step 4: Connect the switch cable to the transmitter.
Step 5: Set pressure switch using the instructions in the next section.
PL3309 REV. A
IAW ECN-5581
PAGE 14 of 44
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****
********** ****See Vektek.com>Products>Maintenance
