Vektek Guardian™ 2.0 User's Guide
Delete a Pallet
If a pallet is no longer needed in the MCU memory. You can delete it by following these procedures.
1. Press the arrow key by "Delete" from the pallet Menu. This brings you to the "Delete Pal" menu.
Press the arrow key next to the pallet you want Deleted and the system will communicate with
the FTU and remove it from memory. If needed, deleted Pallets would need to be readded using
the "Adding a Pallet" procedures above.
Idle Mode Menu
The "Idle Mode" Menu acts like the home screen for the Guardian 2.0 System. This is the first
screen you should see once the MCU is fired up and it allows you to check on the status of every pallet
that has been added to the system. Here is an example where the Pallet in the No.1 position has no
pressure and the Pallet in the No.3 position has pressure.
G e n e r a l P r o d u c t R e v . A I A W E C N - 5 5 8 1
© Copyright 2025 by Vektek, LLC
@ Copyright 1986-2025 by Vektek LLC****

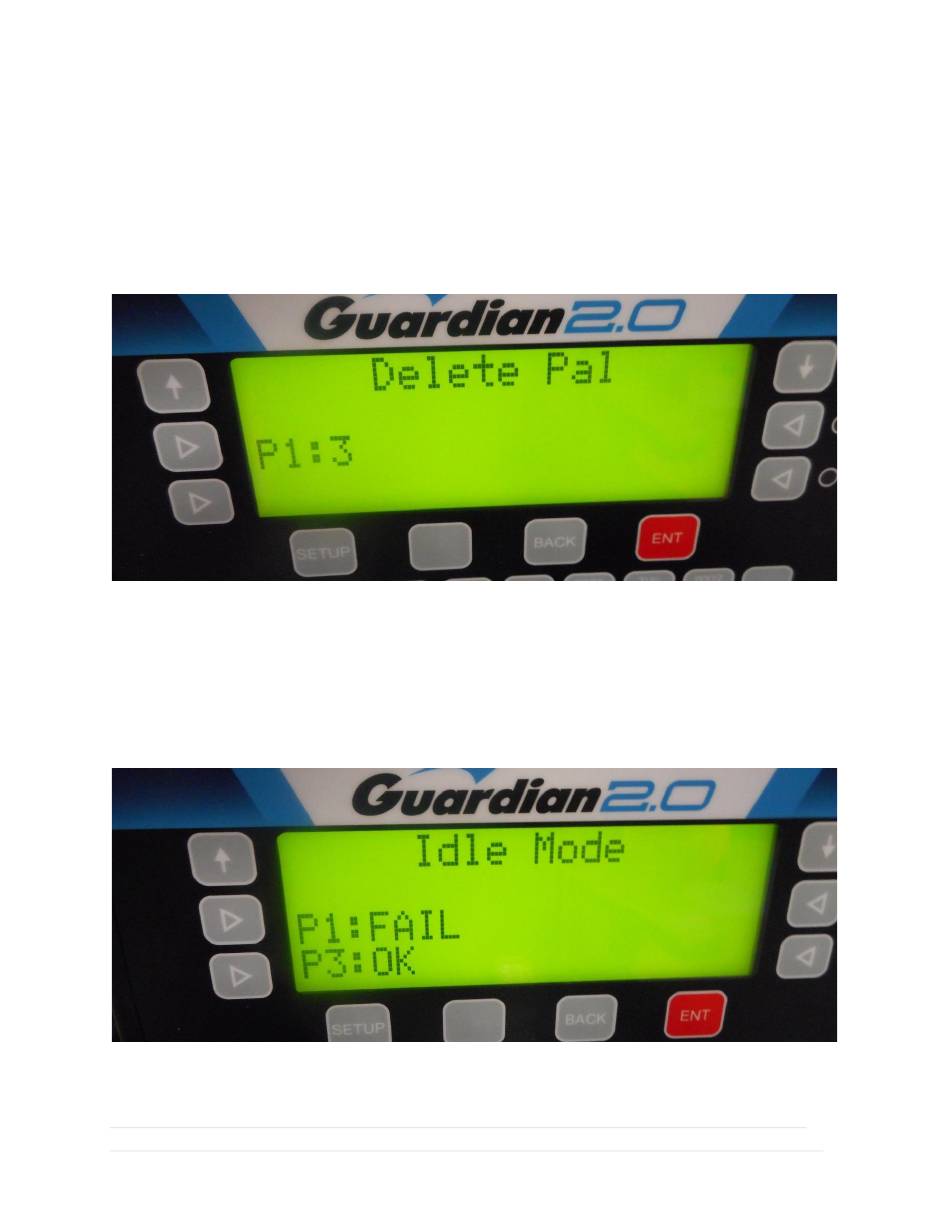

Figure 46: SCREEN: DELETE PALLET MENU
Figure 47: SCREEN: IDLE MODE MENU TWO PALLETS
