Rigol DG1000 Installation Manual

I nstallation Guide
RIGOL
This rack mount kit is designed to mount
waveform generator into a 19-inch cabinet that conforms to the Electronic I ndustries
Association (EI A) standard.

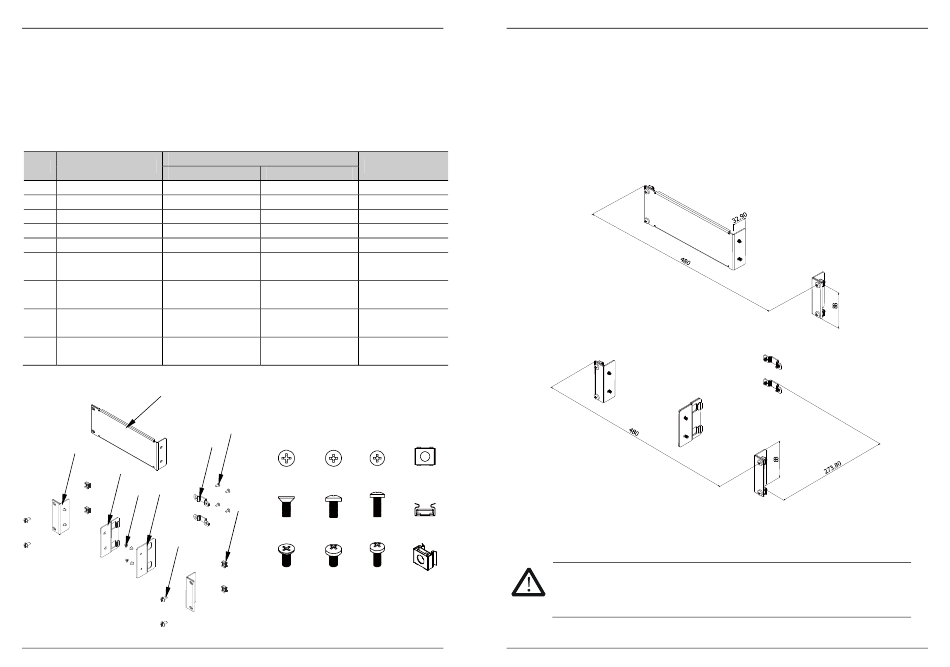

Kit Part Checklist
No. Name
RM-1-DG1000Z
1 Front Plate
2 Fastener
3 Connecting Plate A
4 Connecting Plate B
5 Retaining Bracket
M4 Countersunk Flat
6
Head Screw
7 M4 Pan Head Screw
8 M6 Pan Head Screw
9 M6 Nut
[ 1]
Note : RM-1-DG1000Z is designed for installing a single instrument, and RM-2-DG1000Z for two
1
instruments.
2
4
3
6
8
www.valuetronics.com
DG1000 Rack Mount Kit
RIGOL DG1000Z series function/ arbitrary
Qty.
Description
[ 1] [ 1]
RM-2-DG1000Z
1 None
1 2
None 1
None 1
None 2
M4x10 Phillips Pan
None 4
Head Screw
M4x8 Phillips Pan
4 8
Head Screw
M6x16 Phillips Pan
4 4
Head Screw
M6 Square Lock
4 4
7
5
9
6 7 8
I nstallation Guide
RIGOL
I nstallation Tool
The PH2 Phillips screwdriver and T20 Phillips screwdriver are recommended.
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.

The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 2U (88mm).

The depth of the cabinet should be at least 400mm.
The dimensions of the rack are as shown below.
--
--
--
--
--
Cage Nut
I nstallation Procedures
CAUTI ON
9
Only authorized operators are allowed to perform the installation. I mproper
installation might cause damage to the instrument or an installation failure.
1
RM-1-DG1000Z Unit: mm
RM-2-DG1000Z Unit: mm
RIGOL
2
