Rigol RM-2-DP700 Installation Manual

Installation Guide
RIGOL

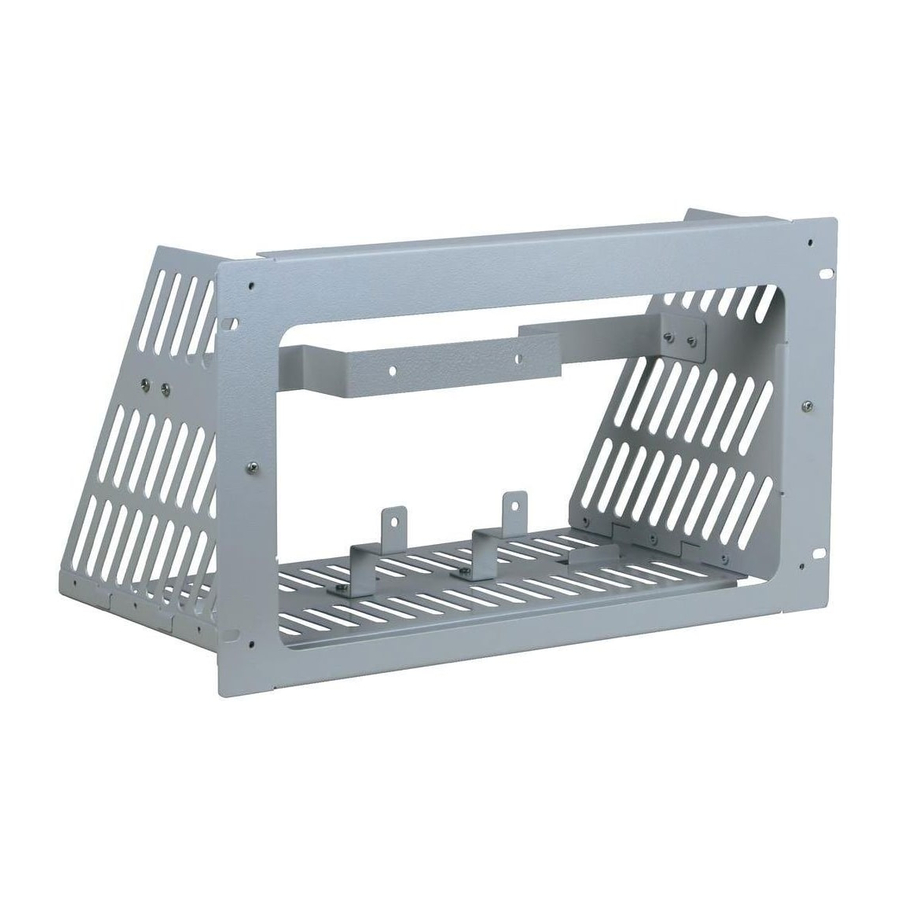

This rack mount kit (RM-2-DP700) is designed to mount two RIGOL DP700 series
programmable linear DC power supplies into a 19-inch cabinet that conforms to the
Electronic Industries Association (EIA) standard.

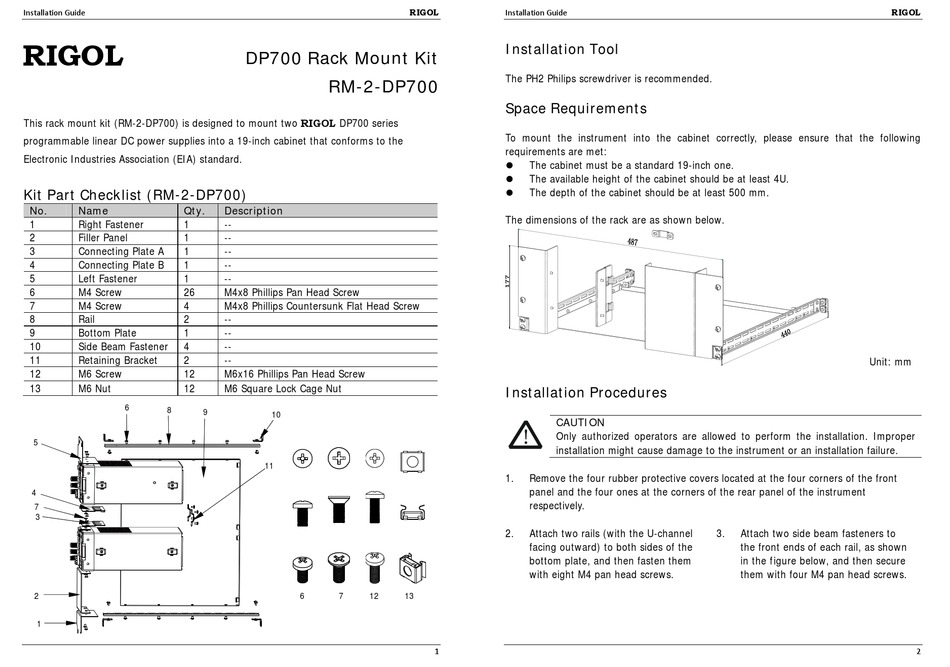

Kit Part Checklist (RM-2-DP700)
No. Name Qty.
1 Right Fastener 1
2 Filler Panel 1
3 Connecting Plate A 1
4 Connecting Plate B 1
5 Left Fastener 1
6 M4 Screw 26
7 M4 Screw 4
8 Rail 2
9 Bottom Plate 1
10 Side Beam Fastener 4
11 Retaining Bracket 2
12 M6 Screw 12
13 M6 Nut 12
6
8
5
4
7
3
2
1
DP700 Rack Mount Kit
RM-2-DP700
Description
--
--
--
--
--
M4x8 Phillips Pan Head Screw
M4x8 Phillips Countersunk Flat Head Screw
--
--
--
--
M6x16 Phillips Pan Head Screw
M6 Square Lock Cage Nut
9
10
11
6 7 12
RIGOL
Installation Guide
Installation Tool
The PH2 Philips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met:
The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 4U.

The depth of the cabinet should be at least 500 mm.

The dimensions of the rack are as shown below.

Installation Procedures

CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
1. Remove the four rubber protective covers located at the four corners of the front
panel and the four ones at the corners of the rear panel of the instrument
respectively.
2. Attach two rails (with the U-channel
facing outward) to both sides of the
bottom plate, and then fasten them
with eight M4 pan head screws.
13
1
RIGOL
Unit: mm
3. Attach two side beam fasteners to
the front ends of each rail, as shown
in the figure below, and then secure
them with four M4 pan head screws.
2
