Installation Guide
RIGOL

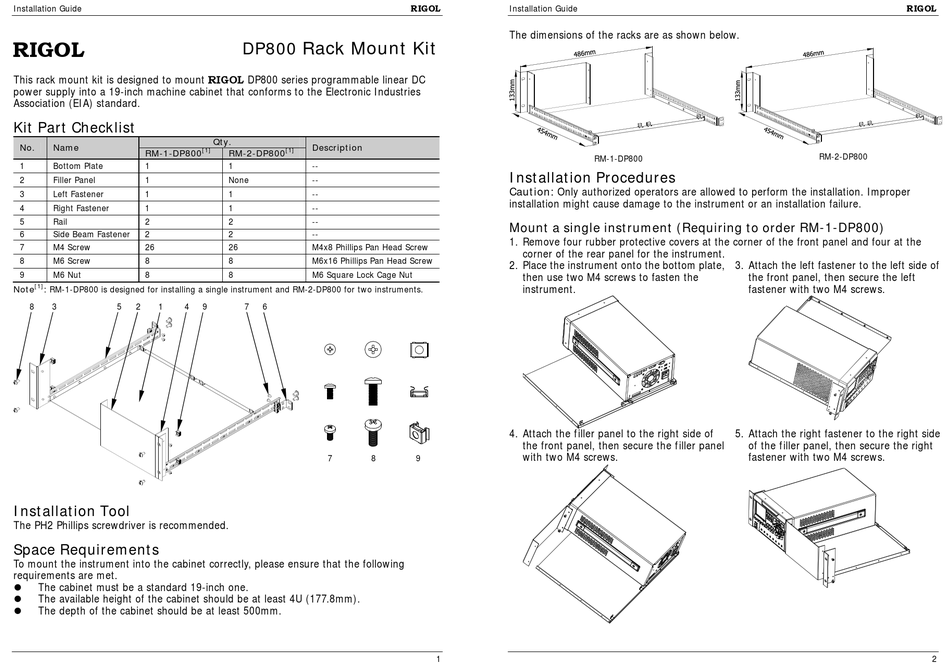

This rack mount kit is designed to mount RIGOL DP800 series programmable linear DC
power supply into a 19-inch machine cabinet that conforms to the Electronic Industries
Association (EIA) standard.

Kit Part Checklist

No.
Name
RM-1-DP800
1
Bottom Plate
1
2
Filler Panel
1
3
Left Fastener
1
4
Right Fastener
1
5
Rail
2
6
Side Beam Fastener
2
7
M4 Screw
26
8
M6 Screw
8
9
M6 Nut
8
[1]
Note
: RM-1-DP800 is designed for installing a single instrument and RM-2-DP800 for two instruments.
8
3
5
2
1
4

Installation Tool

The PH2 Phillips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 4U (177.8mm).
The depth of the cabinet should be at least 500mm.

Rack Mount Kit

DP800
Qty.
Description
[1]
[1]
RM-2-DP800
1
--
None
--
1
--
1
--
2
--
2
--
26
M4x8 Phillips Pan Head Screw
8
M6x16 Phillips Pan Head Screw
8
M6 Square Lock Cage Nut
9
7
6
7
8
Installation Guide
RIGOL
The dimensions of the racks are as shown below.

Installation Procedures

Caution: Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.

Mount a single instrument (Requiring to order RM-1-DP800)

1. Remove four rubber protective covers at the corner of the front panel and four at the
corner of the rear panel for the instrument.
2. Place the instrument onto the bottom plate,
then use two M4 screws to fasten the
instrument.
4. Attach the filler panel to the right side of
the front panel, then secure the filler panel
with two M4 screws.
9
1
RM-1-DP800
3. Attach the left fastener to the left side of
the front panel, then secure the left
fastener with two M4 screws.
5. Attach the right fastener to the right side
of the filler panel, then secure the right
fastener with two M4 screws.
RIGOL
RM-2-DP800
2
