Rigol MSO5000 Series Installation Manual

Installation Guide
RIGOL

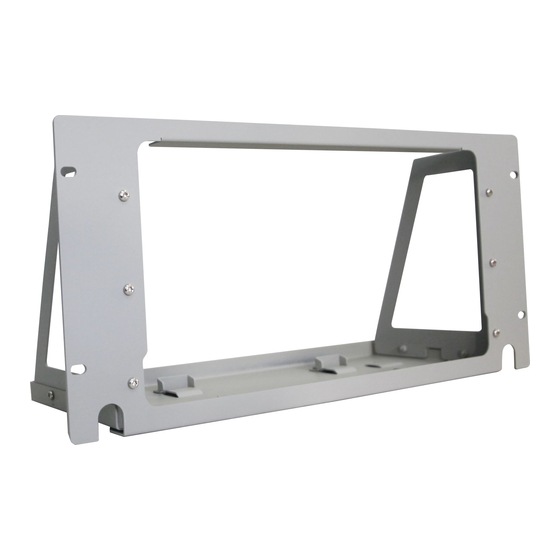

This rack mount kit is designed to mount RIGOL MSO5000 Series Digital Oscilloscope into a
standard 19-inch cabinet that conforms to the Electronic Industries Association (EIA)
standard.

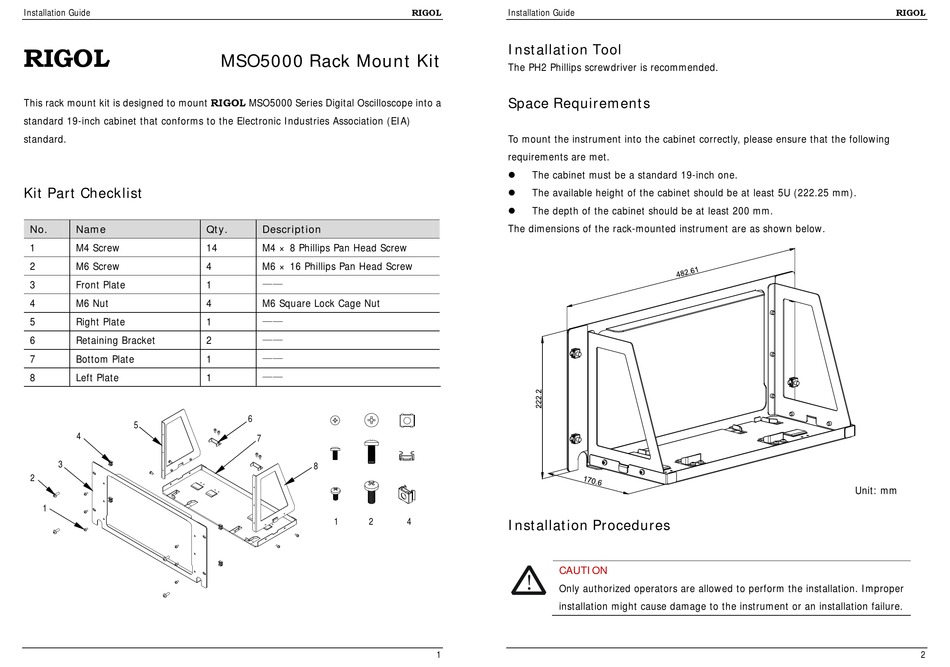

Kit Part Checklist

No. Name
1 M4 Screw
2 M6 Screw
3 Front Plate
4 M6 Nut
5 Right Plate
6 Retaining Bracket
7 Bottom Plate
8 Left Plate
5
4
3
2
1
MSO5000 Rack Mount Kit
Qty. Description
14 M4 × 8 Phillips Pan Head Screw
4 M6 × 16 Phillips Pan Head Screw
1
——
4 M6 Square Lock Cage Nut
1
——
2
——
1
——
1
——
6
7
8
1 2
RIGOL Installation Guide

Installation Tool

The PH2 Phillips screwdriver is recommended.

Space Requirements

To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.

The available height of the cabinet should be at least 5U (222.25 mm).

The depth of the cabinet should be at least 200 mm.

The dimensions of the rack-mounted instrument are as shown below.
4

Installation Procedures

CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
1
RIGOL
Unit: mm
2
