RIGOL

This rack mount kit is designed to mount RIGOL MSO4000/DS4000 series digital

oscilloscope into a 19-inch cabinet that conforms to the Electronic Industries Association

(EIA) standard.

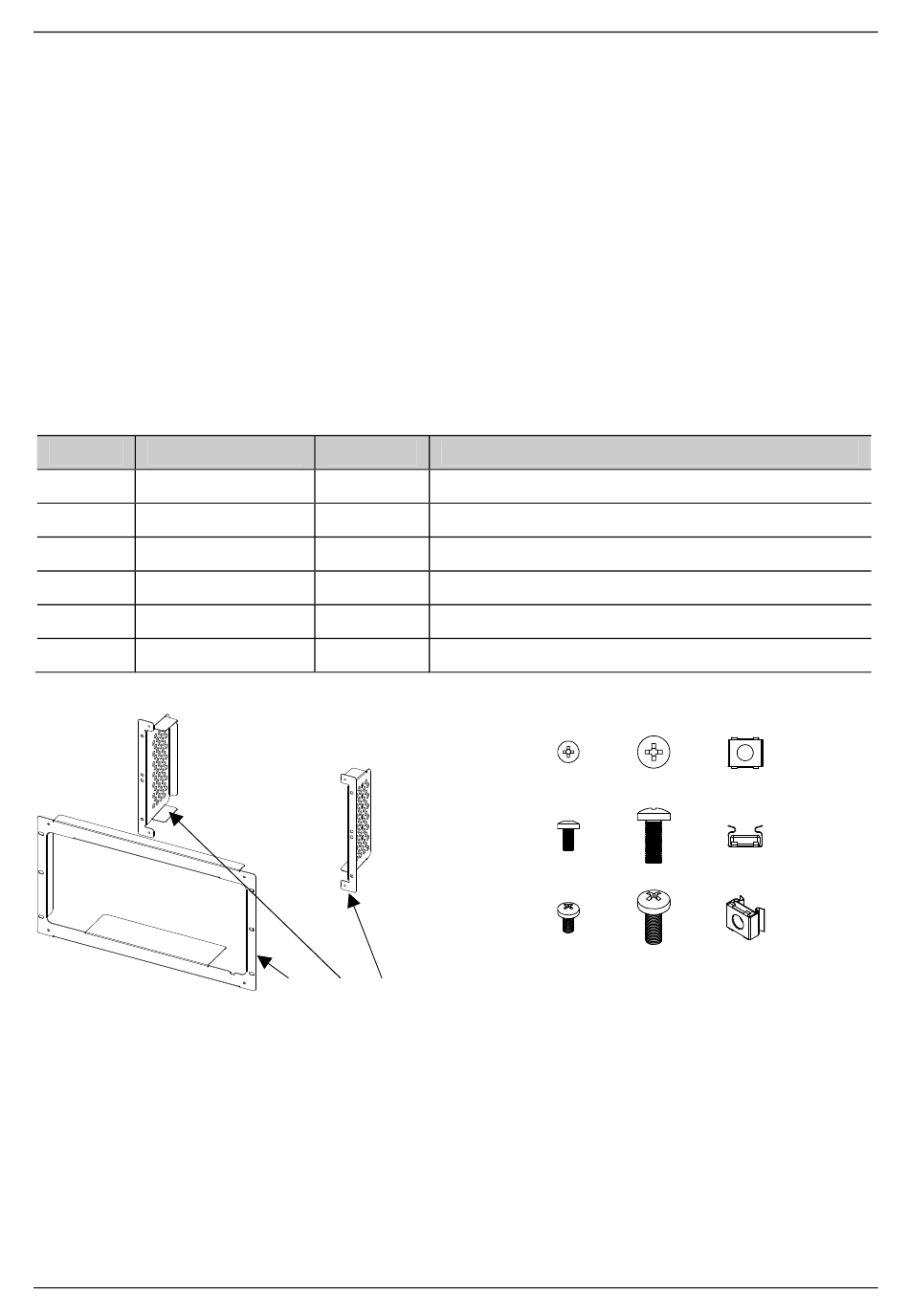

Kit Part Checklist

No.

Name

Front Plate

Right Plate

Left Plate

M4 Screw

M6 Screw

M6 Nut

Installation Tool

The PH2 Philips screwdriver is recommended.

Qty.

Description

M4x8 Phillips Pan Head Screw

M6x16 Phillips Pan Head Screw

M6 Square Lock Cage Nut

Rack Mount Kit

MSO4000/DS4000

RIGOL

Table of Contents

Do you have a question about the MSO4000 and is the answer not in the manual?

Page 1 Installation Guide RIGOL RIGOL Rack Mount Kit MSO4000/DS4000 This rack mount kit is designed to mount RIGOL MSO4000/DS4000 series digital oscilloscope into a 19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard. Kit Part Checklist Name Qty. Description...
Page 2 Installation Guide RIGOL Space Requirements To mount the instrument into the cabinet correctly, please ensure that the following requirements are met. The cabinet must be a standard 19-inch one.  The available height of the cabinet should be at least 6U (266.7 mm).
Page 3 Installation Guide RIGOL 1． Install the left plate: Attach the left plate to the left edge of the front plate, then fasten them with two M4 screws. 2． Place the instrument: Place the instrument into the frame set up by the front plate and the left plate.
Page 4 Installation Guide RIGOL Space Requirements To mount the instrument into the cabinet correctly, please ensure that the following requirements are met. The cabinet must be a standard 19-inch one.  The available height of the cabinet should be at least 6U (266.7 mm).
