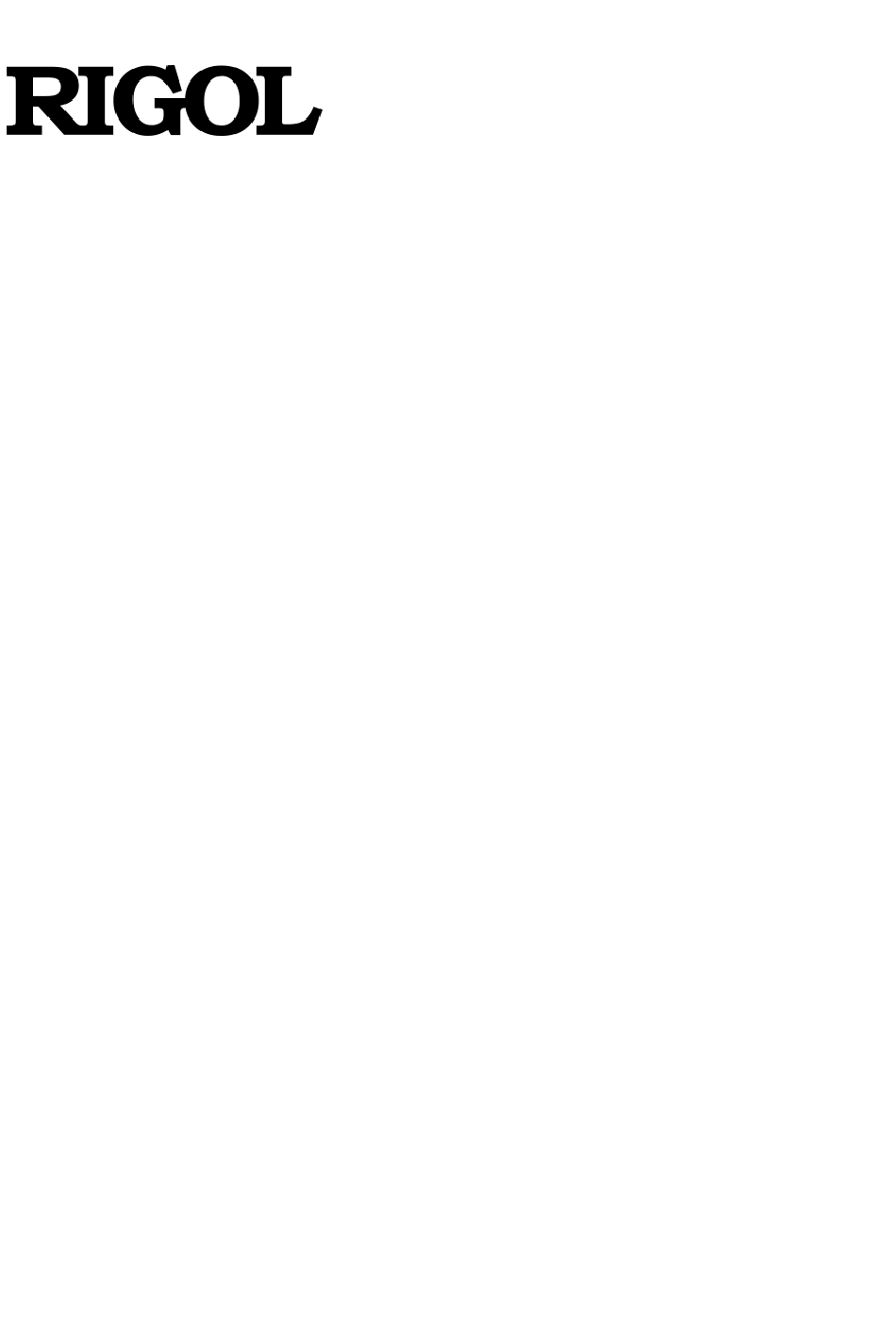

- Page 1 Rack Mount Kit DS8000-R Series Rack Mount Kit RM1011&RM1012 Aug. 2020 RIGOL TECHNOLOGIES CO., LTD.
-
Page 2: Guaranty And Declaration
Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials. - Page 3 Installation Guide RIGOL E-mail: service@rigol.com Website: www.rigol.com...
-
Page 4: Safety Notices And Symbols
Installation Guide RIGOL Safety Notices and Symbols Safety Notices in this Manual: WARNING Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death. CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data. -
Page 5: Product Overview
RIGOL Product Overview This rack mount kit (RM1011 & RM1012) is designed to mount RIGOL DS8000-R series digital oscilloscope into a 19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard. RM1011 is designed for installing a single instrument, and RM1012 for two instruments. -
Page 6: Installation Tool
Installation Guide RIGOL Installation Tool The PH2 Phillips screwdriver, T10 torx screwdriver, and T20 torx screwdriver are recommended. -
Page 7: Space Requirements
Installation Guide RIGOL Space Requirements To mount the instrument into the cabinet correctly, please ensure that the following requirements are met. The cabinet must be a standard 19-inch one. The available height of the cabinet should be at least 1U (44 mm). -
Page 8: Installation Procedures
Installation Guide RIGOL Installation Procedures CAUTION Only authorized operators are allowed to perform the installation. Improper installation might cause damage to the instrument or an installation failure. Remove the four pads. Remove three M3x6 torx flat head countersunk screws that secure the hanging ear of the instrument at the right side of the front panel. - Page 9 Installation Guide RIGOL Use two M4x8 torx pan head screws to fasten the handle to the front bezel. Attach the front bezel to the right side of the front panel, then secure the bezel by using three M3x6 torx flat head countersunk screws.
- Page 10 Installation Guide RIGOL Mount the assembled instrument and rack into a standard 19-inch cabinet by using four M6x16 phillips pan head screws and four M6 square lock cage nuts. Use two M6x16 phillips pan head screws and two M6 square lock cage nuts to secure the rear hanging ear to the cabinet.
- Page 11 Installation Guide RIGOL Use two M6x16 phillips pan head screws and two M6 square lock cage nuts to secure the rear bezel to the rack. Then use four M4x8 phillips pan head screws to secure the right side beam to the rear bezel.
- Page 12 Installation Guide RIGOL Rack Mount Installation for Two Instruments Kit Part Checklist Table 3 RM1012 Part List Name Qty. Description Rear Hanging Ear Left Side Beam Right Side Beam Connecting Plate M4 Screw M4x8 Phillips Pan Head Screw M6 Screw...
- Page 13 Installation Guide RIGOL Installation Tool The PH2 Phillips screwdriver and T10 torx screwdriver are recommended.
- Page 14 Installation Guide RIGOL Space Requirements To mount the instrument into the cabinet correctly, please ensure that the following requirements are met. The cabinet must be a standard 19-inch one. The available height of the cabinet should be at least 1U (44 mm).
- Page 15 Installation Guide RIGOL Installation Procedures CAUTION Only authorized operators are allowed to perform the installation. Improper installation might cause damage to the instrument or an installation failure. Remove the four pads. Remove six M3x6 torx flat head countersunk screws that secure the two hanging ears at a different side of each instrument.
- Page 16 Installation Guide RIGOL Using four connecting plates to fasten the two instruments with eight existing M3x6 torx flat head countersunk screws on the instrument. Secure the left side beam to the left side of the rear panel of Instrument A; and secure the right side beam to the right side of the rear panel of Instrument B by using the existing M3x6 torx flat head countersunk screws on the instrument.
- Page 17 Installation Guide RIGOL Mount the assembled instrument and rack into a standard 19-inch cabinet by using four M6x16 phillips pan head screws and four M6 square lock cage nuts. Use four M6x16 phillips pan head screws and four M6 square lock cage nuts to secure the two rear hanging ears to the rack.
- Page 18 Installation Guide RIGOL Instrument A Instrument B The following figure shows the front view of the successful rack mount installation for two instruments. -End-...
-
Page 19: Working Environment
Installation Guide RIGOL Usage Requirement for Rack Mount Installation into the Cabinet Working Environment Temperature Operating: -40℃ to +30℃ Non-operating: -50℃ to +70℃ Humidity Operating: Below +30℃: ≤90%RH (without condensation) +30℃ to +40℃: ≤75%RH (without condensation) +40℃ to +50℃: ≤45%RH (without condensation) Non-operating: ... -
Page 20: Cabinet Diagram
Installation Guide RIGOL Cabinet Diagram...
