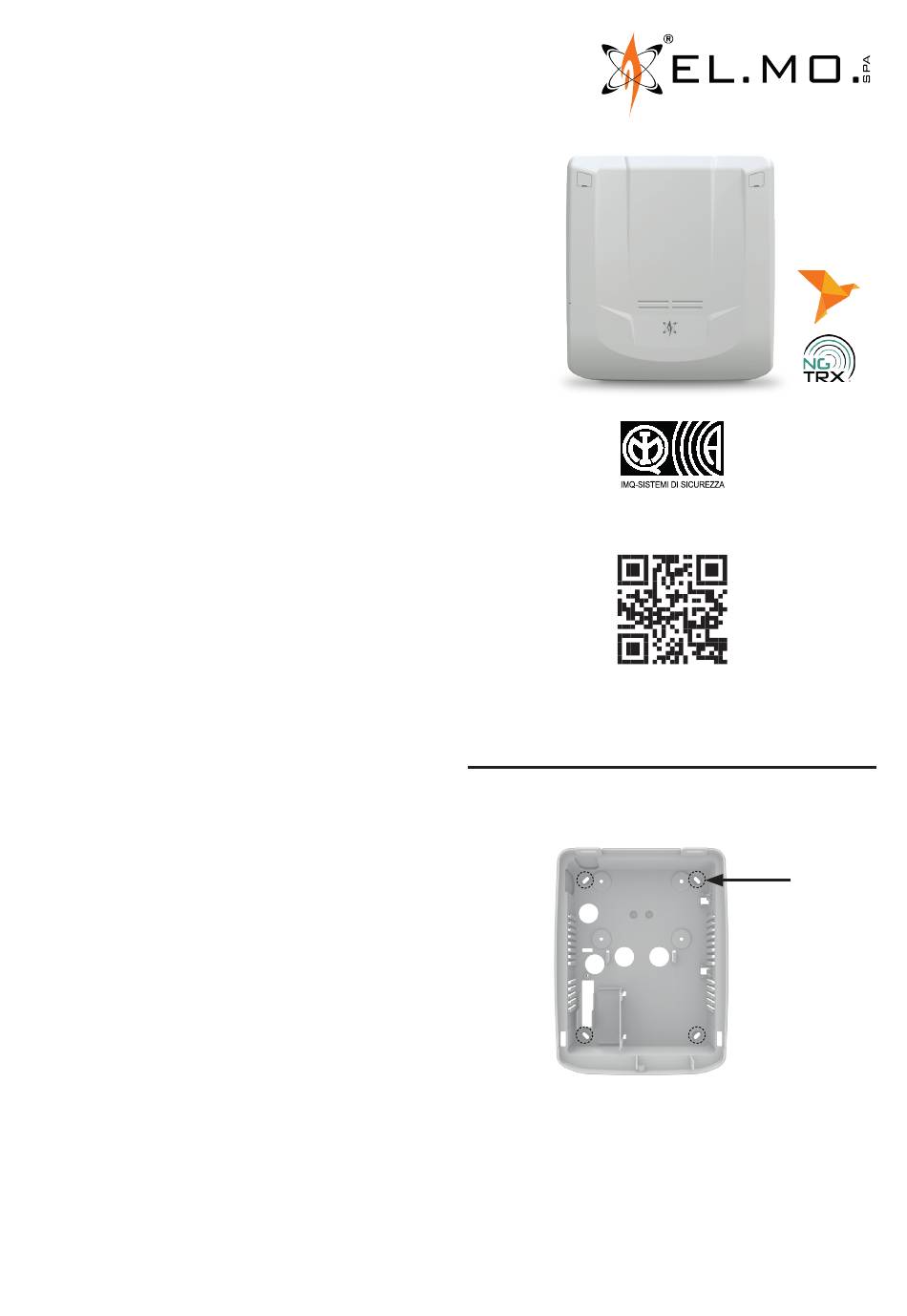

QUICK GUIDE
PREGIO500
Multi-functional hybrid control unit
for intrusion detection systems
PREGIO500 is a multi-functional hybrid control unit that
supports both wired and wireless devices.
Main characteristics:
• Management of 16 sectors grouped in areas;
• Management of 8 on-board zones (16 with split fun-
ction, up to 24 using concentrators), 24 outputs, 32
users, up to 16 control devices;
• Input and outputs on board: system tamper input, si-
ren power supply/control outputs, sensors 12V power
output, programmable relay output;
• Optional modules supported: MDWIFIH, MDVOICE64,
MDGSMI or MDPSTN;
• Supports all EL.MO. serial devices on ULTRABUS in-
terface;
• Compatible with NG-TRX technology using GATE-
WAY2K;
• Connection to e-Connect using MDGSMI or MDWIFIH
modules.
This Quick Guide and the relevant User Manual are
supplied with PREGIO500 control unit.
PREGIO500 technical and programming manual are
available for download at www.elmospa.com (easy
site registration required): the site can be accessed
using the QR Code supplied in this manual.
This quick guide explains briefly how to mount and con-
figure PREGIO500 control unit. We recommend to refer
to technical and programming manuals for complete
details on such operations.
Contents of this quick guide:
1. Installation
2. Putting into Service
Use menu at keypad
¬
Use BrowserOne software
¬
3. Operating Mode
Arm/disarm the system
¬
Perform a system test
¬
DOWNLOAD TECHNICAL DOCUMENTATION
bit.ly/2PtfBbq
1. INSTALLATION
for details please see: TECHNICAL MANUAL
¬
- Unscrew the screw on the bottom of the case and re-
move unit cover.
A B
- Mark on the wall the fixing points of the unit base. Fix
it with screws and dowels (supplied).
- Feed mains cable through A hole, then system cables
through B and C holes. Make sure all cables are not
powered.
1
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREGIO500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for El.Mo PREGIO500

  • Page 1 QUICK GUIDE PREGIO500 Multi-functional hybrid control unit for intrusion detection systems PREGIO500 is a multi-functional hybrid control unit that supports both wired and wireless devices. Main characteristics: • Management of 16 sectors grouped in areas; • Management of 8 on-board zones (16 with split fun- ction, up to 24 using concentrators), 24 outputs, 32 users, up to 16 control devices;...
  • Page 2: Putting Into Service

    Connect the cable from the power unit to the 2. PUTTING INTO SERVICE on-board J12 input. Use cable ties to keep the cable To configure PREGIO500 unit, use installer menu from in the correct position. keypad and BrowserOne software: the two elements - Place the battery (12V/4,2Ah) into the dedicated area.
  • Page 3: Users Configuration

    - Press OK to enter the menu. Authorize user for code use - Use arrow keys (  and  ) to select the zone, or Go to KEYPAD CODE/SMS menu: digit the zone number. - Press OK to enter the menu. - Press OK to enter the zone menu.
  • Page 4 PREGIO500 requires BrowserOne 2. Non-NG-TRX wireless devices learning (detectors, v3.6.7 or above, and Pregio500 module v2.4.3 or remote controls) to RIVERRF: above. - Go to LEARN RADIO DET. menu.
  • Page 5: Firmware Update

    - Control Devices page: allows to set system keypads, readers, and remote controls. - Serial Devices page: allows to set devices connected e-Connect is a supervision software for EL.MO. intrusion over serial line. detection systems that allows to control and manage - Radio Sirens page: allows to set system radio sirens.
  • Page 6: Operating Mode

    3. OPERATING MODE • “Partial arming 2” (D): arms sectors authorized but not the proposed ones. 3.1 Arming mode for details please see USER MANUAL ¬ 3.2  System disarming The fastest arming mode allows to arm sectors propo- for details please see USER MANUAL ¬...
  • Page 7: Eu Declaration Of Conformity

    - Press Stop to exit outputs test. Press  key to go 4. EU DECLARATION OF CONFORMITY to the following step. • DIALLER TEST: - Press OK. The dialler will be activated and the message TEST CALL will appear. The product complies with the current European EMC and - Press OK again to start the test.
  • Page 8: General Warnings

    The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA | Via Pontarola, 70 | 35011 Campodarsego (PD) - IT Tel. +39.049.9203333 | Fax +39.049.9200306 | Help Desk +39.049.9200426 | www.elmospa.com | international@elmospa.com...
