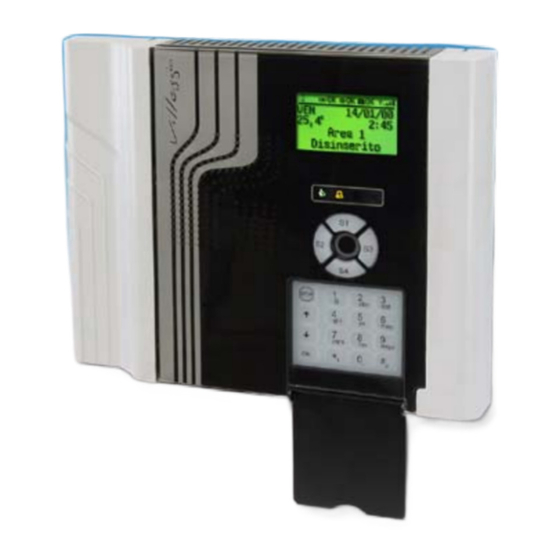

El.Mo VILLEGGIO User Manual

Hybrid multifunctional control units for intrusion detection systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hybrid Multifunctional Control Units
for Intrusion Detection Systems
VILLEGGIO
©
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VILLEGGIO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for El.Mo VILLEGGIO

Summary of Contents for El.Mo VILLEGGIO

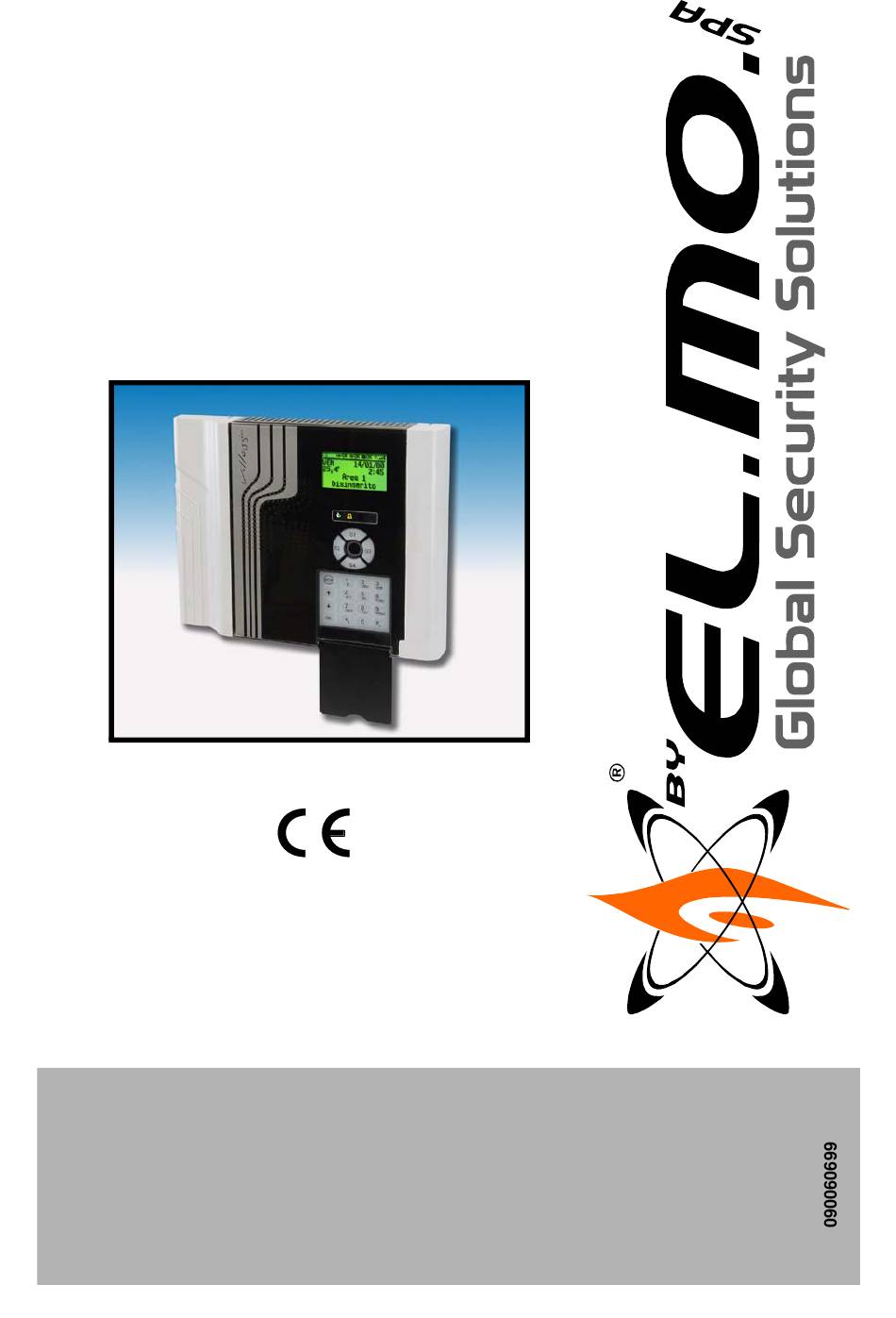

  • Page 1 Hybrid Multifunctional Control Units for Intrusion Detection Systems VILLEGGIO © USER MANUAL...
  • Page 2 VILLEGGIO - USER MANUAL - 090060699 FOREWORD FOR INSTALLERS Please follow carefully the specifications about electric and security systems realization further to the manufacturer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifications and different safety performance levels that should be proportioned to the user needs.

  • Page 3: Generals

    • Advanced design. • Low-profile plastic housing with the possibility of flush mount. • Possibility to install VILLEGGIO on to walls or brickwalls using the optional accessory IBOX. • Optional side flanges available in various colours for a stylish personalization.
  • Page 4 VILLEGGIO - USER MANUAL - 090060699 VIDOMO operating diagram: UP TO 64 WIRED / WIRELESS ZONES 8/16 WIRED ZONES ONBOARD VIBASIC operating diagram: 48 TO 64 WIRELESS ZONES ACCORDING TO THE AMOUNT OF WIRED ZONES SET 8/16 WIRED ZONES ONBOARD...
  • Page 5 090060699 - USER MANUAL - VILLEGGIO Operating diagram with wireless devices:...

  • Page 6: User Interface

    VILLEGGIO - USER MANUAL - 090060699 3. USER INTERFACE 3.1 View of VILLEGGIO front panel Area with tiny holes for built-in siren sound output. LCD Display with RGB This area also contains microphone and loud- backlight. speaker for voice syn- RED ->...

  • Page 7: Panel Display Standard Information

    090060699 - USER MANUAL - VILLEGGIO 3.3 Panel display standard information POWER SUPPLY PSTN NOTE: by default the GSM SIGNAL temperature RF SIGNAL detected RECEIVED the module will displayed WEEK DAY DATE on the right TEMPERATURE and the one HOURS AND MINUTES...

  • Page 8: Information Displayed With Active Chronothermostat

    3.4 Information displayed with active chronothermostat VILLEGGIO panel allows to control boiler operating mode; its chronothermostat function can work on daily or weekly schedules and is able to detect boiler failures. If a GSM module has been installed (MDGSMI or MD- SGME, optional) it will be possible to send and receive control SMS texts.

  • Page 9: Panel Status Icons

    090060699 - USER MANUAL - VILLEGGIO 3.5 Panel status icons GREEN YELLOW  Indicates panel arming condition: ON = No zones in alarm and/or tamper condition. OFF = Alarmed zone(s) not belonging to the exit path. SLOW Blinking = Exit path zones in anomaly condition with disarmed panel OR zone(s) in alarm/ tamper condition generating events different from ’intrusion alarms’.

  • Page 10: Keypad Operating Mode

    . Information provided refers only to pertaining area. IMPORTANT VILLEGGIO panel can be configured according to EN50131 standard or according to CEI 79-2 stan- dard and the operating indications will be displayed accordingly. This manual will illustrate the two procedures separately.

  • Page 11: Acoustic Signals For Zones Anomaly Condition (Din-Don)

    090060699 - USER MANUAL - VILLEGGIO In case of GPS module installation, its operating status can be controlled via the system menu on "GPS Status" page from the panel keypad. Example: The distance value can be hidden bye the instal- ler via panel software.

  • Page 12: Panel Arming With User Code

    Note: such procedure cannot be used for total arm/disarm with ’Max Security’ option. 4.5 Panel partial arming with proximity keys - #1 VILLEGGIO control unit can also be armed partially. After having presented the proximity key to the sensitive areas users shall select the desired sector keys...

  • Page 13: Panel Partial Arming With Proximity Keys - #2

    090060699 - USER MANUAL - VILLEGGIO 4.6 Panel partial arming with proximity keys - #2 To proceed with this function, enable partial arming function in Users -> User X - User Options -> Enable proxy key for unit partitioning software menu.

  • Page 14: Automatic Forced Arming

    VILLEGGIO - USER MANUAL - 090060699 The message will be displayed for 15 seconds during which the arming of system can be forced as fol- lows: - with code on keypad: press OK. - with M4 key: present M4 key or press OK on the keypad to which the reader is connected.

  • Page 15: Arm Command From External Control Device

    Such control device shall have the same performance level of the panel and will have to be wired to one of panel zones and setup for the total/partial command required. 4.13 Display panel operating status on I66 readers I66 readers properly connected to VILLEGGIO units can provide the following information: ...

  • Page 16: Display Advanced Options

    This function allows to display control unit sectors partial armed status that will be signalled by the external reader LED indicator (e.g. I66.) Note: not available if VILLEGGIO keypad has been set as ’system keypad’. Not available in case of total arm/disarm with ’Max Security’ option.

  • Page 17: Panel Arm/Disarm Signalled Via Siren Strobe

    4.16 Use of remote control devices 4.16.1 ATLANTE 4 Users can arm/disarm VILLEGGIO panel partially/totally by using a compatible remote control such as ATLANTE4. The remote control device use is managed by the panel application; remote control keys and LED...

  • Page 18: Atlante4Plus

    VILLEGGIO - USER MANUAL - 090060699 4.16.2 ATLANTE4PLUS ATLANTE4PLUS device is a bidirectional control device; it is equipped with 6 backlit yellow keys plus a cen- tral two-colour LED (green/red) for operating indications. Under the rubber keys, the yellow LEDs light on to confirm the reception and execution of the commands.

  • Page 19: Atlante6C

    Simplified arming with 6-key ATLANTE6C remote control device. One of the typical use of VILLEGGIO unit is for boats protection. It is quite common, in such applications, to find boat ladder control systems remotely controllable from the quay. In case of EL.MO. ladder protection systems such as CARABOTTINO, users can use the two central keys of ATLANTE6C remote control device to simply arm/disarm VILLEGGIO unit.

  • Page 20: Multi-Area Management

    4.20 Multi-area management VILLEGGIO is a multi-area control panel designed to manage 4 areas, each including 4 sectors, for a total of 16 sectors. Onboard keypad can manage all 4 areas; the areas can be accessed only if there is at least one user regi- stered in the system with authorizations for the areas to be used.

  • Page 21: Display Of Zones Status, Anomalies And Memories

    090060699 - USER MANUAL - VILLEGGIO In case of user access (via keypad or M4 proximity key) keypad ’operating area’ will be automatically set according to user’s areas authorized. AREA SELECTION BACKLIGHT OFF RED BACKLIGHT (GREEN BACKLIGHT) BACKLIGHT OFF (GREEN BACKLIGHT) Note: in case of user inactivity, the keypad shows presenting area and the welcome message.

  • Page 22: Maximum Security Property

    VILLEGGIO - USER MANUAL - 090060699 - by the installer via software application PARTIAL ARMING SELECTION OF SECTORS TO BE ARMED (S1, S2, S3, S4 KEYS WILL BE BLINKING) OR WAIT AROUND 4s FOR TOTAL ARMING EXAMPLE OF ARMED STATUS LED...

  • Page 23: Armed Conditions In Maximum Security

    090060699 - USER MANUAL - VILLEGGIO 4.23 Armed conditions in maximum security The following icons will be used to indicate a sector armed status. Note: armed status not listed in below table either cannot be performed or will never occur.
  • Page 24 VILLEGGIO - USER MANUAL - 090060699 Start Action Result Armed by user with maximum security Armed by weekly programmer with/without maximum security Disarmed user/weekly programmer Disarmed by user with maximum security or weekly programmer without max security Disarmed by weekly programmer...

  • Page 25: Max Security Arming And Max Security Set Event

    4.25 User authorization management VILLEGGIO users can be authorized for special arm/disarm functions. When configuring the panel, installers can enable ’only arming’ or ’only disarming’ function for a specific user.

  • Page 26: Suspend / Enable Authorizations

    (i.e. due to an alarm at one of other areas.) 4.26 Indication of data waiting to be read In compliance with EN50131 standard, VILLEGGIO panel displays the indication of data waiting to be read. This function operates during zones status, system anomalies, and alarm/tamper memories display.

  • Page 27: Arm / Disarm Command From Specific Users

    090060699 - USER MANUAL - VILLEGGIO 4.28 Arm / Disarm command from specific users With the special optional modules installed, VILLEGGIO panel can be configured to automatically send SMS texts and voice messages for panel arm / disarm. This function is useful to monitor system current status, but can also create some minor problems. For this...

  • Page 28: Remote Listening Function

    Remote listening function will be active for 2 minutes max, then the call will be interrupted automatically. 4.32 Acoustic signals VILLEGGIO panel features two built-in acoustic devices: a buzzer and a siren. The software application allows to set built-in buzzer volume and volume of panel arm/disarm events to meet users needs.

  • Page 29: Outputs Test

    090060699 - USER MANUAL - VILLEGGIO A zone test will be considered valid when both idle and alarm conditions are detected regardless of the se- quence performed. Note: zones and outputs test functions are not subject to timeouts, that is, the unit will remain in test mode until the test is completed or until a manual logout is performed.

  • Page 30: Disable Sim Credit Reading

    The activation of this function DOES NOT generate a SIM credit anomaly event. 4.34 Thermostat function VILLEGGIO control units are equipped with a built-in temperature sensor used for ’thermostat’ function. To compensate for different individual features of temperature sensors and installing modes, temperature detected by the sensor can be adjusted in the relevant user and installer menus using unit keypad.

  • Page 31: External Temperature Sensor

    090060699 - USER MANUAL - VILLEGGIO IMPORTANT Multiple ’temperature max threshold’ events will NOT be generated when, after the first ’temperature max threshold’ event, the temperature falls below the maximum threshold without reaching the mini- mum threshold and then raises over the maximum threshold set again. The system will operate similarly in case of ’temperature min threshold’...

  • Page 32: Chronothermostat Function

    SMS. 4.35 Chronothermostat function VILLEGGIO panel allows to control boiler operating mode; its chronothermostat function can work on daily or weekly schedules and is able to detect boiler failure. If a GSM module has been installed (MDGSMI or MD-...

  • Page 33: Chronothermostat User Interface

    090060699 - USER MANUAL - VILLEGGIO 4.35.2 Chronothermostat user interface When the chronothermostat user interface is active, a few keys will change their function. Status menu display: normally, to display the status menu users have to press ' * ' or ' # ' keys.

  • Page 34: Temperature Temporary Change

    VILLEGGIO - USER MANUAL - 090060699 The drawing shows the display in summer mode: FIXED ICON INDICATING THE AIR CONDITIONED IS ON INDICATES THAT THE THERMOSTAT IS OPERATING 4.37.1 Temperature temporary change A temporary change of the temperature can be performed using UP/DOWN arrow keys.

  • Page 35: Management Of A And B Temperature Alarms

    4.40 Unauthorized access attempts VILLEGGIO control units detect unauthorized access attempts: if within a single unit arm/disarm cycle more than 20 unauthorized access attempts are detected (i.e. unknown keypad code, proximity key, remote control code or remote access code) a specific alarm event will be generated.

  • Page 36: Outputs Control

    6. CONNECTION OF A TELEPHONE APPLIANCE TO VILLEGGIO PANEL In places where the traditional PSTN line is not available, VILLEGGIO panel can be equipped with optional modules (MDGSME with GSMEXA15 external antenna kit and MDNTP) in order to connect a standard tele- phone appliance for voice communications.

  • Page 37: Considerations On Power Saving

    9. VILLEGGIO FOR MOBILE APPLICATIONS (CAMPER VANS, WATERCRAFTS, ETC.) When VILLEGGIO is used for mobile applications (camper vans, watercrafts, etc.) it has to be powered by the vehicle battery, usuallay at 24V, using MDPOWER24 special module (optional) to be installed inside the panel.

  • Page 38: Periodic Sms With Coordinates

    VILLEGGIO - USER MANUAL - 090060699 The SMS text contai- ning position data can be received: - because of an alarm event - following a remote in- terrogation on GPS po- sition (C.cccccc R.P). The example refers to the USER 01.

  • Page 39: Speed Alarm

    SMS sending, so that the panel will send SMS texts with position data regularly. 10.2 Speed alarm VILLEGGIO panel can detect excessive speed when the GPS alarm threshold and alarm reset have been set via software. The speed alarm can be detected only when at least one of the sectors associated to the GPS is armed.

  • Page 40: Users Menu

    VILLEGGIO - USER MANUAL - 090060699 11. USERS MENU User menu tree:...
  • Page 41 090060699 - USER MANUAL - VILLEGGIO Menu diagram 1: MAINTENANCE MENU SUBJECT TO 1-MINUTE TIMEOUT TO SELECT ANOTHER OUTPUT...
  • Page 42 VILLEGGIO - USER MANUAL - 090060699 Menu diagram 2: NOTE: THIS ME NU WILL BE DISPLAYED ONLY AFTER ACTIVATION VIA SW APPLICATION. TIME SCHEDULE CAN BE MODIFIED VIA SW APPLICATION ONLY. CHANGE TEMPERATURE NOTE: THE CHRONOTHERMOSTAT OPERATING MODE CAN BE SET USING SW AP PLICATION AS SHOWN ON UNIT DISPLAY DURING INACTIVE INTERVALS.
  • Page 43 090060699 - USER MANUAL - VILLEGGIO Menu diagram 3:...

  • Page 44: Sms-Based Remote Interrogation

    VILLEGGIO - USER MANUAL - 090060699 12. SMS-BASED REMOTE INTERROGATION 12.1 General information on panel configuration via software application 12.1.1 SMS texts limitation Besides the limit of dialler daily events already seen above, there is another ’internal’ limit: 1000 SMS texts that can be sent daily by GSM dialler (other values selectable: 30, 60, 100, 200, 500).

  • Page 45: Sms-Based Remote Control Via Sms Texts

    090060699 - USER MANUAL - VILLEGGIO When an SMS text is sent, the unit replaces all character combinations with real time information. Example: if SMS heading is: "House Brown /A1: " the possible SMS text for power failure may be: "House Brown DISARMED: Mains Failure CONTROL UNIT".
  • Page 46 VILLEGGIO - USER MANUAL - 090060699 • R.C -> Control unit report When interrogated, the unit will return a text message, or more, to inform users about operating status: all user partitions (sectors) are disarmed but Panel disarmed ready to be armed -->>...
  • Page 47 090060699 - USER MANUAL - VILLEGGIO • R.A -> Anomalies report When interrogated, the control unit will return one text message, or more, to inform about anomalies at areas/zones pertaining to the user: system test anomaly at one of areas pertaining to ANOMALY System Test -->>...
  • Page 48 VILLEGGIO - USER MANUAL - 090060699 When chronothermostat function is active, the temperature data will be followed by details on chronother- mostat status separated by a comma: chronothermostat is enabled and controls the Chronothermostat ON -->> boiler chronothermostat is set to manual mode Chronothermostat XX degrees -->>...

  • Page 49: Control Commands

    090060699 - USER MANUAL - VILLEGGIO 12.2.2 Control commands Control commands allow to change panel operating status: Code Meaning I.ON Arm areas / sectors authorized I.P1 Arm sectors proposed I.P2 Arm sectors authorized (NOT proposed ones) I.OFF Disarm areas / sectors authorized G.ON...
  • Page 50 VILLEGGIO - USER MANUAL - 090060699 • GSM module ON / OFF ( G.ON - G.OFF ) The control unit will return one text message, or more, to inform about the command result. The message(s) provides details on GSM ON / OFF status: GSM ON -->>...
  • Page 51 090060699 - USER MANUAL - VILLEGGIO • Bypass / include zone ( E.# - N.# ) The control unit will return one text message, or more, to inform about the command result: The message(s) provides details on each single zone bypassed status: zone ZoneName BYPASSED -->>...

  • Page 52: Remote Listening Function

    VILLEGGIO - USER MANUAL - 090060699 12.3 Remote listening function As already illustrated above, during a voice communication it is possible to activate the remote listening fun- ction by pressing ' ' or ' ' key, and then ' ' or ' ' key to disable the function.

  • Page 53: Remote Interrogation Quick Guide

    090060699 - USER MANUAL - VILLEGGIO 14. REMOTE INTERROGATION QUICK GUIDE The panel can be interrogated by a remote site using SMS texts if there is a compatible GSM module installed. SMS texts sent to the panel have a definite pattern and the panel will return one or more text(s) to provide the informa- tion requested.

  • Page 54: Sms Received But Not Acknowledged

    VILLEGGIO - USER MANUAL - 090060699 14.1 SMS received but not acknowledged Case A = the telephone number belongs to the phone number list: The remote phone sends the following SMS: The remote phone receives the following SMS: SMS text containing an INVALID or "WRONG CMD (command)"...

  • Page 55: Table Of Contents

    2. BLOCK DIAGRAMS OF VILLEGGIO SYSTEM ........
  • Page 56 6. CONNECTION OF A TELEPHONE APPLIANCE TO VILLEGGIO PANEL ....... .
