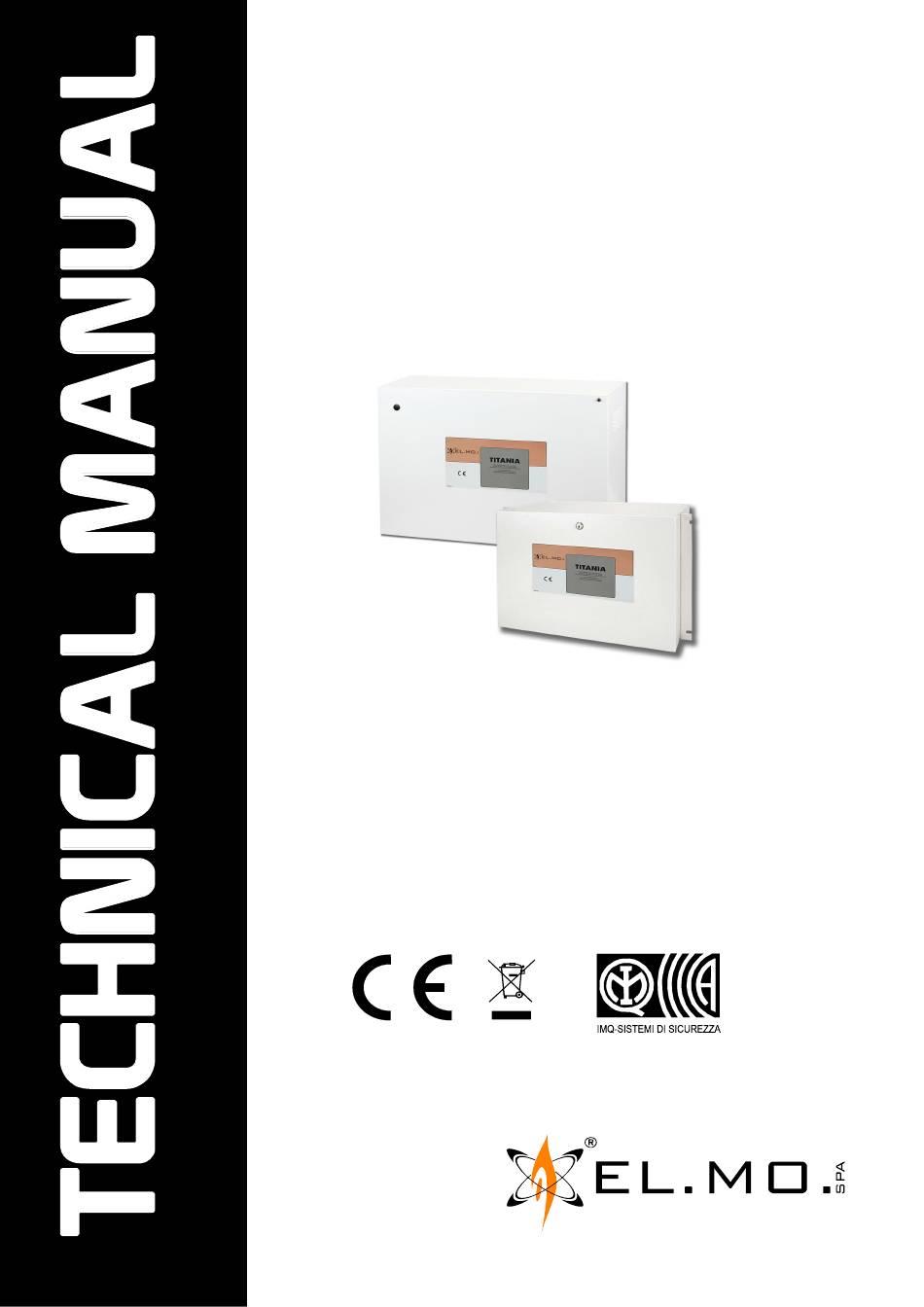

El.Mo TITANIA Technical Manual

Intrusion detection control unit with embedded os
Hide thumbs Also See for TITANIA:
Table of Contents

Advertisement

Quick Links

TITANIA and TITANIAPLUS
Intrusion detection control unit with
embedded OS
090020690
IT08020000001624

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITANIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for El.Mo TITANIA

  • Page 1 TITANIA and TITANIAPLUS Intrusion detection control unit with embedded OS 090020690 IT08020000001624...
  • Page 2 090020690 - TECHNICAL MANUAL - TITANIA v.6 series FOREWORD FOR INSTALLERS Please follow carefully the specifications about electric and security systems realization further to the manufacturer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifications and different safety performance levels that should be proportioned to the user needs.
  • Page 3: Generals

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1. GENERALS The TITANIA series intrusion detection control units have been created in order to make it possible to create high quality intrusion detection systems suitable for large banks, postal offices or company sites.
  • Page 4 Power supply from 230Vac network: high efficiency switching power supply. In according to: EN50131-1, EN50131-2, EN50131-3, EN50131-6, EN50131-10:2014, EN50136-2:2013. Note: it is possible to house larger batteries in the metallic housings: up to 40Ah for TITANIA, up to 50Ah for TITANIAPLUS. international@elmospa.com elmospa.com...
  • Page 5: Block Diagram For A Titania System

    Note: zones from 513 to 1024 of TITANIAPLUS control units require RIVER or RIVERRF series concentrators. Note: wirings shown and described in this manual are valid for TITANIAPLUS control units. Differences with the TITANIA control units are explicitly signalled. international@elmospa.com...
  • Page 6: Technical Features

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 4. TECHNICAL FEATURES Models: TITANIA and TITANIAPLUS. “Device supply fault” event: any power output provides less than 9 V (event reset at >12 V). CEI safety class: “Local power supply unit any power input from switching fault”...
  • Page 7 Tamper microswitches against opening and tear, screws for fixing a RIVER device on the inside of the housing; KITRACK19 (TITANIA only); technical manual; user manual; CD-ROM with management software (TITANIA16 and TITANIAPLUS2 only); 3-axis SI3 inertial sensor with installation in- structions.
  • Page 8: Compliance

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 5. COMPLIANCE In order to comply with the EN50131 standard, the system has to follow the guidelines below. 5.1 For class 1 - The system must comply to at least one of the following: A) 2 external, not self-powered sirens.
  • Page 9: For All Classes

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 5.4 For all classes - If using I66 proximity readers, connect only a single one to each keypad and activate the I66 tamper detection. - All wired detectors have to use a double balanced connection.
  • Page 10: Riverrf Configuration For En50131 Conformity

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 5.6 RIVERRF configuration for EN50131 conformity When using RIVERRF concentrators, the following settings must be used for the system to be compliant with the EN50131 standard: - Set the supervision time to 30 min.
  • Page 11: Installation

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 6. INSTALLATION 6.1 Access levels The TITANIA system can be set as: - With Administrators (specific for the Italian postal offices). - Without Administrators (standard). In both cases, the following access levels are available: - Level 1: Anybody can access.
  • Page 12: Installation Process

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 6.3 Installation process WARNING Ensure that the electrical network is properly grounded. Install a FAR protection module on the mains cable, right outside the metallic box of the control unit. Before installing, please read the local standards about the installation of security systems and about the installation of low voltage systems.
  • Page 13: Wall Mounting

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 0.1 Wall mounting Drill distances for TITANIA. For TITANIAPLUS. 1. Open the control unit by turning the key or by unscrewing the front cover. 2. Open the front panel, remove the pack with the supplied parts and ready the control unit for the wall mounting.
  • Page 14 090020690 - TECHNICAL MANUAL - TITANIA v.6 series 10. Check the performed wirings, then connect the red and black cables with FASTON terminals to the battery, using the correct polarity. Note: the material of the battery casing has to have a HB flammable rate or above.
  • Page 15 TITANIA v.6 series - TECHNICAL MANUAL - 090020690 Cable holes for the TITANIAPLUS model. international@elmospa.com elmospa.com...
  • Page 16: Hook-Ups

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1. HOOK-UPS The suggested internal position of the devices, shown in the image below for a TITANIA control unit, allows for the connection of all 512 zones/outputs with external RIVER concentrators. The installer shall position and wire the internal accessories.
  • Page 17 TITANIA v.6 series - TECHNICAL MANUAL - 090020690 The suggested internal position for the TITANIAPLUS model. international@elmospa.com elmospa.com...
  • Page 18: Main Board Descriprtion

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 2. MAIN BOARD DESCRIPRTION international@elmospa.com elmospa.com...
  • Page 19: Wirings

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1. WIRINGS 1.1 Power supply connection In some models, the power supply unit is placed on the side international@elmospa.com elmospa.com...
  • Page 20: Zones Connection

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.2 Zones connection Double balancing connection (default). Note: programming inputs as NC lowers the EN50131 level from 3 to 1. In order to grant the higher performance level, zone that has to be as- signed to the “KEY”...
  • Page 21: Control Unit Tamper And 3-Axis Inertial Sensor Connection

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.4 Control unit tamper and 3-axis inertial sensor connection Diagram for connecting the control unit tamper (single balancing) and the anti-drilling 3-axis inertial sensor, as shown in the general diagrams. Note: in order to keep the tamper button pressed, place a screw and plug on the wall behind the control unit, in axis with the button.
  • Page 22: Concentrators And Keypads Connection

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.5 Concentrators and keypads connection Diagram for connecting serial devices to the RS-485 lines of the control unit. international@elmospa.com elmospa.com...
  • Page 23: Alternate Connection Of A Serial Line

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.6 Alternate connection of a serial line ETR-ZENITH ETR-ZENITH FLUSH-MOUNTED FLUSH-MOUNTED KEY POINT KEY POINT Note: the serial line can have any number of branches, as long as the total length of the serial line cables is 1000 m or less.
  • Page 24: Rpx485 Repeater For Serial Line

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.7 RPX485 repeater for serial line RPX485 can be used to create extended or complex serial lines. It repeats and regenerates signals and isolates the serial line from faults, without providing galvanic isolation.
  • Page 25: Nirva Keypads Connection

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.8 NIRVA keypads connection Note: the open collector output of the NIRVA keypad is used for the access control option; the timer, set to 3 seconds. can be used to activate the control relay of an electric lock of a door set to “Access control” (that is, the Security Exit door).
  • Page 26: Led Indications For Proximity Readers Connected To A Nirva Keypad

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.10 LED indications for proximity readers connected to a NIRVA keypad 1.11 Proximity readers connection to a METIS keypad Note: METIS and METIS2 keypads have no built-in proximity reader. To memorize M4 keys, connect an I66 o I7 proximity reader as shown in the diagram.
  • Page 27: Connection Example For I8 Proximity Readers And Some Compatible Keypads

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.12 Connection example for I8 proximity readers and some compatible keypads Note: the open collector output of the METIS keypad is used for the access control option; the timer, set to 3 seconds.
  • Page 28: Connection Of Detectors With Serial Interface

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.14 Connection of detectors with serial interface Example diagram showing the connection over a serial line for a TRES01485 detector with fw 2.4 or higher. = PROTECTION AGAINST REMOVAL EVENT GREEN LED...
  • Page 29: Power Supply Unit Connection To The Serial Interface

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.16 Power supply unit connection to the serial interface Note: TITANIA manages up to 20 power supply units. Use BrowserOne to set their presence, program- mable exit and perti- nence area. 1.17 Optical-acoustic alarm standard connection Connection of self-powered sirens to the terminals of the control unit.
  • Page 30: Connection Of River Series Concentrators

    1.18 Connection of RIVER series concentrators RIVER, RIVER2 or RIVER3 (fw.1.5) concentrators can be used to reach the maximum number of zones/outputs that the control unit can manage (512 for TITANIA, 1024 for TITANIAPLUS). Nota: il concentratore RIVERPLUS è dota- to di due uscite a relè...
  • Page 31: River Concentrators Address Setting (Part 1)

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.19 RIVER concentrators address setting (part 1) international@elmospa.com elmospa.com...
  • Page 32: River Concentrators Address Setting (Part 2)

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.20 RIVER concentrators address setting (part 2) international@elmospa.com elmospa.com...
  • Page 33: Choice Of Balancing For The Zones Of A River Concentrator

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.21 Choice of balancing for the zones of a RIVER concentrator The various balancing options can be used when it is necessary to replace the control unit and the concentrators, but it is not practical to change the line balancing on existing detectors; the various balancing options are com- patible with a large number of configurations.
  • Page 34 090020690 - TECHNICAL MANUAL - TITANIA v.6 series Example of fast zones connection. Notes on the configuration and functioning of fast zones on concentrators with fw v.1.4 or higher. Setting a zone as “fast” allows for the man- agement of signals from inertial or shutter sensors;...
  • Page 35: Output Connections On A River Concentrator

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.23 Output connections on a RIVER concentrator Note: if the ETRREL or ETRREL4 board is connected to a RIVER concentrator, which has a plastic housing, the installer shall place them inside a housing that can grant the desired EN50121 protection level.
  • Page 36: Riverrf Concentrator

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.24 RIVERRF concentrator The TITANIA series control units fully manage the RIVERRF concentrator, including 24 hrs detectors and remote controls. Its address can be set from 17 to 512 (for TITANIA) or 1024 (for TITANIAPLUS).
  • Page 37 TITANIAPLUS are cancelled, including fault and low battery ones. ATTENTION: when activating the extended management of a RIVERRF concentrator on a TITANIA control unit, set its selection dip switch to the NET9 mode. If the switch is in ETR mode, 6 zones will be used for radio detectors, one for low battery and one for the super- vision failure of all six zones.
  • Page 38: Riverrf Concentrators Address Setting (Part 1)

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.25 RIVERRF concentrators address setting (part 1) international@elmospa.com elmospa.com...
  • Page 39: Riverrf Concentrators Address Setting (Part 2)

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.26 RIVERRF concentrators address setting (part 2) international@elmospa.com elmospa.com...
  • Page 40: Riverrf Concentrator Inside Metis Keypad

    For its addressing, see the tables in the previous pages. 1.28 Battery disconnection circuit This circuit, which is part of all TITANIA series control units, is used to disconnect the battery when the battery voltage is under 9 V, in order to avoid damaging the battery itself.
  • Page 41: Lan Network Connection

    (after a user gave him permission from the Enablings menu). 1.31 iCON100 controller connection on TITANIAPLUS control units See the MT_ETR_iCON100_rev07-09 document (also valid for TITANIA series control units) that is provided in the supplied CD-ROM or is downloadable from elmospa.com.
  • Page 42: Installing The Mdpstn Telephone Module

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.32 Installing the MDPSTN telephone module 1.33 Telephone connection to the MDPSTN module international@elmospa.com elmospa.com...
  • Page 43: Connection Of A Ksm412 Selective Microphone For Strongboxes

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.34 Connection of a KSM412 selective microphone for strongboxes Connection example. Connection example using a RIVERNANO2 miniaturized concentrator. international@elmospa.com elmospa.com...
  • Page 44: Installation Of The Mdvoice Vocal Synthesis Module

    1.36 ETRGSM module See the technical manual for the ETRGSM module. Use a GSMAC antenna for TITANIA, a GSMAC90 antenna for TITANIAPLUS. The module provides a GSM connection that can be used to send alarm messages to a remote centre (ATS 4/ SP4, reference standard EN50136-2:2013).
  • Page 45: Connection To The Configuration Software Via Lan

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1.38 Connection to the configuration software via LAN Get a PC with a RJ49 (Ethernet) port and use an Ethernet cable to connect the PC directly to the LAN1 port located on the main board of the control unit.
  • Page 46 090020690 - TECHNICAL MANUAL - TITANIA v.6 series In the following window, choose the Tcp/Ip communication protocol. Set the IP address of the LAN1 board and the Port. Click “Next” to connect. Go to the “Settings” page, “Network Parameters” tab.
  • Page 47: Keypad Menus

    TITANIA v.6 series - TECHNICAL MANUAL - 090020690 1. KEYPAD MENUS 1.1 Installer menu The installer can access via keypad for a limited programming while the system is unarmed. A finer programming is only possible by using the configuration software.
  • Page 48: User Menu

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 1.2 User menu The control unit can manage up to 256 users. The first three users are immediately available, all others have to be activated by the installer using the configuration software.
  • Page 49: Firmware Update

    Select “Tools > Firmware Update Panel”. The “Titania Firmware Update” window will guide you through the update process. Either download the latest firmware from the online archive (press “Sync with online archive”; this is the sug- gested procedure), or load a file (useful if the PC is offline): - for TITANIA16 and TITANIAPLUS2 control units, from the /Firmware/ folder of the provided CD.
  • Page 50 The installer can also check the installed firmware version by logging in to a keypad with his code. Model v. x.x.x The first row shows the control unit model: TITANIA or TITANIAPLUS. The second row has the firmware version. international@elmospa.com...
  • Page 51: Reset Instructions

    1. RESET INSTRUCTIONS 1.1 RESET procedure The TITANIA series control units come with a factory configuration called DEFAULT. The default configuration has the minimal functions required to run the operations for the first configuration. Whenever it is necessary to delete the programming, it is possible to restore the DEFAULT as follows: A.
  • Page 52: Warnings

    The LITHIUM battery has a battery life of 10 years, after which its functioning is no longer granted. To avoid incorrect visualizations and functioning, plan its replacement in an EL.MO. technical assistance centre. ATTENTION: before junking the control unit, the installer shall remove the LITHIUM battery that is soldered to the printed circuit board by cutting its leading wires and trash them in the special battery collection bins.
  • Page 53: Scheduled Maintenance

    3. SCHEDULED MAINTENANCE In order to grant the full efficiency of the system managed by a TITANIA series control unit, it is necessary to perform a series of periodic routine maintenance tests, according to the standards in effect in the country where the control unit is installed.
  • Page 54: Notes

    090020690 - TECHNICAL MANUAL - TITANIA v.6 series 4. NOTES international@elmospa.com elmospa.com...
  • Page 55: Table Of Contents

    3. BLOCK DIAGRAM FOR A TITANIA SYSTEM ........
  • Page 56 16. TABLE OF CONTENTS ............. . . 1 Intrusion detection control unit with embedded OS - TITANIA and TITANIAPLUS v.6 - TECHNICAL MANUAL...
