Summary of Contents for El.Mo PREGIO2000

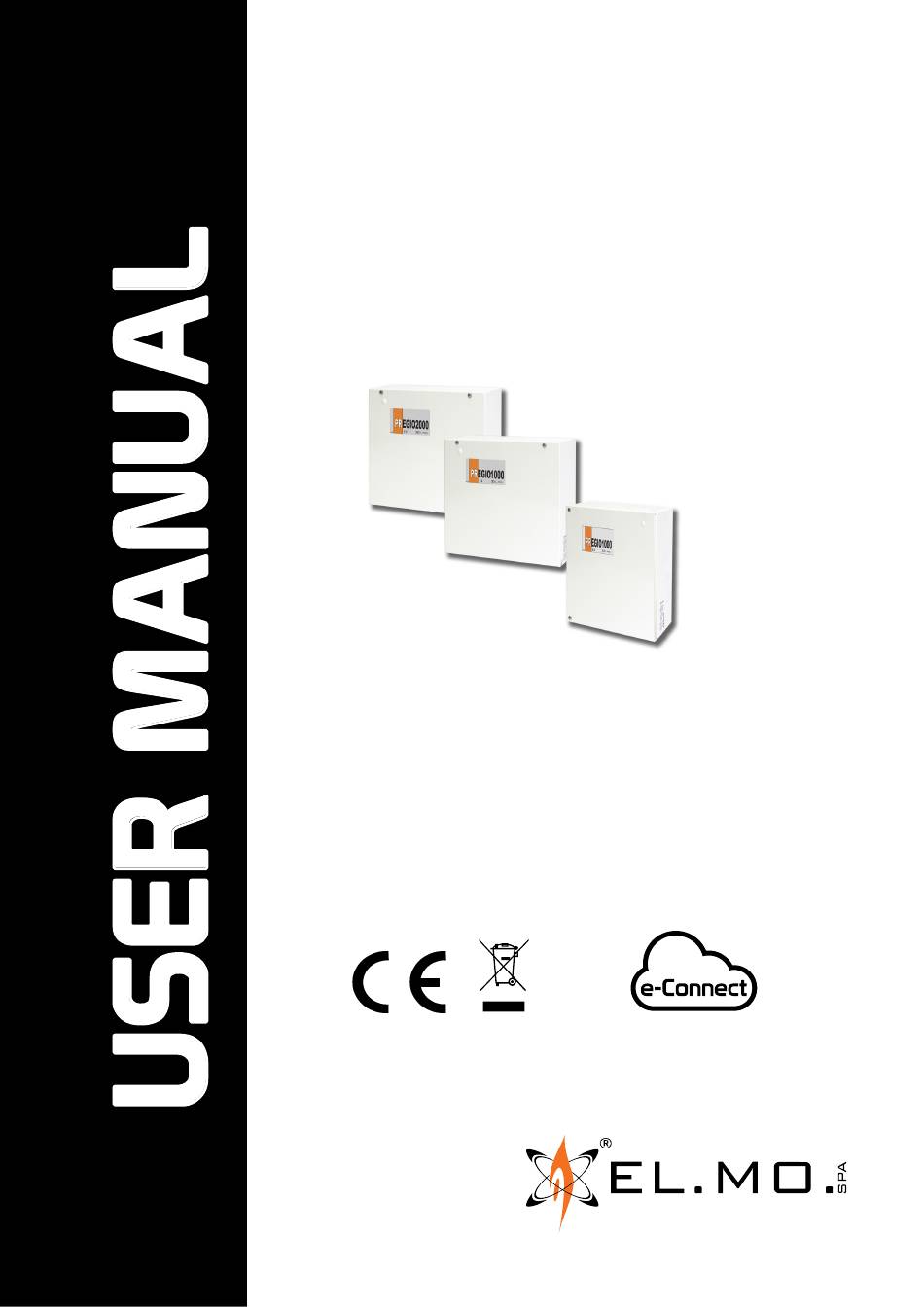

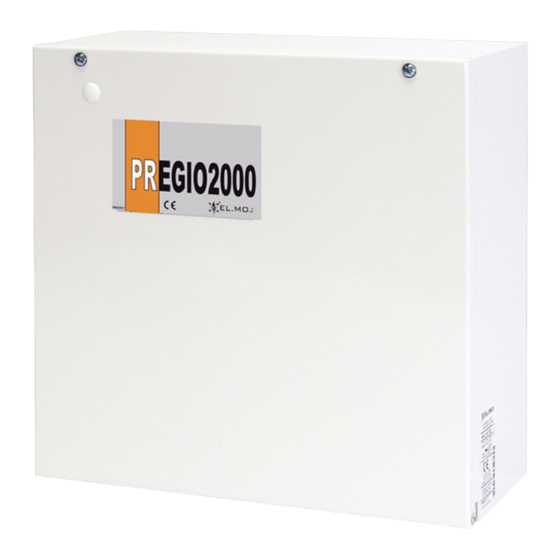

- Page 1 PREGIO2000, PREGIO1000BM and PREGIO1000 Hybrid multifunctional control units for intrusion detection IT08020000001624 Compatible with the e-Connect platform...
- Page 2 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL FOREWORD FOR INSTALLERS Please follow carefully the specifications about electric and security systems realization further to the manufacturer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifications and different safety performance levels that should be proportioned to the user needs.
-
Page 3: Generals
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 1. GENERALS The PREGIO2000, PREGIO1000BM and PREGIO1000 microprocessor control units make it possible to create sophisticated intrusion detection systems that are characterized by the following features: • Highly evolved components and electronic circuitry. -
Page 4: Tattilo Keypad
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 2.2 TATTILO keypad The characteristic programming of the control unit connected to one or more TATTILO touch-screen keypads (v.2.x or higher) lets the user obtain a courtesy light in case of mains failure. -
Page 5: Keypad With Display Mod. Midas
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 2.5 Keypad with display mod. Midas This keypad model features a pleasant design. It is only equipped with one on-board proximity key reader and with no remote ones. The numerical keys are not backlit, therefore Midas can not be used as system keyboard. -
Page 6: Recessed Key Point Mod. Etrzenith
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 2.6 Recessed key point mod. ETRZENITH This is a recessed simplified addressed control device that can be directly connected to a serial bus together with keyboards and I8 proximity readers. To use ETRZENITH with the control unit and to programme them according to the EN50131 Standard, activate presence monitoring for any I66 proximity readers. -
Page 7: Sectorizable Recessed Key Points Mod. Izenith
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 2.8 Sectorizable recessed key points mod. IZENITH The control unit can also be controlled (for command, partialization and control) by a recessed key point such as IZENITH. Compared to ETRZENITH, IZENITH is smaller and it and only occupies the space of a single module. -
Page 8: User Interface
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 3. USER INTERFACE 3.1 Control devices status summarizing LEDs Summarizes the control unit’s ability to be armed: ON = No zone is sending alarm and/or tampering signals. OFF = Zone(s) outside the exit path in alarm. -
Page 9: Meaning Of The Rubber Buttons
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 3.3 Meaning of the rubber buttons The STOP, and , *, # and Ok buttons are used in concert to visualise anomalies, to browse, to select and deselect and to enter and exit from the various menus. -
Page 10: Commands Sent To The Control Unit
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4. COMMANDS SENT TO THE CONTROL UNIT Note: the control unit can be connected to remote command devices that are placed according to the user’s needs. These devices can be TATTILO touch-screen keyboards, traditional ones such as NIRVA, ANIMA and MIDAS, recessed control devices such as ETRZENITH or IZENITH and I8 addressed proximity readers. -
Page 11: Disarming With Electronic Key
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.3 Disarming with electronic key PLACE THE KEY IN CONTACT WAIT FOR A FEW SECONDS, ACOUSTIC WITH THE SENSIBLE ZONE FOR UNTIL THE SECTOR LEDS CONFIRMATION A CORRECT READING STOP GLOWING Note: if the area or the sectors are in a “Maximum Security”... -
Page 12: Activation Of The Arming Lock
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.6.1 Activation of the arming lock This function activates the arming lock. If the lock is active, the control unit is operating, a fault/tamper status is active and an arming is requested, the... -
Page 13: Forced Arming
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.7 Forced arming If arming is locked because of siren or dialler fault or because of supervision failure, the arming can be forced. The following message is displayed: ANOMALY FORCE ARMING? The message lingers for 15 seconds;... -
Page 14: Fast Arming
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.10 Fast arming To facilitate the user, the control unit can be programmed for fast arming, without using the proximity key and without typing an identification code. Fast arming can be done in two ways. -
Page 15: Visualisation Of Operating Statuses On The I66 Proximity Reader
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL The control device is required to have the same performance level of the control unit and has to be connected to one of the control unit zones and programmed for the required total/partial arming command. -
Page 16: Arming/Disarming With Siren Flashing
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.14 Arming/disarming with siren flashing This function can only be enabled via software. Enabling it, it is possible to signal the arming and disarming of the control unit with an appropriate optical-acoustic signal from the connected siren(s). -
Page 17: Atlante6
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL See note 1 See note 1 Note: The red central transmission LED might turn on if the control unit cannot perform the command or for a lack of confirmation. In the former case (e.g. trying to send an arm command when the control unit is im- possible to arm for whatever reason), the red LED turns on within a few seconds from the activation;... -
Page 18: Partialization From Remote Location
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.16 Partialization from remote location A control unit equipped with a MDGSME module or using the e-Connect platform can be armed/disarmed and partialized remotely, using SMS commands. 4.17 Zones programmed as Exit Door The control unit can be programmed to allow to the user to arm it from inside a protected local and walk out without causing alarms. -
Page 19: Area Managed By A Keyboard
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Note: the end of the active status, also called user activity, is marked by the turning off of the backlights of the LCD display and of other programming-related signals. Note: if the system keyboard is selected, the armed areas appear in the display instead of the sectors. -
Page 20: Arming Of Multiple Areas
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Note: the EN50131 Standard provides that no indication that the system is armed is shown. If the control unit has been programmed via software so that the visualization protection option is active as according to EN50131 (System Options »... -
Page 21: Sector Buttons During 8 / 16 Sectors Per Area Pre-Arming
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL For controls devices sporting an alphanumeric LCD (e.g. keyboards), the armed status of each sector is indicated in the bottom line of the display. - For 8 sectors per area, the display might show “Arm: 123--67-”: the numbers are the armed sectors, the hyphens represent disarmed ones. -
Page 22: Fast Arming With 8 / 16 Sectors Per Area
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL •16 sectors per area Sectors from 1 to 9 are represented by the corresponding digit, sectors from 10 to 16 are represented by letters from A to G. Pressing a numeric button from 1 to 9 during pre-arming switches the arming proposal of that sector (assuming it is an allowed sector);... -
Page 23: Visualisation Of Zone Statuses, Anomalies, Memories And Arming Status
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.20.6 Visualisation of zone statuses, anomalies, memories and arming status To view the zone status, anomalies or alarm memory, it is necessary to use the “status visualization” menu. This menu can be accessed by pressing the up/down arrow keys when the interface is in the idle status. -
Page 24: Zone Bypass
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.21 Zone bypass The user can exclude those zones that will predictably generate fault or alarm events because of known causes, such as when some maintenance event is planned. The user must then remember to re-include the zone when after event ends. -
Page 25: Memory Canceling
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.22 Memory Cancelling Arming the central unit allows to erase alarm/tampering memories left by previous alarm/tampering events. It is possible to disable this function via software. Tampering and fault event memories (except mains failure, low battery and dialler events) can only be cancelled by the installer through the programming menu or using remote maintenance software. -
Page 26: Max Security Properties
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.24 Max security properties Each sector has two max security properties: user max security and weekly programmer max security. A sector is considered armed in max security when at least one of the two properties is set. - Page 27 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL The following table shows the end status reached by the operations listed in the Action column. Starting status Action End status Arming made by user or by weekly programmer without max security...
-
Page 28: Max Security Arming And Set Max Security
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Starting status Action End status Disarming by weekly programmer without max security Disarming by weekly programmer with max security Max security reset by weekly programmer Max security reset by weekly programmer... -
Page 29: User Enabling Management
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.27 User enabling management The control unit can be programmed so to assign particular arming/disarming functions to the different users; the installer can also allow a user to only arm or to only disarm. -
Page 30: Unread Pending Messages Signalling
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.28 unread pending messages signalling The control unit signals the presence of unread pending messages in compliance with the EN50131 Standard. Their presence is indicated by an arrow symbol flashing in the “Anomalies Status”, “Alm/Tamp. Memory”, “GSM Status”... -
Page 31: Dialler Block At Disarming
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.31 Dialler block at disarming Activating this function blocks any communication, be it pending or in progress, relating to any area that just got disarmed. Events that happen after the dialler block has been removed trigger the dialler restart as usual. -
Page 32: System Test
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.33 System test The functions for testing the correct functioning of the system can be accessed from the user or from the installer menu, under the “System test” entry. The system test menu groups four functions types: zone test, output test, dialler test and battery test. -
Page 33: Output Test
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.33.2 Output test The output test function allows the temporary activation of the following outputs: - Programmable relays - External sirens (if activated for general or tampering alarm) - RS485 sirens (if present) 4.33.3 Dialler test... -
Page 34: Temperature Management
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.35 Temperature management The control unit is equipped with a built-in temperature detector that measures the temperature inside the hous- ing. Two temperature thresholds (maximum and minimum) have to be set. When the temperature level reaches the maximum threshold, the maximum temperature event is generated, while when the temperature lowers to the minimum threshold, the minimum temperature event is generated. -
Page 35: Management Of A And B Temperature Alarms
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.36 Management of A and B temperature alarms These functions allow for advanced temperature control through the main board sensor. They allow to monitor the temperature and to define proper pre-alarm and alarm thresholds; setting outputs for local actions is also possible. -
Page 36: Limiting The Installer Access To Programming
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 4.37 Limiting the installer access to programming The installer can access the programming functions only if authorised through the user menu; consequently, us- ers with small maintenance authorisation can allow or negate the installer’s access. -
Page 37: Phone Device Connection
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 7. PHONE DEVICE CONNECTION Where no PSTN traditional line is available, it is possible to equip PREGIO2000 with optional modules such as the MDGSME module (with GSMEXA15 external antenna kit and MDNTP module). The MDGSME module is not compatible with PREGIO1000 and PREGIO1000BM. -
Page 38: User Menu
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 10. USER MENU Menu tree USER CODE THE MAINTENANCE STATUS IS SIGNALLED BY THE BLINKING LEDS TO ACCESS THE MENU, THE USER UNDER THE DISPLAY AND IN THE HAS TO BE ALLOWED FOR “SMALL CONNECTED PROXIMITY READERS MAINTENANCE”... -
Page 39: Keyboard Activities
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 11. KEYBOARD ACTIVITIES 11.1 Operations recurring in various menus Scheme for the various maintenance menus, only available to users with the “Small Maintenance” attribute. Level 1 Level 2 Level 3 Description Level 0 General tree. - Page 40 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Level 0 Description Maintenance [Ok] = to enter the menu. [Ins Num] = to key in the zone number. BYPASS ZONES = to browse the zones. [Ok] = to exclude and to exit the menu.
- Page 41 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Level 0 Description Maintenance [Ok] = to enter the menu. Note: data which is being modified blinks. CLOCK SETUP [Ins Num] = to change the weekday. 1=monday 7=sunday.
- Page 42 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Level 0 Description Maintenance [Ok] = to enter the menu. = to browse the different available tests. SYSTEM TEST [Ok] = to start the test. ZONE TEST = to get the name of a zone in WALK TEST mode. Have that zone send an alarm signal: the system will beep for confirmation and the next zone will be shown.
-
Page 43: Remote Interrogation Via Sms
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 12. REMOTE INTERROGATION VIA SMS 12.1 Overview on via software programming of the control unit 12.1.1 SMS sending limitation In addition to the activations limit of the programmable dialler, max 1000 text messages can be sent per day. -
Page 44: Remote Control Via Sms
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL When the unit sends an SMS message, it swaps all spacial symbols with the appropriate informations. E.g. if the heading is: Smith house /A1: ” “ an SMS message sent because of a mains failure could be: “Smith house DISARMED: Mains failure PANEL”. - Page 45 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Unit report : the unit answers with one or more SMS messages containing its operative status: “PANEL DISARMED, ready to be armed”, when every sector allowed to that user is disarmed and ready for arm- ing.
- Page 46 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Memory report : the unit answers with one or more SMS messages that contain the alarm and tampering memory status of the areas that user can access: “system TAMPER MEM.” if an area the user can access has a tamper event memory.
- Page 47 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Sector report : the unit answers with one or more SMS messages containing the arming status of the areas that unit can access: “AreaName ARMED” if every sector in the area is armed.
-
Page 48: Actioning Commands
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 12.2.2 Actioning commands These commands let the user change the status of the unit: Symbol Meaning I.ON Arm allowed areas / sectors I.P1 Arm suggested sectors I.P2 Arm all allowed sectors except the suggested ones I.OFF... - Page 49 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL GSM start/stop : the unit answers with SMS messages containing the command outcome. The GSM module is turned off or on: “GSM ON” if the GSM module is ON. “GSM TURNING OFF” if the GSM module is shutting down.
- Page 50 090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL Area inclusion/exclusion : the unit answers with one or more SMS messages containing the command outcome. For each involved area, the exclusion status is obtained: “area areaName BYPASSED” if the area is excluded.
-
Page 51: Remote Listening
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 12.3 Remote listening While receiving a voice communication, it is possible to activate the remote listening function by pressing “*” or “#”. It is then possible to stop the call by pressing “0” or “5”, as usual. -
Page 52: Central Unit Management With The E-Connect Platform
WEB services for the supervision and centralization of EL.MO. intrusion detection systems for both the installer and the final user. e-Connect is EL.MO.’s answer to the growing requests for an easy and intuitive tool, suitable for all and based on the most modern communication platforms. -
Page 53: Quick Remote Interrogation Guide
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 15. QUICK REMOTE INTERROGATION GUIDE Remote interrogation via SMS is possible if the control unit mounts a compatible GSM module. Send a properly formatted SMS message. The dialler will reply with an answer SMS message. Generic formatting is as follows: C.cccccc_X.X... -
Page 54: Notes
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 16. NOTES info@elmospa.com elmospa.com... -
Page 55: Table Of Contents
090010939 - PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL 17. TABLE OF CONTENTS 1. GENERALS ............... . . 3 2. - Page 56 17. TABLE OF CONTENTS ............. . 55 Hybrid multifunctional control units for intrusion detection mod. PREGIO2000, PREGIO1000BM and PREGIO1000 - USER MANUAL January 2016 edition, rev.
