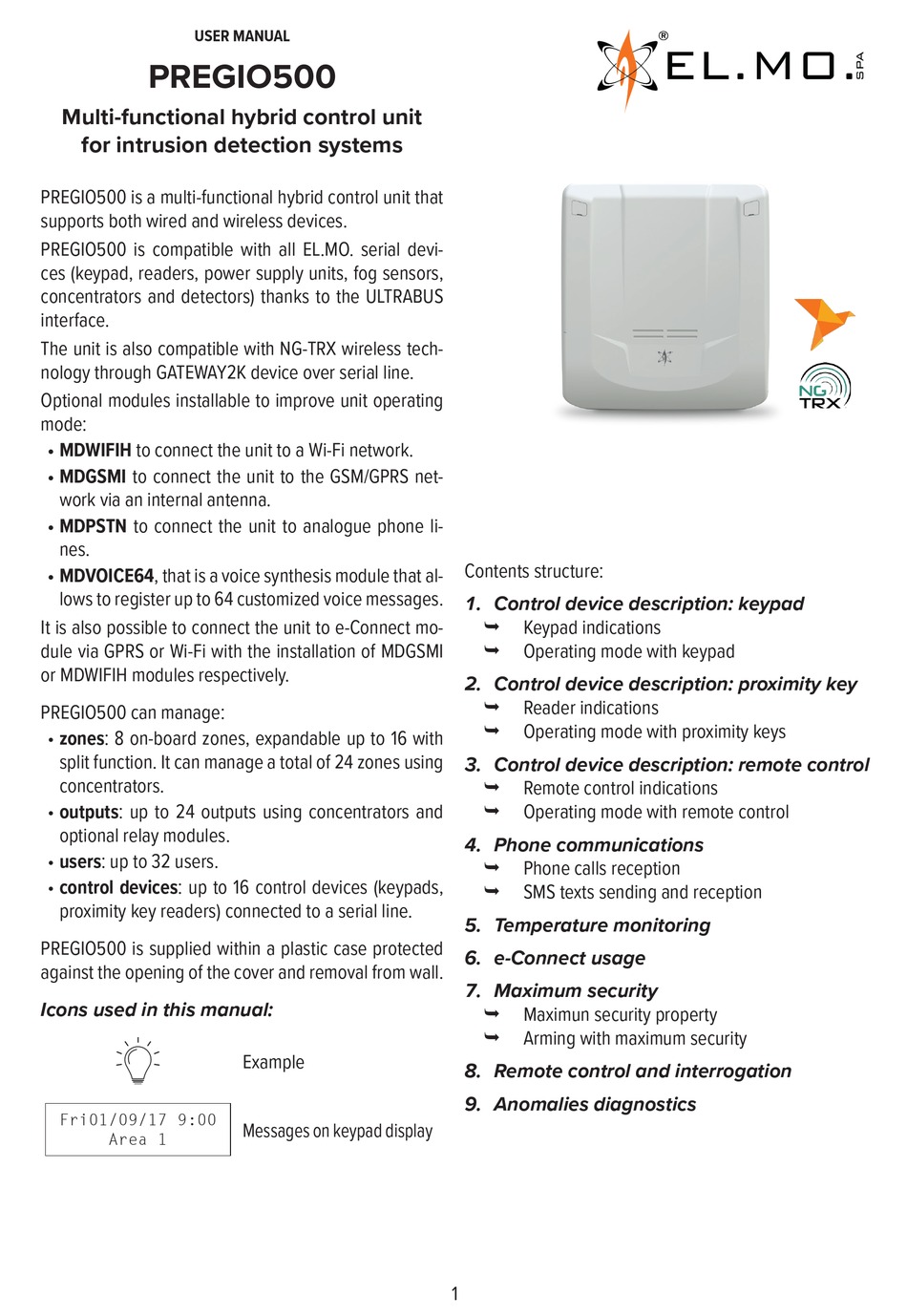

USER MANUAL
PREGIO500
Multi-functional hybrid control unit
for intrusion detection systems

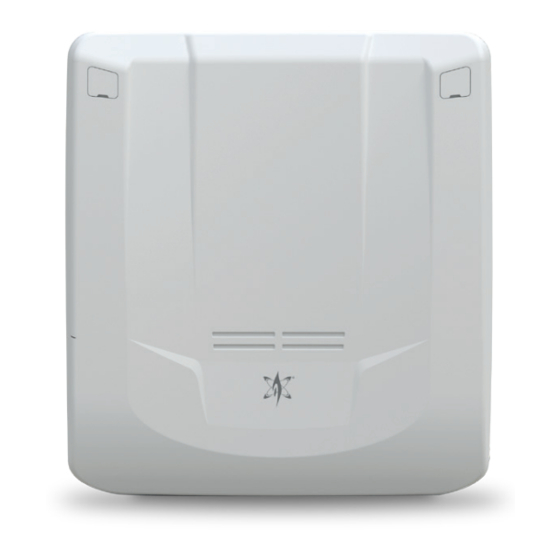

PREGIO500 is a multi-functional hybrid control unit that
supports both wired and wireless devices.
PREGIO500 is compatible with all EL.MO. serial devi-
ces (keypad, readers, power supply units, fog sensors,
concentrators and detectors) thanks to the ULTRABUS
interface.
The unit is also compatible with NG-TRX wireless tech-
nology through GATEWAY2K device over serial line.
Optional modules installable to improve unit operating
mode:
• MDWIFIH to connect the unit to a Wi-Fi network.
• MDGSMI to connect the unit to the GSM/GPRS net-
work via an internal antenna.
• MDPSTN to connect the unit to analogue phone li-
nes.
• MDVOICE64, that is a voice synthesis module that al-
lows to register up to 64 customized voice messages.
It is also possible to connect the unit to e-Connect mo-
dule via GPRS or Wi-Fi with the installation of MDGSMI
or MDWIFIH modules respectively.
PREGIO500 can manage:
• zones: 8 on-board zones, expandable up to 16 with
split function. It can manage a total of 24 zones using
concentrators.
• outputs: up to 24 outputs using concentrators and
optional relay modules.
• users: up to 32 users.
• control devices: up to 16 control devices (keypads,
proximity key readers) connected to a serial line.
PREGIO500 is supplied within a plastic case protected
against the opening of the cover and removal from wall.
Icons used in this manual:
Fri01/09/17 9:00
Area 1
Example
Messages on keypad display
Contents structure:
1. Control device description: keypad
Keypad indications
¬
Operating mode with keypad
¬
2. Control device description: proximity key
Reader indications
¬
Operating mode with proximity keys
¬
3. Control device description: remote control
Remote control indications
¬
Operating mode with remote control
¬
4. Phone communications
Phone calls reception
¬
SMS texts sending and reception
¬
5. Temperature monitoring
6. e-Connect usage
7. Maximum security
Maximun security property
¬
Arming with maximum security
¬
8. Remote control and interrogation
9. Anomalies diagnostics
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREGIO500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for El.Mo PREGIO500

Summary of Contents for El.Mo PREGIO500

  • Page 1 USER MANUAL PREGIO500 Multi-functional hybrid control unit for intrusion detection systems PREGIO500 is a multi-functional hybrid control unit that supports both wired and wireless devices. PREGIO500 is compatible with all EL.MO. serial devi- ces (keypad, readers, power supply units, fog sensors, concentrators and detectors) thanks to the ULTRABUS interface.

  • Page 2: Keypads Usage

    1. KEYPADS USAGE 8/16 Sectors per area mode With 8/16 sectors per area mode, each sector key is as- PREGIO control units are multi-area devices capable of sociated to sector groups (during unit configuration): managing up to 16 sectors. each sector key provides information about arming sta- During unit installation, sectors can be divided into: tus of the corresponding sectors.

  • Page 3: Information On Display

    1.2 Information on display It indicates arming status (“zones status” LED): Each keypad can control one (or more) pertaining • ON: no zones with alarm/tamper alarm events. The unit can be armed. area(s) and can display its status. The display will show GREEN details of all areas, one by one.

  • Page 4: Change Of Current Operating Area

    1.2.2 Change of current operating area 1.3 Status display Once an operating area has been selected, it is possible To change the current operating area, please follow be- to enter “status display” menu: information about such low steps: area will be displayed. - with keypad in idle mode press OK: the above row - Press arrow keys ( ...

  • Page 5: Tamper/Alarm Memories Status

    For some of the most common anomalies, please see 1.4 Arming from keypad “9. DIAGNOSTICS” on page 21. 1.4.1 Simple arming With simple arming, the sectors proposed to the user 1.3.3 Tamper/alarm memories status will be armed. The sectors proposed are set during sy- stem installation.

  • Page 6: Area Mode

    - If exit time has been set, it will be marked by beep Example sounds: leave the protected areas within the set time If sectors proposed for arming at the begin- walking through the path set. ning are number 1, 2, 3, 6, 7 - At the end of exit time, sectors proposed will be ar- med (sector keys remain lighted unless the option Area1...

  • Page 7: System Arming With Sectors Selection - 4 Areas 4 Sectors

    - At the end of exit time, sectors proposed will be ar- 1.4.5 Fast arming - 8/16 sectors per area med (sector keys remains lighted unless the option mode Hide Arming Status is enabled). Fast arming option can be enabled under ‘8/16 sectors per area’...

  • Page 8: System Disarming

    1.4.8  System disarming 1.6 User menu access from keypad - To disarm an armed system, key in user code follo- PREGIO500 control unit provides a user menu for basic wed by OK key. maintenance. - System disarming will be marked by beeping sounds.

  • Page 9: Limits To Installer Access

    - In user menu, use arrow keys  /  to go to MANA- Zone 001 BYPASS GE SIM BALANCE. Zone 001 - Press OK to enter the menu. - Press OK repeatedly to switch between READING To include the zone again, repeat the steps. ENABLED and DISABLED.

  • Page 10: Users Authorizations Management

    1.6.8 Users authorizations management Test interval is set during installation. The control unit yellow LED ON indicates the necessity of performing a The user who has been authorized during system instal- system test, and the following message will be displa- lation can change other users’ authorization to system yed among anomalies: access.

  • Page 11: Chime Management

    • BATTERY TEST: 2. PROXIMITY KEYS USAGE - Press OK to start the battery test that will check bat- With proximity keys users can arm/disarm systems quic- tery efficiency. kly by drawing them close to system readers (example - When the test is positive, the message TEXT EXE- I8, I66, IZENITH).

  • Page 12: Etrzenith

    If arming is not allowed because of dialler fault or lack of supervision events, users can force system arming only During arming procedure, red-lighted using control devices that control areas involved in the LEDs will indicate sectors arming status. arming lock. - When arming can be forced, the red arming LED will start blinking rapidly.

  • Page 13: Operations With Remote Controls

    3.2.3 System disarming Press “Total disarming” key (B). 3.2.4 System disarming - duress mode Users may be forced to disarm the system with a remo- te control device (duress event). To protect against this possibility, users may ask installers to activate the “Dou- ble confirmation”...

  • Page 14: Remote Listening

    MDGSMI module, users can su- 5.  TEMPERATURE MANAGEMENT spend / activate again the balance control: PREGIO500 is equipped with a temperature detector • from keypad (SIM BALANCE MANAGE in user menu) measuring the temperature inside the housing.

  • Page 15: E-Connect Usage

    Weekly Programmer Max Security mode. The User Max Security property is reset at any disar- For the correct use of e-Connect software, PREGIO500 ming; when a sector armed with Max Security property unit has to be equipped with MDWIFIH or MDGSMI mo- is disarmed the property is reset.
  • Page 16 Starting In detail, if a sector is armed in Weekly Pro- Action status status grammer Max Security mode and a user with max security property performs a disarm, the Arming made by user / weekly programmer without Max Weekly Programmer Max Security property Security remains active.

  • Page 17: Remote Interrogation And Remote Control

    8. REMOTE INTERROGATION AND REMOTE Set Max Security by weekly CONTROL programmer MDGSMI module installed onto the control unit allows using the remote interrogation function via SMS to re- Special cases: ceive information about system status or send comman- • A max security arming can be performed while the ds to the unit.

  • Page 18: Answers To Report Request Messages

    8.2 Answers to report request messages Example 8.2.1 Control unit report User with code 123456 requires a control unit status report. The user will text the fol- The first part of the message will be one of the following lowing code: messages: C.123456 R.C Replying SMS: first part Indication...

  • Page 19: Zones Report

    8.2.2 Zones report 8.2.5 Outputs report The control unit replies with SMS texts containing the The control unit replies with SMS texts containing ou- status of the zones that pertain to the user (one per tputs status, one text per each zone pertaining to the zone).

  • Page 20: Replies To Command Messages

    8.3 Replies to command messages 8.3.5 Bypass/include zone The control unit will reply with one SMS (or more) contai- The control unit will reply with one SMS per zone: ning the response to the command sent. Replying SMS Indication 8.3.1 Arm/disarm commands zone [Zone Name] BYPAS- The zone is excluded.

  • Page 21: Diagnostics

    9. DIAGNOSTICS 10. ENERGY SAVING In case of anomalies, the yellow LED indicator on the Installers can activate functions for energy saving: keypad will keep blinking. • Yellow LED OFF - no anomalies: the yellow LED will be off (at keypads and readers connected) when the- Go to ANOMALY STATUS menu to see anomalies.

  • Page 22: Eu Declaration Of Conformity

    12. EU DECLARATION OF CONFORMITY General warnings • This device has been designed, built and tested with the utmost care and attention, adopting test and inspection procedures in compliance with current legislation. Full compliance of the working specifications is only achieved in the event the device is used solely for its intended pur- The product complies with the current European EMC and pose, namely:...

  • Page 23: Table Of Contents

    • Fundamental safety rules 14. CONTENTS • The use of the device is forbidden for children and unassi- 1. KEYPADS USAGE ........2 sted disabled individuals.
  • Page 24 The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA | Via Pontarola, 70 | 35011 Campodarsego (PD) - IT Tel. +39.049.9203333 | Fax +39.049.9200306 | Help Desk +39.049.9200426 | www.elmospa.com | international@elmospa.com...
