Summary of Contents for El.Mo TITANIA
- Page 1 TITANIA and TITANIAPLUS Intrusion detection control unit with embedded OS 090020692 IT08020000001624...
- Page 2 090020692 - USER MANUAL - TITANIA v.6 series FOREWORD FOR INSTALLERS Please follow carefully the specifications about electric and security systems realization further to the manufacturer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifications and different safety performance levels that should be proportioned to the user needs.
-
Page 3: Generals

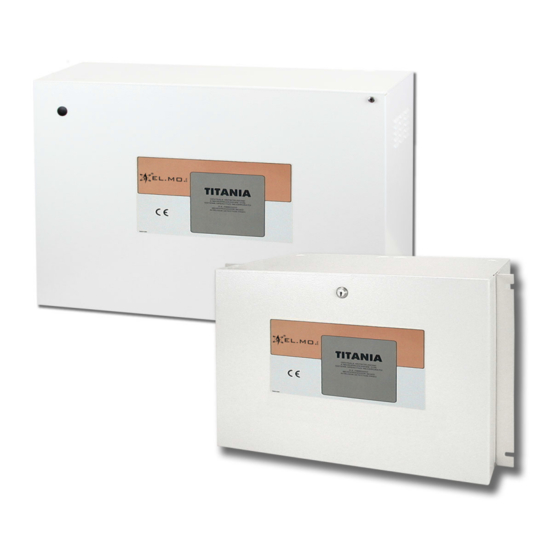

TITANIA v.6 series - USER MANUAL - 090020692 1. GENERALS The TITANIA series intrusion detection control units have been especially created for high quality intrusion detec- tion systems suitable for large banks, postal offices, company sites and multi-plant applications; they feature a high data processing power, paired with great usability and with up to 1024 inputs/outputs for the TITANIAPLUS model. -
Page 4: Keypads
090020692 - USER MANUAL - TITANIA v.6 series 2.2 Keypads Keypads feature an alphanumeric pad, a series of function buttons (labelled OK, STOP, arrow up and arrow down), a series of sectorization buttons (labelled S1 to S4), a display for the visualization of system messages, visualization LEDs and, in some models, an integrated proximity key reader. -
Page 5: User Management
TITANIA v.6 series - USER MANUAL - 090020692 3. USER MANAGEMENT Two user levels exist: • User (Standard) • Installer 3.1 User Users are enabled to arm and disarm a specific subset of the system (one or more sectors). Users can also be enabled for max security arming. -
Page 6: User Management From The Keypad
090020692 - USER MANUAL - TITANIA v.6 series 4. USER MANAGEMENT FROM THE KEYPAD The installer can access the system and manage the users form the “Manage users” entry. Once a user code has been selected, the following options are available: •... -
Page 7: User Interface
TITANIA v.6 series - USER MANUAL - 090020692 5. USER INTERFACE 5.1 Initial definitions If the “Timeout” function is active, keypads used for programming automatically exit the configuration menu after 30 seconds from the last button pressed / command given (except where otherwise stated). -
Page 8: Operativity
090020692 - USER MANUAL - TITANIA v.6 series 6. OPERATIVITY Note: the examples below use the NIRVA keypad. The buttons are shaped differently on different keypads. 6.1 General indications international@elmospa.com elmospa.com... -
Page 9: User Access
TITANIA v.6 series - USER MANUAL - 090020692 6.2 User access Despite there being 256 available users, only the first 3 are active after a factory reset. New users have to be activated by the installer, using the configuration software. -
Page 10: System Or Area Arming
090020692 - USER MANUAL - TITANIA v.6 series 6.3 System or area arming Perform a login (see “User access” on page 9) or keep the proximity key near to the reader for a few seconds. The arming procedure begins as soon as the sector lights start blinking fast. -
Page 11: Basic Maintenance Access
TITANIA v.6 series - USER MANUAL - 090020692 6.6 Basic Maintenance access For users authorized to the Basic Maintenance, use this variation of the login procedure to access the Basic Main- tenance menu. Use the arrow buttons to cycle through the menu entries, press OK to enter one. -
Page 12: Zones Test
090020692 - USER MANUAL - TITANIA v.6 series 6.6.6 Zones test Browse to “Zones test” and press OK. If no zone is set to “walk test”, a message will appear: press STOP. Otherwise, press OK again to start the test. -
Page 13: Change Code
TITANIA v.6 series - USER MANUAL - 090020692 6.6.11 Change code See “User password change” on page 11. The “Manage Users” entry in the maintenance menu includes a reset password function that allows to reset the password to its default. -
Page 14: System Test
090020692 - USER MANUAL - TITANIA v.6 series 7. SYSTEM TEST The security system supervisor has to run periodical tests to ensure that the system works properly. The control unit has an internal reminder timer that can be set to 4 to 52 weeks but can not be deactivated. -
Page 15: Table Of Contents
TITANIA v.6 series - USER MANUAL - 090020692 8. TABLE OF CONTENTS 1. GENERALS ............... . . 3 2. - Page 16 Intrusion detection control unit with embedded OS - TITANIA and TITANIAPLUS v.6 - USER MANUAL October 2017 edition 090020692 The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy...
