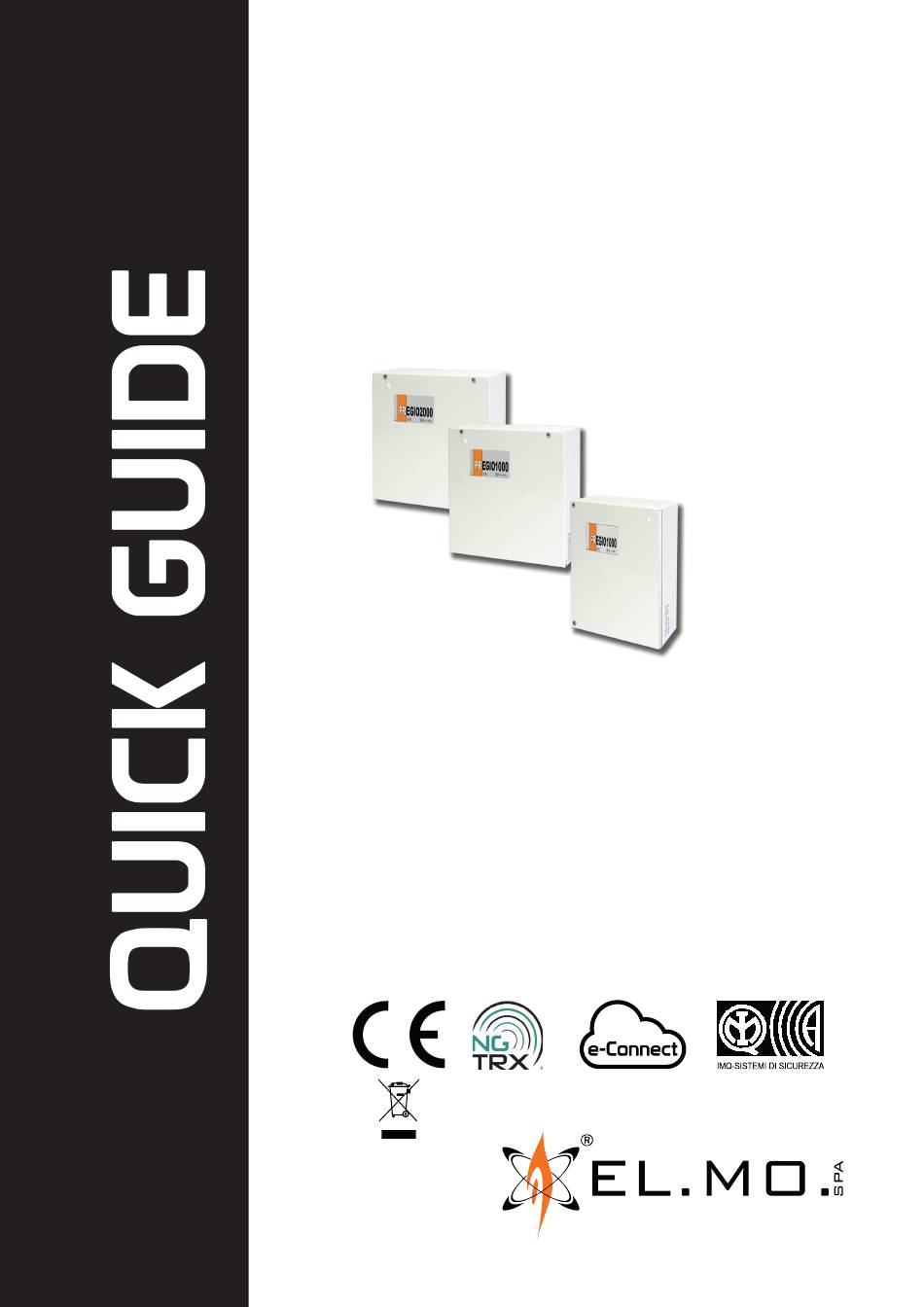

- Page 1 PREGIO series Multifunctional intrusion detection control units with hybrid configuration 090011158 Compatible with the Compatible with e-Connect platform GATEWAY2K...
-
Page 2: For The Installer
PREGIO series - QUICK GUIDE - 090011158 FOREWORD FOR THE INSTALLER: Comply strictly with current standards governing the installation of electrical systems and security systems, and with the manufacturer’s directions given in the manuals supplied with the products. Provide the user with full information on using the system installed and on its limitations, pointing out that there are different levels of security performance that will need to suit the user’s requirements within the constraints of the specific applicable standards. -
Page 3: Installation
PREGIO2000/PREGIO1000BM Install the wired devices (except sirens) and connect them to the control unit as flap opening shown in their manuals or in the PREGIO series technical manual. Battery Place the backup battery (12V/7Ah max for PREGIO1000, 12V/18Ah max for PREGIO1000BM/PREGIO2000) inside the control unit container;... - Page 4 4. Test the control unit. Proceed with chapter 4 Upon connection of a GATEWAY2K, the PREGIO series control units can support NG-TRX devices. Connect and program at least one GATEWAY2K device and then the NG-TRX-related entries will appear in the keypad menu.
- Page 5 090011158 - QUICK GUIDE - PREGIO series 3.4 Exit and siren time 3.5 System lock 3.3 User access levels Browse the System Settings menu. To perform maintenance, to install Browse the System Settings menu. additional devices or to substitute existing ones, “lock” the control unit...
- Page 6 PREGIO series - QUICK GUIDE - 090011158 3.6 Reset while powered To reset the system while it is on: 1. enter the configuration menu using the installer code and lock the system from the proper menu (see section 3.5); 2. open the control unit container;...
- Page 7 090011158 - QUICK GUIDE - PREGIO series 4.3 Dialler test For this test to be possible, a telephone module has to be installed, at least one telephone number has to be assigned to the “Periodic call” event and there has to be a PSTN or GSM line.
- Page 8 PREGIO2000 bit.ly/3kjcstg bit.ly/30uNDm9 bit.ly/3ki8IIb PREGIO series - Multifunctional intrusion detection control units with hybrid configuration QUICK GUIDE - July 2019 edition, rev. 08-2020 090011158 The information and product features herein are not binding and may be changed without prior notice.
