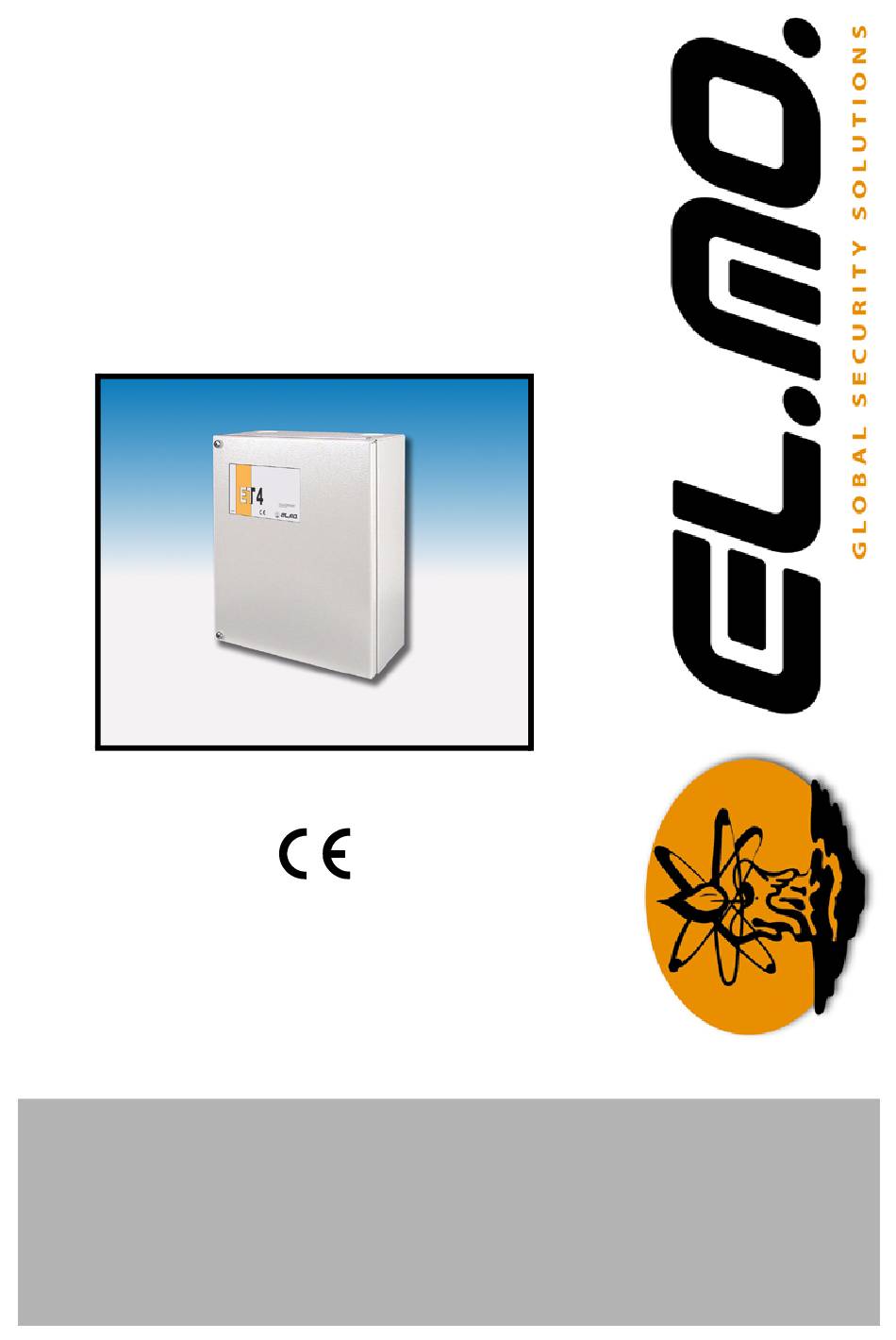

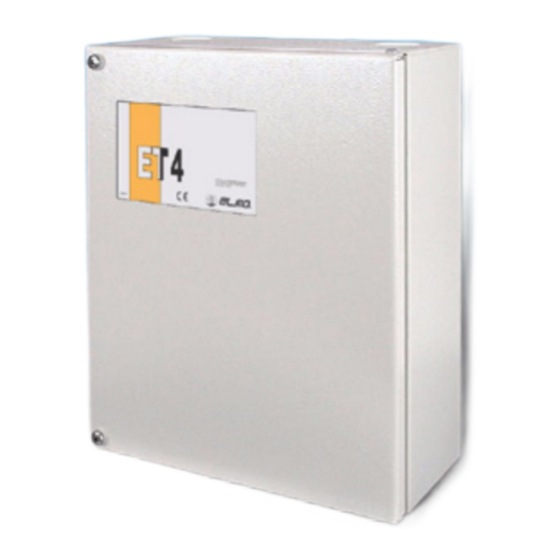

- Page 1 Microprocessor-based control units with remote assistance function USER AND PROGRAMMING MANUAL...
- Page 2 Some products incorporate rechargeable or non rechargeable batteries as emergency power supply. Their wrong connection may damage the product, properties and the operator’s safety (burst and fire). Your dealer: 2 - ET4 - USER AND PROGRAMMING MANUAL...
-
Page 3: Generals
ET4 units can also be controlled by an external security control device wired to zones set to KEY option, and can communicate via radio links of surveillance centres for remote arm/disarm. -
Page 4: Led Indicators
= General Alarm memory: OFF = No alarms in progress. ON = Tamper alarm cycle (Relay enabled). Slow blinking = Presence of events on tamper memory. Fast blinking = Intrusion alarms memory display. 4 - ET4 - USER AND PROGRAMMING MANUAL... -
Page 5: Keypad Keys
LED Indicates the display condition. Press STOP key to go back to standard di- splay. Standard display will be resumed also after 6 secs since last key has been pressed. 3. IMPORTANT NOTE All symbols and signs used in this manual refer to Nirva keypad. ET4 - USER AND PROGRAMMING MANUAL - 5... -
Page 6: Control Unit Controls
MARKED BY THE INTERNAL BUZZER 4.3 Special functions with user code U U U U U U USER CODE ( DEFAULT 1 1 1 1 1 1 ) CONTROL MODE PROGRAMMING MAINTENANCE 6 - ET4 - USER AND PROGRAMMING MANUAL... -
Page 7: Unit Disarming With Proximity User Key
5 seconds from key presentation. NOTE for Midas keypad: if you present Proxi key to the sensitive area, keypad built-in buzzer will generate a series of beeps. The buzzer can be silenced during installation. ET4 - USER AND PROGRAMMING MANUAL - 7... -
Page 8: Unit Setup
USER CODE (DEFAULT 1 1 1 1 1 1 ) U U U U U U U U U U U U CONTROL MODE CONTROL MODE MAINTENANCE MENUS with TIME OUT MENUS without TIME OUT 8 - ET4 - USER AND PROGRAMMING MANUAL... -
Page 9: Menu Available For Users After Having Setup Installer Code
U U U U U U USER CODE (DEFAULT 1 1 1 1 1 1 ) U U U U U U U U U U U U CONTROL MODE MAINTENANCE MENUS without TIME OUT ET4 - USER AND PROGRAMMING MANUAL - 9... -
Page 10: Setup Menu With User Code After Having Setup Relevant Code
IT HAS TO BE CREATED FROM USER CODE N N N N N N N N N N N N N N N N CONTROL MODE CONTROL MODE MAINTENANCE MENUS with TIME OUT MENUS without TIME OUT 10 - ET4 - USER AND PROGRAMMING MANUAL... -
Page 11: Setup Procedure - Table 0
Start System Tamper Relay - Communication Failed Alarm reset System Test Executed System Access Tamper Reset To modify displayed user code. Default: user no.1 = 111111 Exit without Exit and saving. save ET4 - USER AND PROGRAMMING MANUAL - 11... -
Page 12: Setup Procedure - Table 1
5.5 Setup Procedure - Table 1 12 - ET4 - USER AND PROGRAMMING MANUAL... -
Page 13: Setup Procedure - Table 2
Default USER 1 Edit and save. Code: 6 figures max (different USER/USER) Browse among users. Delete Exit without Default USER 1 = 111111 saving Select user Edit YES/NO Exit and save ET4 - USER AND PROGRAMMING MANUAL - 13... -
Page 14: Setup Procedure - Table 3
Zone set for FLOOD events. of control device used. Control unit arm/disarm command will be performed when the zone enters normal status again. KEY zone controls assigned partitions only. Default setting for standard zones only. 14 - ET4 - USER AND PROGRAMMING MANUAL... - Page 15 1 pulse of inertial detector. Default 010 Min. Max. Exit and save Default 010 Min. Max. Exit and save NOTE: Default value 10 corresponds to 3 pulses of roll-up shutter detector. ET4 - USER AND PROGRAMMING MANUAL - 15...
- Page 16 Area code to access the local line from a PABX extension. When the dialer is active ( ) users can display digital menu and access configuration. Note: digit 6-figure codes. Exit without saving Exit and save 16 - ET4 - USER AND PROGRAMMING MANUAL...
- Page 17 Example of channel ID in Hex mode: CH 1= Hex 1 CH 10= Hex A Alarm codes shall be agreed upon CH 11= Hex B CH 16= Hex 0 with the surveillance center. ET4 - USER AND PROGRAMMING MANUAL - 17...
- Page 18 IMPORTANT: voice calls to a single phone number can be locked by pressing key ‘5’ on device keypad. All calls triggered by a special event can be locked by pressing ‘0’ on device keypad 18 - ET4 - USER AND PROGRAMMING MANUAL...
- Page 19 Phone number of the remote assistance centre for call back mode. Start editing, Exit without save and exit. saving Sets up to 15 rings. Default 0: no answer to incoming calls. Phone dialer calls sequences: ET4 - USER AND PROGRAMMING MANUAL - 19...
- Page 20 The alarm LED will reset at the end of the system control procedure. Available values for weeks: 4 (Default) to 52 weeks max. See NOTE below. 20 - ET4 - USER AND PROGRAMMING MANUAL...
- Page 21 System arm/ disarm, bypass/include zones, display events log, change user’s code, phone number maintenance, system control. - Users will no longer be allowed to enter programming mode with UUUUUU except to change their code. Exit ET4 - USER AND PROGRAMMING MANUAL - 21...
- Page 22 Internal buzzer silencing during exit time and prealarm. The zone will autodisable after three consecutive alarms. Management of the protection against control devices, keypads and key points tamper. Exit and Select save. YES/NO 22 - ET4 - USER AND PROGRAMMING MANUAL...
-
Page 23: Notes
6. NOTES ET4 - USER AND PROGRAMMING MANUAL - 23... -
Page 24: Table Of Contents
7. CONTENTS ................24 Microprocessor-based control units with remote assistance function - ET4 control unit...
