BDI KAVA 9617 User Manual

Bed
Hide thumbs

Advertisement

Table of Contents

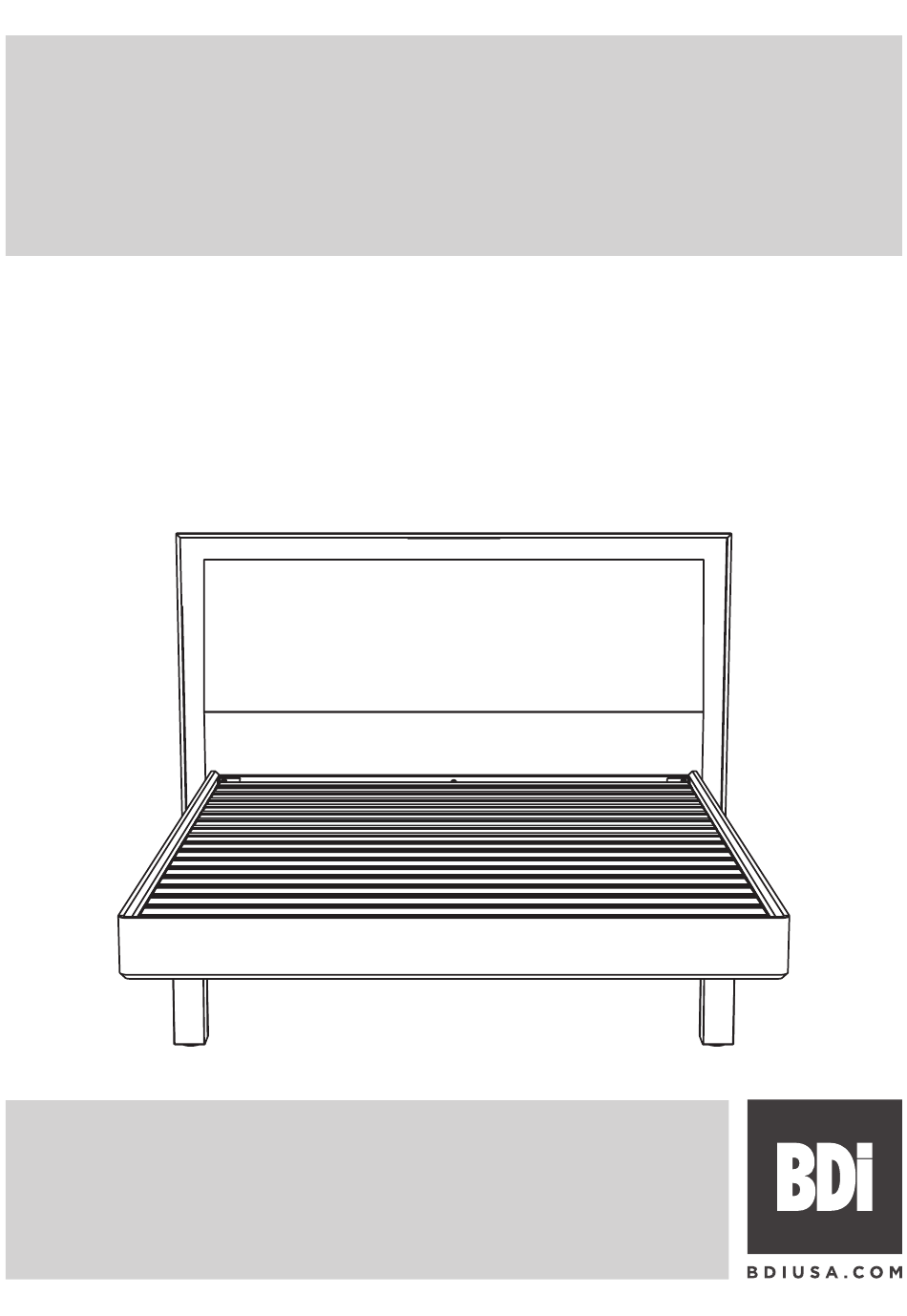

KAVA
9617 & 9619
™
BED
USER MANUAL
LET'S GET STARTED.
DESIGN MATTHEW WEATHERLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAVA 9617 and is the answer not in the manual?

Questions and answers

Related Manuals for BDI KAVA 9617

Summary of Contents for BDI KAVA 9617

  • Page 1 KAVA 9617 & 9619 ™ USER MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
  • Page 3 Congratulations on the purchase of your KAVA bed from BDI. Your bed has been designed to provide a lifetime of enjoyment. This manual will provide assembly instructions and other helpful information to ensure you get the most out of your product.
  • Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface, such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
  • Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS Footboard Rail (C3) QTY: 1 Headboard Rail (C4) QTY: 1 Headboard Corner Footboard Corner QTY: 2 QTY: 2 Side Support Bracket (C7) QTY: 2 Bracket (C5) Bracket (C6) Long Center Leg Short Center Leg QTY: 1 QTY: 2 Leg Support Rail (C8)
  • Page 6 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS Headboard (C15) QTY: 1 Bed Slats (C16) QTY: 2 6 | BDIUSA.COM KAVA BEDS...
  • Page 7 KAVA BED SET-UP CONFIGURATIONS KAVA’s adjustable platform and frame allow the bed to accommodate a variety of mattresses, positioning the top of the mattress at the user’s preferred height. The bed can accommodate mattresses from 8"-16", with the recommended height for the top of the mattress being around 24"...
  • Page 8 ASSEMBLY STEP 1. INSTALL CAM LOCKS, CAM STUDS, AND DOWELS Lay the Side Rails (C1 & C2) and the Footboard and Headboard Rails (C3 & C4) on a soft, non- CAM LOCK – H1 marring surface, like carpet. Insert 8 Dowels (H3) and 4 Cam Studs (H2) into the holes on the ends of the Rails, as shown.
  • Page 9 STEP 2. CONNECT RAILS ASSEMBLY Connect the Side Rails (C1 and C2) to the Headboard Rail (C4). Tighten each Cam Lock HEX WRENCH – T2 (H1) with a 6mm Hex Wrench (T2). Connect the Footboard Rail (C3) to the ends of the Side Rails.
  • Page 10 ASSEMBLY STEP 3. ATTACH CORNER BRACKETS Attach the Headboard Corner Brackets (C5) to the corners near the Headboard Rail (C4) using HEX WRENCH – T1 8 Screws (H4). Tighten with Hex Wrench (T1). Attach the Footboard Corner Brackets (C6) to the corners near the Footboard Rail (C3) using SCREW–...
  • Page 11 STEP 4. CONNECT SIDE SUPPORT BRACKETS ASSEMBLY Connect the 2 Side Support Brackets (C7) to the Side Rails according to desired platform position. HEX WRENCH – T1 For a HIGH PLATFORM: mount the Side Support Brackets (C7) to the upper threaded inserts SCREW–...
  • Page 12 KAVA Legs can be attached in 1 of 3 positions. Please confirm the dimensions and compatibility of your adjustable bedframe before purchase, and refer to the BDI Adjustable Bed Guide on page 21 to determine which leg position works best for your adjustable bed frame.
  • Page 13 STEP 6. ATTACH LEG/RAIL CONNECTOR AND LEGS ASSEMBLY For a HIGH FRAME position: insert the 2 Long Legs (C13) into the Leg Support Rail (C8), then HEX WRENCH – T1 thread 2 Screws (H5) through the top and tighten with 4mm Hex Wrench (T1). Thread a Leveler (H6) onto the end of each leg.
  • Page 14 High Frame Low Frame Now is a great time to plug your headboard’s integrated power sources and lighting into the nearest available outlet. The BDI KLEETS installed on the back of the Headboard can be used to wrap excess wires.
  • Page 15 STEP 8. CONNECT BED FRAME TO HEADBOARD ASSEMBLY Carefully lift the bed frame and pull it close to the Headboard (C15), then lower the Frame onto the Headboard Cleat (C11). Fasten the bedframe to the Headboard (C15) using 4 Screws (H8). Insert them into the HEX WRENCH –...
  • Page 16 ASSEMBLY STEP 9. INSTALL CENTER RAIL & LEGS Thread the appropriate leg sections onto the Center Support (C12) using the Long Center Leg HEX WRENCH – T1 (C9) and 2 Short Center Legs (C8) as needed. Complete the leg by installing a Leveler (H6) at the bottom.
  • Page 17 STEP 10. INSTALL SLATS ASSEMBLY Starting at the Headboard (C15), unroll the Bed Slats (C16) and place them on the platform with the Velcro facing down. Press to secure in place. NEED ASSISTANCE? customerservice@bdiusa.com | 17...

  • Page 18: Fine Tuning

    FINE TUNING FINAL ADJUSTMENTS Before adding your mattress, check that your headboard is level and adjust the floor levelers as needed. Both your bed’s frame and the headboard include floor levelers. Check you bed’s legs for even contact with the floor and adjust floor levelers as needed. Extend wall levelers until they contact your wall.
  • Page 19 ADJUSTABLE MATTRESSES AND BED FRAMES ADJUSTABLE MATTRESS These mattresses have built in motors and can be treated as regular mattresses. Establish the configuration of your platform and frame based on your mattress height. Run the necessary wiring through the cable management openings to plug in your mattress.
  • Page 20 ADJUSTABLE MATTRESSES AND BED FRAMES ADJUSTABLE BED FRAMES WITH LEGS For some adjustable bed frames, legs are required to provide proper support or to provide clearance under the frame for the motor and mechanisms to operate. In these instances, the LINQ bed’s inner platform, center and side rails will not be used.

  • Page 21: Additional Dimensions

    ADDITIONAL DIMENSIONS QUEEN: 61" 154 cm KING: 77" 195 cm TOP VIEW OF BED FRAME SLATS AND CENTER & INNER SIDE RAILS REMOVED QUEEN: 49" 125 cm KING: 65" 165 cm 5.9" 5.9" 15 cm 15 cm 3" 1" | 3 cm 7.5 cm 3"...

  • Page 22: Care And Maintenance

    While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please avoid positioning your BDI cabinet in any area with ample direct sunlight.

  • Page 23: Warranty

    Select chairs carry coverage for five (5) years from the date of the product delivery, based on an 8-hour daily use pattern. BDI reserves the right to refine or update its warranty from time to time. See the complete and latest warranty document at www.bdiusa.com/warranty.
  • Page 24 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. KAVA & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2024, BDI | V.12.23.2024 Made in Vietnam.

This manual is also suitable for:

Kava 9619
