BDI Avion Assembly Instructions

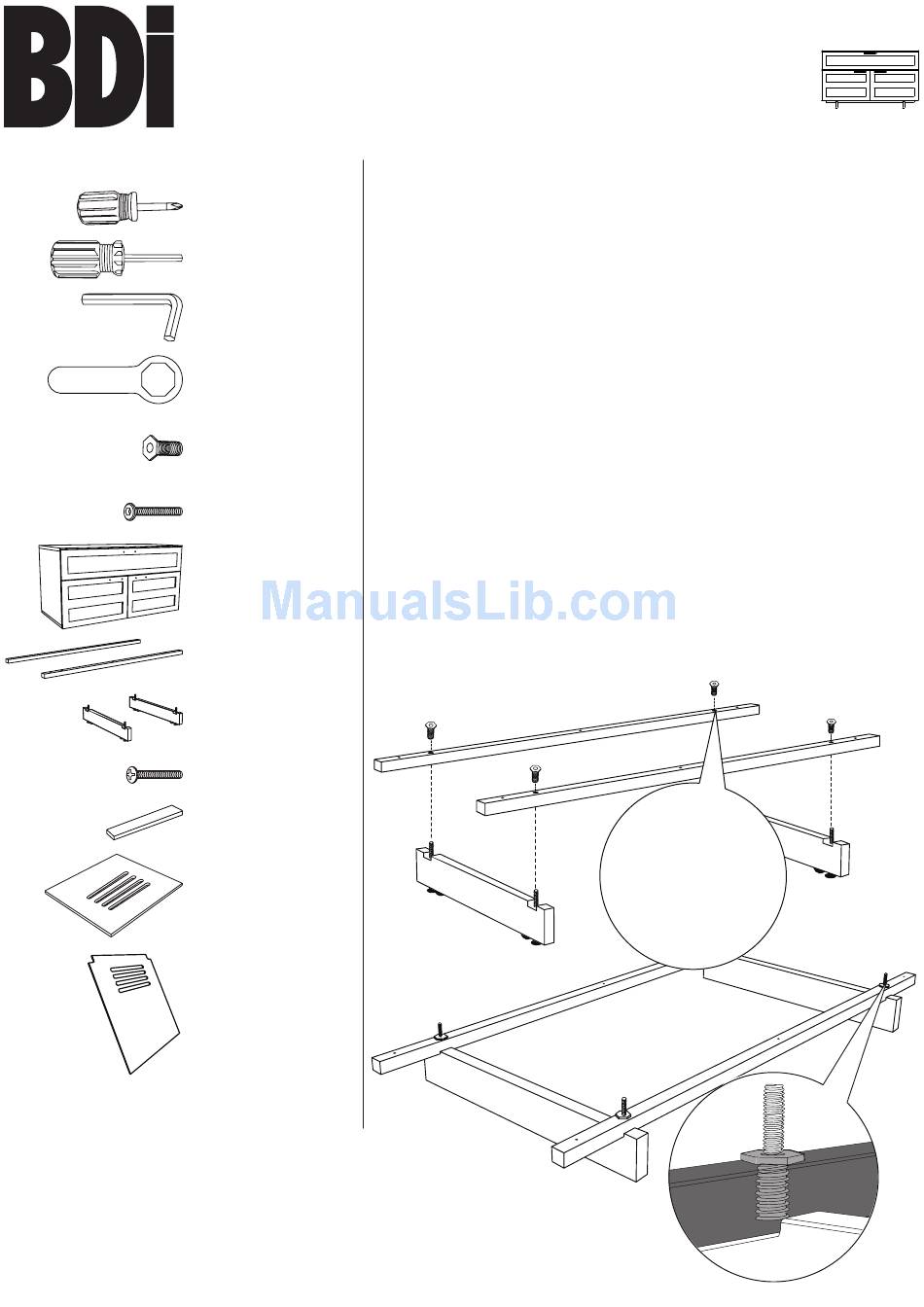

Component List
Designed by BDI Design Studio.
These distinctive product configurations are protected by US and
international patents, trade dress, and/or copyright laws. "Avion"
and BDI are trademarks of Becker Designed, Inc. All Rights
reserved. ©2009, BDI
Made in China. 051209v1
A
®
v i o n
8928
A - Phillips Screwdriver
x 1
B - 4mm Hex Driver
x 2
C - Hollow Bolt Wrench
x 1
D - Hollow Bolts x 4
Pre-installed on
Metal Legs (H)
E - 1/4"-20 x 2"
Machine Screw x 6
F - Assembled Cabinet
x 1
G - Metal Rail x 2
H - Metal Leg x 2
I- M4 x 25mm Screws
x 6
J - Handle x 3
K - Adjustable Shelf
x 2
M - Back Panel x 2
a s s e m b l y i n s t r u c t i o n s
bdiusa

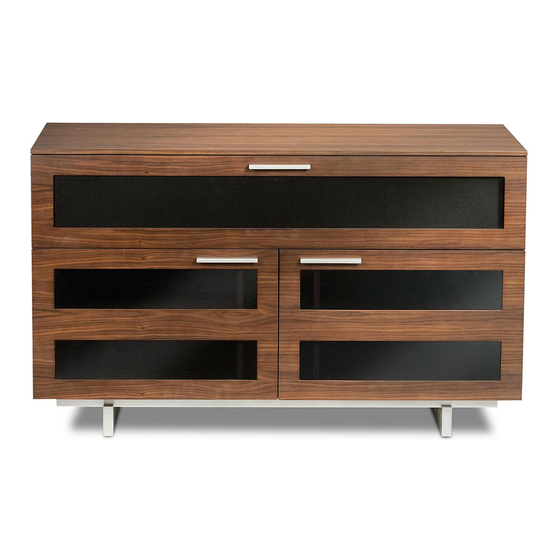

Your Avion ® Home Theater Furniture is engineered for easy
assembly. Carefully follow this procedure to prevent any
damage.
Placement and Maintenance
Avion ® Home Theater Furniture is designed for indoor use
on level floors. Clean glass with glass cleaner, and steel
parts and wood veneer with a moist cloth.
Step 1
Unpack and identify the components at left. Note that some
components are shipped inside the cabinet. The assembly
workspace should be a non-marring surface such as carpet.
For missing hardware pieces, please contact BDI Customer
Service at customerservice@bdiusa.com. For all other
concerns, please contact your BDI Retailer.
Step 2
Build and Install Base Assembly
First, remove all internal components from the cabinet
including shelves, hardware box and legs. Carefully lay
Assembled Cabinet (F) back-side down. Using the Hollow
Bolt Wrench (C), remove the four (4) pre-installed Hollow
Bolts (D) from Metal Leg (H). Screw the Metal Rail (G) to
the top of Metal Leg (H) with Hollow Bolts (D)
Detail view of Hollow
Bolts (D) connecting the
Metal Rail (G) to the top
of Metal Leg (H).
1
.
com customerservice
NOTE: Make sure
that the larger
bolt opening on
Metal Rail (G)
faces toward the
floor.
Completed base assembly
@ .
bdiusa com
.
D
G
H
I
H
D
G
H
