Seat post
4
2
5 2

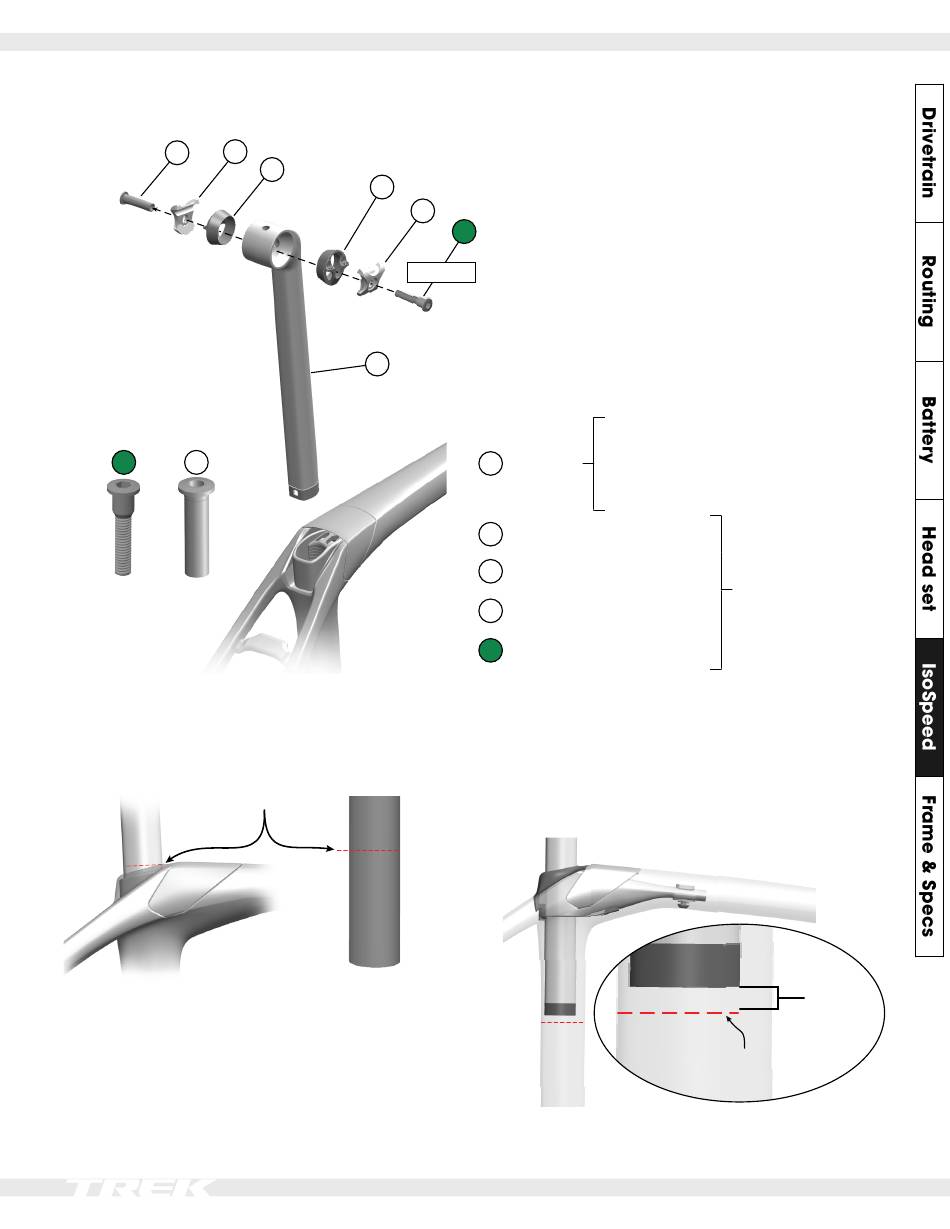

Minimum insertion
The seat post must be inserted into the seat tube far
enough that the minimum insertion line is at or below the
top tube (as shown below).
Minimum insert
3
3
4
8-10 Nm
1
5
Short – W5285077*
Long – W5285078*
Seat
1
post
Short (20 mm offset) – W5285075*
Tall (20 mm offset) – W5285076*
2 Bolt insert
3 Barrels
Saddle clamp ears (7 mm x
4
7 mm) – 421564
5 Bolt (M6x16 mm)
Maximum insertion
NOTICE: Do not lower the seat post all the way to the stop
point – this can inhibit IsoSpeed movement and cause
damage to the seat post. There must be at least a 5 mm
gap between the bottom of the seat post and the stop bar.
NOTE: For exact measurements (BB to saddle rails), see
the Geometry table on Trekbikes.com.
2023 Domane+ SLR
272628
>5mm
Stop point
