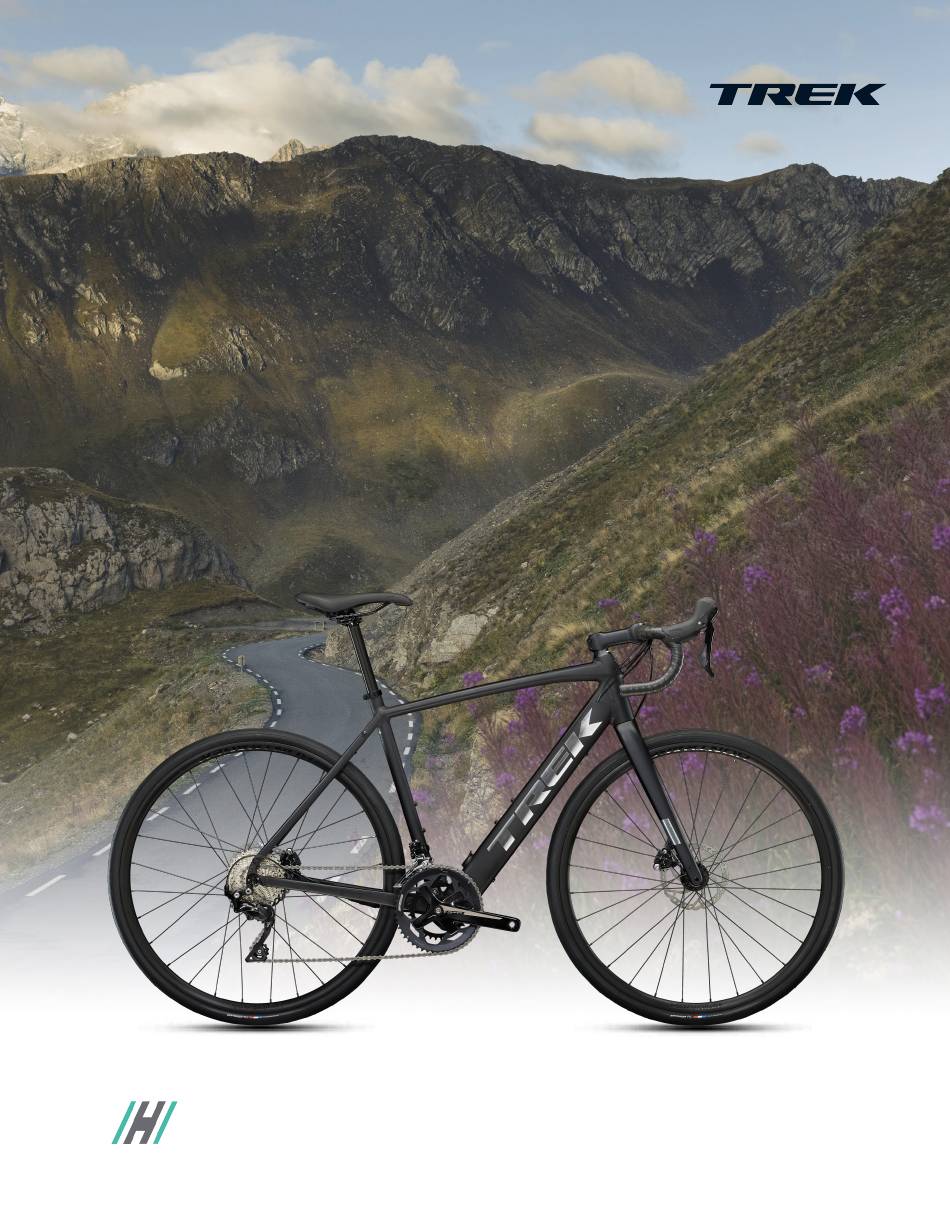

- Page 1 2023 DOMANE+ AL SERVICE MANUAL...
- Page 2 • Owner’s Manual — comprehensive instructions that the bicycle and result in injury to the rider. come with your bicycle • Hyena E-bike Owner’s Manual — detailed instructions on the e-system found under Electric bikes > 2023 Copyright 2022 Trek Bicycle Corporation All Rights Reserved...
- Page 3 2023 Domane+ AL Brake/shift routing Derailleur hanger bolts (M3x6.4mm) — W318604 Derailleur hanger — W5268484 Rear brake hose Rear derailleur cable Front brake hose Front derailleur cable...
- Page 4 2023 Domane+ AL E-system 11Nm 11Nm Cable guide Hub motor — W5266204 5284388 Cable guide bolt (M4x6mm) Remote — W5257327 Torque sensor — W5257770 Anti-rotational flange nuts 5288641 Controller — W5252986 Axle bolts W5255878 Charge port cover — W5263927 Battery —...
-
Page 5: Remove The Rear Wheel
2023 Domane+ AL Remove the rear wheel Shift to the smallest rear cog (highest gear) and front, inner chainring. Unplug the motor cable at the chainstay and remove the cable from the cable guide (10). Remove both axle bolts (13) and flange nuts (12). - Page 6 2023 Domane+ AL Remove the bottom bracket/torque sensor AUTHORIZED DEALERS ONLY: Only authorized dealers should perform service on the e-system. Improper handling, tools used, or torque applied to these parts may result in damage to the e-system components and cables. Remove the three bolts from the bottom bracket Unplug the torque sensor cable.
- Page 7 2023 Domane+ AL Install the bottom bracket/torque sensor AUTHORIZED DEALERS ONLY: Only authorized dealers should perform service on the e-system. Improper handling, tools used, or torque applied to these parts may result in damage to the e-system components and cables. Install the driveside cup and tighten it to 35Nm.
-
Page 8: Remove The Battery
2023 Domane+ AL Remove the battery AUTHORIZED DEALERS ONLY: Only authorized dealers should perform service on the e-system. Improper handling, tools used, or torque applied to these parts may result in damage to the e-system components and cables. Remove the bottom bracket/torque sensor (see Rotate the bicycle and slide the battery assembly out. -
Page 9: Install The Battery
2023 Domane+ AL Install the battery AUTHORIZED DEALERS ONLY: Only authorized dealers should perform service on the e-system. Improper handling, tools used, or torque applied to these parts may result in damage to the e-system components and cables. Use the four bolts (7) to attach the controller to the Install the bottom bracket/torque sensor (see battery (if they are disconnected). -
Page 10: Fork And Headset
2023 Domane+ AL Fork and headset Top cover — W590959 Compression ring — W532842 Upper headset bearing — W531676 Lower headset bearing — 417578 30mm Optional spacers... - Page 11 2023 Domane+ AL Chainkeeper Bolt (M4x22mm) Chainkeeper 5305773 Flat washer (M5x10mm) Bolt (M5x16mm) Adjust the chainkeeper Shift to the lowest gear (largest rear cassette cog) and front, inner chainring. Loosen the bolt (1) on the chainkeeper. Rotate the loose piece (shown in red below) so there is 1mm of horizontal clearance to the chain. Tighten the bolt (1) to 1Nm.
- Page 12 2023 Domane+ AL Frame mounts Fenders and rear rack Bolts (M4x8mm) — W575056 Seat stay bridge — W503255 W308963 *Hole cover — *Used to cover fender and rack mount bosses Access plug Water bottle cage mounts Remove the hole cover (1) and use the upper access hole to push the remote out.
-
Page 13: Specifications
2023 Domane+ AL Specifications Frame Rear hub OLD 141mm Front hub OLD 100mm Upper fork steerer tube OD 28.6mm Lower fork steerer tube OD 38.1mm Front 140/160mm Brake rotor diameter min/max Rear 140/160mm With fenders 32mm 700c tire, max width Without fenders 38mm Front...
