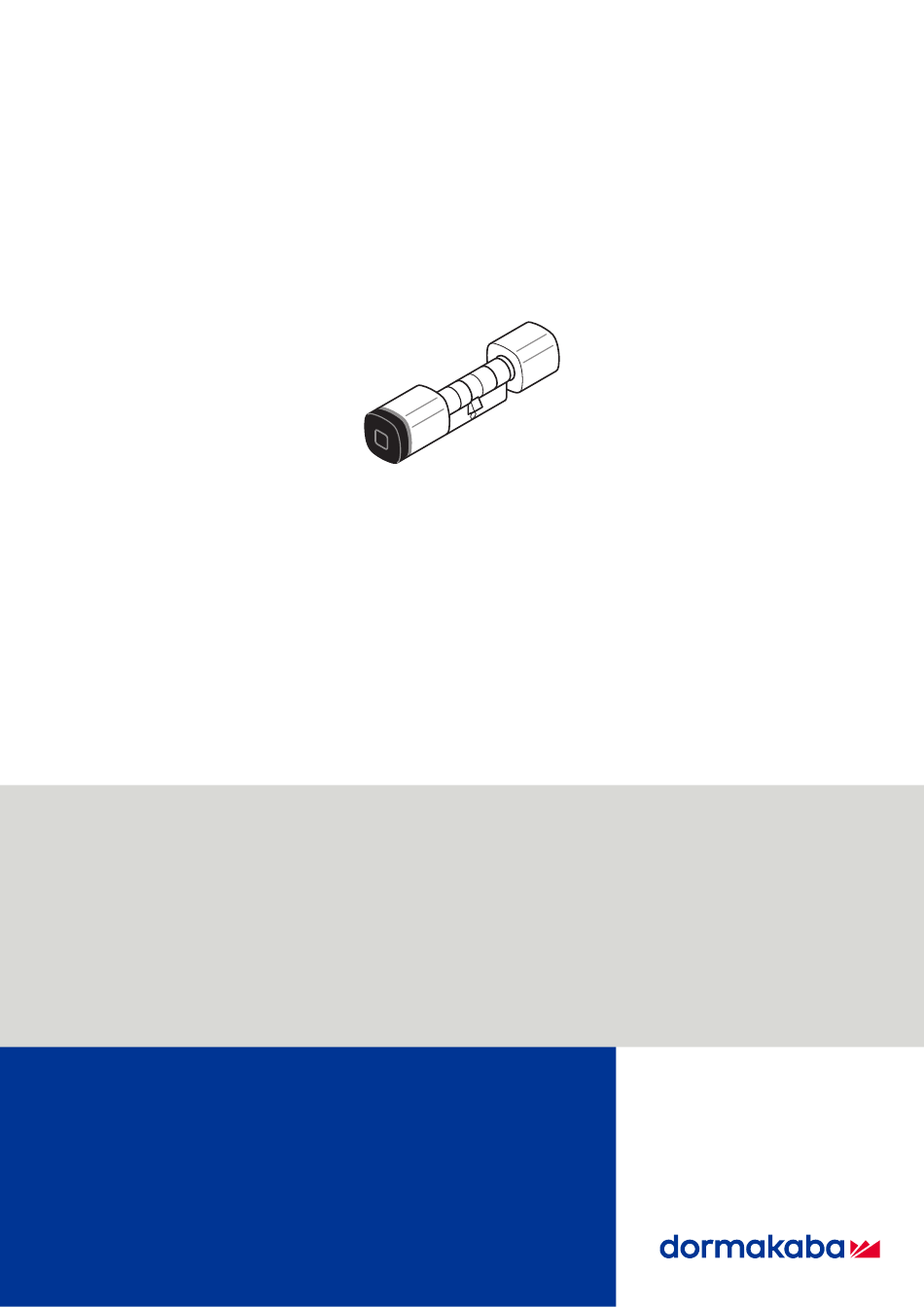

dormakaba digital cylinder
Technical Manual
1220013692 - 04/2019
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 143 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dormakaba 143 Series

  • Page 1 Technical Manual 1220013692 - 04/2019...
  • Page 2 No part of this document may be reproduced or used in any form or by any means without prior written permis- sion of dormakaba Schweiz AG. All names and logos of third-party products and services are the property of their respective owners.
  • Page 3: Table Of Contents

    Programming with media  30 5.7.1 Define highest Master medium  30 5.7.2 Create A/B structure  31 5.7.3 Grant access permissions  32 5.7.4 Revoke individual access permissions  33 5.7.5 Delete Master Bs from the component  34 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 4 Emergency power supply  47 Connect programmer.  47 Troubleshooting  48 Error analysis  48 Error analysis for battery life  50 Appendix  51 10.1 Summary of various factors influencing the battery operation  51 10.2 Recommendations for battery operation  51 dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 5: Regarding This Document

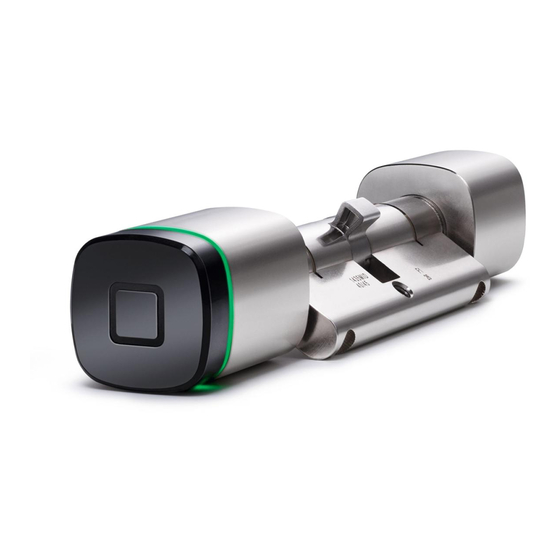

    1.1 Validity This document describes the product: Product designation: dormakaba Digital cylinder Types: 143X dormakaba Digital cylinder with Euro profile (17 mm) 153X dormakaba Digital cylinder with round profile (22 mm) Device generation: From K5 (MRD), K6 Article numbers and variants: Euro profile cylinder...
  • Page 6: Contents And Purpose

    1.4 Document availability Additional documentation is available on the dormakaba website. The manuals can be found in a protected area (extranet). They can be accessed using the user account of trained spe- cialists or a temporary user account.
  • Page 7: Hazard Categories

    They help to make best use of the product and its functions. 1.9 Symbols Symbols with the following meanings are used for hazards (depending on hazard source.) General hazard Hazard from electric shock Risk of explosion Risk to electronic components from electrostatic discharge 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 8: Basic Safety Instructions

    EC conformity inspection of the lock, digital cylinder, fitting and assembly accessories as one unit must be carried out. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 9: Areas Of Use

    NOTICE Wrong type of lock The asymmetrical digital cylinder is not permitted to be used in some lock types. Please refer to the lock manufacturer’s instructions. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 10: Esd Protective Measures

    Do not open, drill through or squash lithium batteries. • Do not burn lithium batteries or expose them to high temperatures. • Do not short circuit lithium batteries. • Do not recharge lithium batteries. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 11: Product Description

    1 battery, CR2 lithium type • 1 set of instructions 3.2.1 Also for dual digital cylinder • 1 battery, CR2 lithium type 3.3 Accessories • Relevant system software and programming tools For Mobile Access applications: 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 12 Smartphone app for online management and putting door components into operation without using any system software. The apps for iOS or Android can be downloaded via Apple iTunes or Google Play. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 13: Technical Data

    Place: 1 2 3 4 5 6 7 8 EN 15684 Classification: 1 6 B 4 A F 3 2 Resistance to fire EN 1634-2: 95 min Variants 1439 and 1539 from total length 85 mm 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 14: Dimensions

    EXT version: approx. 40,000 cycles The specifications refer to the operation mode whitel- ist. 3.4.1 Dimensions The dimensions stated also apply for the 22 mm round profile cylinder. 1431 Dimension drawing 1431 Asymmetrical (profile cylinder) dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 15 Technical Manual Product description 10.5 1434 Dimension drawing 1434 Half with outer knob profile (profile cylinder) 1435 Dimension drawing 1435 Standard (profile cylinder) 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 16 Product description Technical Manual 1437 Dimension drawing 1437 Anti-panic, small inner knob version (profile cylinder) 1439 Dimension drawing 1439 Dual (profile cylinder) dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 17: Conformity

    3.6 System requirements Firmware/System software Function Firmware System software Kaba exos MATRIX Mobile See section Validity > version 4.0.73 or MATRIX Professional Access Mobile Access option higher version 3.2.x or higher; with Mobile Access option 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 18: Installation

    The parts attached to the door must not impact the function of the Digital cylinder. The fire protection-related assessment/check was completed according to EN 1634-2 on a double-leaf metal revolving door. The test record is available on the dormakaba site in a pro- tected area (Extranet). See under “Document availability”.
  • Page 19: Tools Required

    Determine the length of the forend screw: Forend screw ≥ backset + 10 mm. 4.2.2 Tools required • Tool – Multitool • Allen key, small inner knob, 2 mm hex • Flat head and Phillips screwdriver • Programming cable • Adaptor/programming pin 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 20: Installation Versions

    1535 Standard 1533 Half with turning range — optional 1534 Half 1537 Anti-panic not recommended optional 1539 Dual — recommended Legend: The fitting needs a recess on the inner side for the cylinder pin. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 21: Installation Version A

    Position the forend locking stud in the lock and tighten it slightly. Thumbturn: Align the locking spring and the notch with each other! Click! Place the thumbturn on the cylinder housing. Thumbturn “small”: 2 mm Tighten the grub screw. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 22 Tighten the forend locking stud. Check that the door knobs function correctly. Both door knobs can be turned without touching the fit- tings. Check the backset. The door knobs must not knock against the door frame. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 23: Installation Version B

    Position the forend locking stud in the lock and tighten it slightly. Install the fittings. Thumbturn: Align the locking spring and the notch with each other! Place the thumbturn on the cylinder housing. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 24 Push the outer knob over the knob module. Position the multitool on the outer knob. Turn the multitool to the left and lock it. The outer knob and the cylinder housing are now firmly connected. Tighten the forend locking stud. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 25 Technical Manual Installation Check that the door knobs function correctly. Both door knobs can be turned without touching the fittings. Check the backset. The door knobs must not knock against the door frame. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 26: Function Check On Anti-Panic Digital Cylinder

    Turn the inner door knob to the 11 o'clock position and re- lease it. The inner door knob should turn back automatically. Turn the inner door knob to the 1 o'clock position and re- lease it. The inner door knob should turn back automatically. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 27: Program/Configure A Component

    Connect the programmer to the device. • Transmit the configuration from the programmer to the device. See also: • System description • Documentation for the system software used • Programmer 1460 technical manual • Planning guidelines for wireless 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 28: Master Media

    "Revoke all access permissions assigned by Master B." • Grant the still-valid user permissions (add to whitelist), see section "Grant access permis- sions." • Repeat the process on all components to which the lost medium has access. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 29: Program Structures

    Assignment and revocation of access permissions • For additional applications, see the following section User media: • At most 4,000 user media • Distribution of the users to multiple Master Bs is not possible. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 30: Programming With Media

    1x short Beep the antenna for approx. 1 second. -> Glows green. -> 1 short signal sounds. -> Green goes out. -> The upstream Master medium has been registered as the highest Master medium. Beep dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 31: Create A/B Structure

    If needed, hold up other Master Bs. Hold Master A up to the antenna 1x long Beeeep for approx. 1 second. -> Glows green. -> 1 long signal sounds. -> Green goes out. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 32: Grant Access Permissions

    1x long Beeeep for approx. 1 second. -> Glows green. -> 1 long signal sounds. -> Green goes out. -> The changes have been applied. If needed, grant access permissions with another Master B. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 33: Revoke Individual Access Permissions

    If needed, hold up other user me- dia. Hold Master B up to the antenna 1x long Beeeep for approx. 1 second. -> Glows green. -> 1 long signal sounds. -> Green goes out. -> The changes have been applied. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 34: Delete Master Bs From The Component

    10 s Hold Master A up to the antenna 1x long Beeeep for approx. 1 second. -> Glows green. -> 1 long signal sounds. -> Green goes out. -> The changes have been applied. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 35: Revoke All Access Permission Assigned By Master B

    See section "Service" > "INI reset with Master media" 5.8 Initialising the device for Mobile Access Prerequisites General • The access control system is set up by dormakaba for Legic Connect System software • The criteria listed in the “System requirements” section have been met. •...
  • Page 36: Set Bluetooth Signal Strength

    In the parent system, set the Bluetooth signal strength and transfer it to the device via the wireless gateway. Also see the Mobile Access planning guidelines 5.10 Initializing the device for evolo smart The evolo smart app guides the user through the procedure for initializing the components. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 37: Operation

    ð The door can be opened. If there is an attempt to gain access using unauthorized user media, the acoustic signal will briefly sound four times and the red light will briefly flash four times. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 38: Opening Via Smartphone

    Hold the smartphone in front of the device. Signalling The smartphone shows the access authorization. Device with signalling The device signals the access authorization acoustically and visually Beep Signal for unauthorized user medium: 4x brief acoustic and 4x brief red dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 39 Note: The opening time is limited. After the opening time expires, the device closes automatic- ally. The opening time upon delivery is approx. 6 seconds. The opening time can be changed with Programmer 1460 or in the parent system. • Activate the lock by pressing the lever handle. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 40: Maintenance

    Function check on anti-panic digital cylinder As part of maintenance on a panic lock, also carry out a function check on the anti-panic di- gital cylinder. (See Chapter Function check on anti-panic digital cylinder [} 4.3.3].) dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 41: Cleaning

    Only disinfection agents that are explicitly formulated for cleaning delicate metal surfaces and plastics may be used. The use of unsuitable cleaning agents or methods can damage the components' surface. Use a soft, damp cloth to clean the surface. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 42: Service

    Adhere to and use the general ESD protective measures when handling electronic com- ponents. Position the multitool on the inner side of the outer knob. Turn the multitool to the left and unlock the outer knob. Remove the outer knob. Remove the spent battery. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 43 Turn the multitool to the left and lock it. The outer knob and the cylinder are now firmly connected. Check that the Digital cylinder is functioning correctly. Check the time [} 8.3] and adjust if required. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 44: Disassembling The Inner Door Knob

    (e.g. setting time.) Traceback can be read out with a Programmer and transferred to the system software for evaluation. Additional steps are described in the documents Programmer 1460 and Programmer 1364 . dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 45: Reset (Ini Reset)

    15 seconds. Beep 1x long, -> Glows green. 1x short, -> Successive signals sound. after 15 seconds, -> After 15 seconds the INI reset is 2x short carried out. -> Green goes out. 15 s 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 46: Reset Using Programmer 1460

    INI reset with tweezers and valid master media The components have INI reset contacts on the e-module. To perform an INI reset, short-circuit these contacts with electrically conductive tweezers. Before short-circuiting, present a valid master medium or user medium. dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 47: Contacts For Ini Reset

    8.6 Connect programmer. The contacts for connecting the programmer are on the edge right next to the above PCB. Connect the Digital cylinder and the programmer using the programmer cable and the pro- grammer adapter. 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 48: Troubleshooting

    Check batteries or power supply Incorrect e-module on Digital — 3 x red E-module knob and MC in- Check compatibility cylinder flash sert are not compatible (V4 FW 42.XX) Other errors — Unintentional re-start — short dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 49 Possible causes Measures short green short Other errors — Unintentional re-start — short 1 x long short Key: Components without visual display Function only for c-lever, mechatronic cylinder and digital cylinder The actuator subsequently opens 1220013692 - 04/2019 dormakaba digital cylinder...
  • Page 50: Error Analysis For Battery Life

    Many unauthorized access at- Clarify causes tempts (unauthorized access re- quires more energy than authorized access) Coupling monitoring often active Carry out update to current firm- ware version dormakaba digital cylinder 1220013692 - 04/2019...
  • Page 51: Appendix

    Keep a stock of currently recommended batteries: – Panasonic CR2 Industrial (made in Japan or Indonesia) – Panasonic CR2 PHOTO Power (made in Japan or Indonesia) – Duracell Ultra CR2 (made in Japan or Indonesia) 1220013692 - 04/2019 dormakaba digital cylinder...
