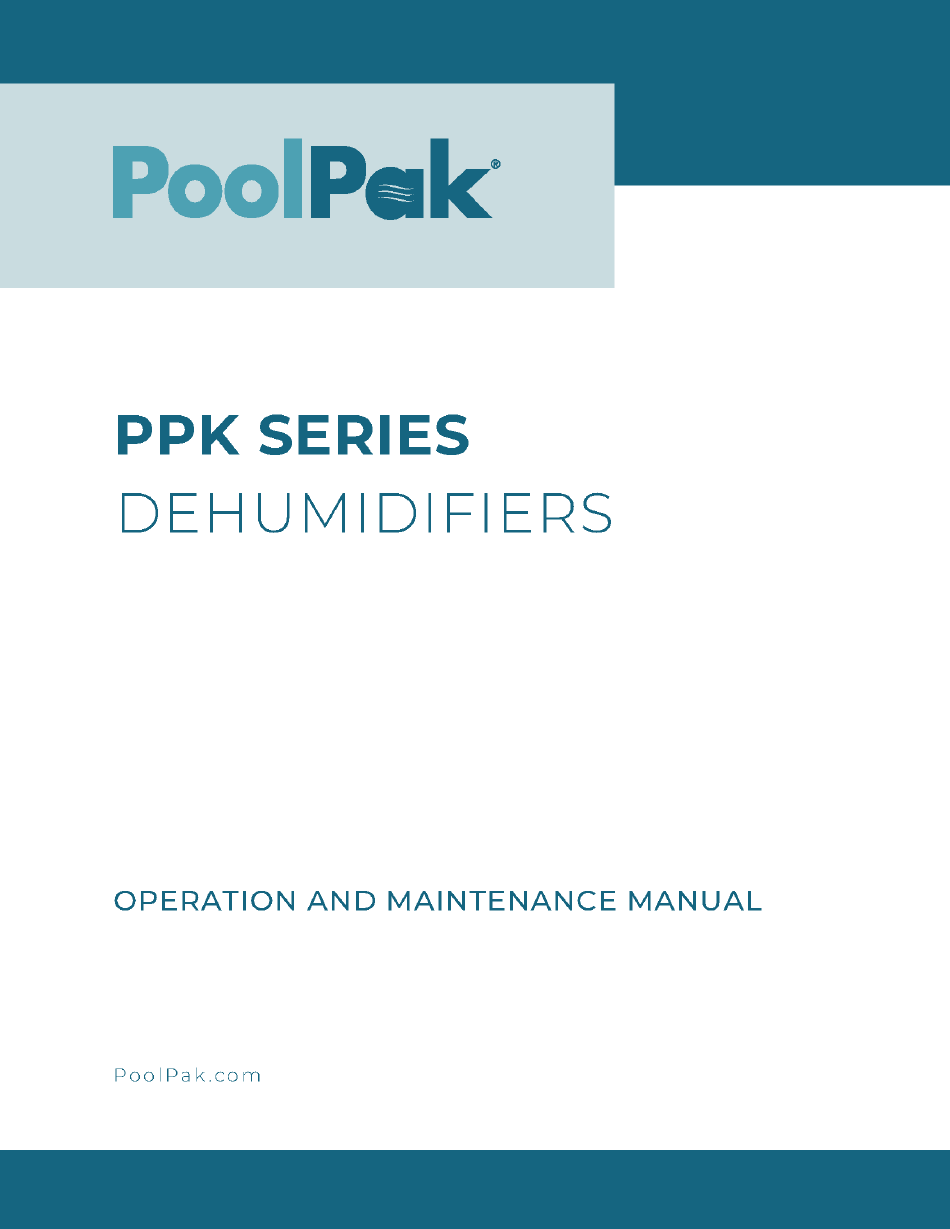

PoolPak PPK Series Operation And Maintenance Manual

Hide thumbs Also See for PPK Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PoolPak PPK Series

Summary of Contents for PoolPak PPK Series

  • Page 2 December 2024...

  • Page 3: Table Of Contents

    Table of Content General Information Operating Safety • • Reference and Additional Information Contact Us Special Considerations for Equipment Containing A2L Refrigerant • • Basic Information Dehumidifier View and Options Dehumidifier External Systems Connection Dehumidifier Optional Arrangement Pool Water Heating Options – Bonding Air Conditioning Options –...

  • Page 4: General Information

    General Information This manual provides basic information about the applicable dehumidifier and its operation. This manual covers details of the equipment of various design, size, capacity etc.; therefore, some details • covered in this manual may not be relevant to each piece of equipment. Refer to your equipment’s submittal documentation.

  • Page 5: Reference And Additional Information

    Note CAUTION WARNING Indicates a situation that could Indicates a potentially hazardous Indicates a potentially hazardous result in equipment damage or situation which could result in situation which could result in improper/ineffective operation if serious injury or death if handled moderate injury or equipment handled improperly.

  • Page 6: Contact Us

    • Information and understanding of the explosion and ignition potential of FLAMMABLE REFRIGERANTS • Information about POTENTIAL IGNITION SOURCES, • Information about the ventilation of the equipment, its compartments and the room it’s installed in, and its effect on the safety (of the surroundings, carried out work tasks etc.) •...

  • Page 7: Special Considerations For Equipment Containing A2L Refrigerant

    Special Considerations for Equipment, Containing A2L Refrigerant Attention: Equipment Containing A2L Refrigerant CAUTION! Dehumidifier, equipped with compressors, contains A2L (mildly flammable) group refrigerant. Such equipment placement shall satisfy certain requirements of local and national Codes and Regulations, such as UL 60335/SCA B52/ASHRAE 15 and others, as applicable. Review following chapter in detail prior to placement of the equipment to ensure the requirements are met.
  • Page 8 Dehumidifier Internal Refrigerant Detection System (RDS) Dehumidifier, that contains A2L refrigerant, is equipped with internal Refrigerant Detection System (RDS) to ensure safety in event of the refrigerant leakage during equipment operation or idling (this feature requires dehumidifier to be powered). For detailed info on RDS – refer to sub-chapter “Refrigerant Detection System”. December 2024...

  • Page 9: Basic Information

    Basic Information Dehumidifier View and Options Pic. C.1 December 2024...
  • Page 10 Standard dehumidifiers of this series are semi-custom: while basic concept and layout is the same, options and specific systems and components layout and location may vary from one dehumidifier to another. One of the typical dehumidifier arrangements is shown on Pic.C.1. Dehumidifier Options •...

  • Page 11: Dehumidifier External Systems Connection

    Dehumidifier External Systems Connection Pic. C.1 shows provisions for external systems connections, including ductwork, electric power and control wires and various piping connections. CAUTION! Current manual shows general/default connections’ location. For details regarding specific dehumidifier’s connections (actual location, piping sizes and position dimensions, circuit type and flow direction etc.), refer to the dehumidifier’s submittal documentation as well as dehumidifier’s labels and stickers.

  • Page 12: Pool Water Heating Options - Bonding

    For two-compressor dehumidifier, compressor compartment may have side (Fig.1; same as dehumidifier, shown on Pic. C.1) or end (Fig.2) location. End location is mostly used in higher capacity dehumidifiers. Three -compressor dehumidifiers (Fig.3) normally have end location of the compressor compartment. Pic.

  • Page 13: Air Conditioning Options - Outdoor Air Fluid Coolers

    Air Conditioning Options – Outdoor Air Fluid Coolers (OAFC). Basic views of standard air conditioning options are shown on Pic.C.4 (below). Note, that depending on number of factors, dehumidifier may have different fluid cooler provided with it - refer to the dehumidifier’s submittal documentation for more details.
  • Page 14 Pic. C.4 December 2024...

  • Page 15: Equipment Specific Data

    Equipment Technical Data Detailed information about specific equipment is presented in submittal documentation; some general info is provided below: Air Data ESP Min 0.5” wc ESP Max 3” wc Leaving Air Temperature max 120 F Heating Water Data Pressure, MAX 250 psi Entering Water Temperature MAX 180 F...

  • Page 16: Layout And Components

    Layout and Components The general layout and components location is the same for all dehumidifiers of current type, however some may vary, based on the dehumidifier’s specific options – refer to submittal documentation. Pic. D.1 below shows all/most available options, some of which may not be present on your dehumidifier. Dehumidifier Main Components Main Blower (1) is in the main blower compartment behind or next to the Compressor Compartment (3) with •...
  • Page 17 Pic. D.1B December 2024...
  • Page 18 Compressor Compartment and Main Electric Panel (detailed; see Pic.D.1C). 25, 26 Pic. D.1C Compressor(s) (13), Receiver(s) (14) and other components are located within the Compressor Compartment • (3): Each compressor circuit has glycol-to-refrigerant plate heat exchanger (16) and, common to both circuits, glycol pump (16a), that circulates water/glycol to reject compressor-generated heat.

  • Page 19: Control System

    Control System The dehumidifier control system is composed of sensors, spread throughout the dehumidifier, Main Control Board, Operator Panel and other electric components, located in the Main Electric Panel. Temperature Sensors (Pic. D.2): a) Temperature sensors (thermistors) are used to monitor various temperatures (air, water, compressor, etc.);...

  • Page 20: Outdoor Air Fluid Cooler Layout And Components

    Refrigerant Sensors are located within the compressor compartment; exact quantity and location may vary per dehumidifier, dependent on its size and configuration, but typically sensors would be located closer to the floor/bottom of the equipment– where higher concentration of leaked refrigerant is more likely. Indoor-installed dehumidifiers would also have additional damper installed at the compressor compartment (not shown on the drawings Pic.
  • Page 21 Cooling (AC) coils (31) (where heat from glycol mixture is rejected to the ambient air) is mounted onto metal • frame, upstream (before) the fans (32), that pulls the air through the coils to absorb the heat. Normally, fluid cooler would have multiple coils and fans. Cooler NG-V-12 (Fig.1), comprised of two coils, mounted on the angle to each other, and two fans, presents a single block.

  • Page 22: Sequence Of Operation

    Sequence of Operation The dehumidifier’s ventilation system establishes the required airflow through the dehumidifier. The control system compares air temperature and humidity to their desired values (set points) and proceeds to dehumidify, cool or heat the recirculating air. If the dehumidifier is equipped with the pool water heating option, the pool water temperature is compared to its set point and pool heating is provided if required.

  • Page 23: Heat Recovery Option

    Heat Recovery Option. Dehumidifiers, packaged with Minimum Exhaust Fan and Minimum Outdoor Air damper, could also have additional Heat Recovery (HR) closed-loop glycol system. Heat Recovery loop (see Pic. E.1 below) consists of two coils (air-to-glycol heat exchangers) and a pump, establishing glycol circulation between them.

  • Page 24: Compressor(S)

    Compressor(s) Whenever the compressor operates, the evaporator is always dehumidifying and cooling the return air. The heat removed from the air at the evaporator, as well as the heat from the compressor's action, must be rejected to one of three heat sinks: room (premise) air, pool water (if applicable) or outdoors. The control system will direct the heat to where it is needed based on room (air and pool water temperature) conditions: •...

  • Page 25: A2L Refrigerant Mitigation

    If the fluid cooler is equipped with the built-in pump package (to establish cooling fluid flow between dehumidifier and the fluid cooler or to serve as additional/booster pump), the said pump is also engaged along with fluid cooler fans – pump would stay engaged while fans are engaged (regardless of the fans’ speed). Pic.
  • Page 26  To ensure that all dehumidifier’s compartments are properly vented (in event of a leak), indoor-installed dehumidifiers are equipped with Emergency Venting: compressor compartment (typically the only compartment that is outside of main airstream and thus not ventilated) is equipped with emergency damper, that will open (triggered by RDS in event of a leak) to allow for compressor compartment to be properly vented as well.

  • Page 27: Interface And Communication

    Interface and Communication Touch Display Operator Panel The Touch Display Operator Panel (OP), shown on Pic. F.1, is used as a main interface between the dehumidifier and operator. The same OP can be located in the dehumidifier main electric panel (default; used as a local OP) or installed remotely from the dehumidifier •...

  • Page 28: Alarms

    Alarms If the dehumidifier control system detects abnormal or unsafe for further operation situation, it issues Alarm (notification of such situation accompanied by respective component or entire dehumidifier stoppage and/or lockout) or Alert (notification of minor abnormal situation without any devices’ stoppage or lockout). All alarms and alerts are recorded and can be viewed/cleared via the Touch Display OP: ...

  • Page 29: Remote Communication

    Remote Communication Although dehumidifier is designed to operate as a self-controlled device (not requiring any external control), communication between the dehumidifier and external control and monitoring systems is possible. WebSentry WebSentry is an online tool (also referred to as Web Monitor), that allows for remote communication to the dehumidifier for various purposes such as monitoring, data collection, parameters adjustment, and notifications.

  • Page 30: General Considerations For Any Work Performed On The Equipment

    General Considerations for any Work, Performed on the Equipment Whether performing routine, day-to-day maintenance or one-off (commissioning, repair etc.) work tasks, one must recognize potential hazards, associated with the task to be performed, equipment and its installation specifics, as well as be properly trained and qualified to perform such tasks (for training and qualification requirements – refer to chapter “Personnel Training and Qualification”).
  • Page 31 Machinery room shall be of a tight construction and not accessible to general public.  Machinery room with equipment that contains A2L refrigerant shall:  • be mechanically vented outdoors be equipped with refrigerant detection system • have NO flame-producing devices or hot surfaces permanently installed in the room •...

  • Page 32: Basic Maintenance

    Basic Maintenance Although Seresco equipment is built for minimal service downtime, periodic preventative maintenance is required to ensure maximum reliability, safety, and operating efficiency. WARNING! To ensure equipment longevity and proper and efficient operation, the dehumidifier and its auxiliary systems and devices (outdoor condenser, fluid cooler, boiler package, etc.) must be maintained properly and regularly.

  • Page 33: Routine Maintenance Program

    Routine Maintenance Program Creating facility-specific routine maintenance program and following it is vital to equipment longevity and efficient operation. The suggested general maintenance operations and their frequency/intervals, listed in the table M-1 below, can be used to create such a program. For more detailed maintenance recommendations related to specific components, refer to the respective component manufacturer’s manual.

  • Page 34: Specific Components Maintenance

    Specific Components Maintenance Actual maintenance plan may vary from installation to installation, yet there are several key components from maintenance prospective. If needed, contact respective component manufacturer for additional maintenance information. RDS Sensor (Equipment with A2L refrigerant) Refrigerant sensor, installed within the dehumidifier, does not require any specific maintenance. Used sensor has long-life expectancy and not required to be replaced on regular basis.
  • Page 35 Special Maintenance Tasks. Fluid Cooler Winterization. Normally fluid coolers are used in the systems, filled with glycol mixture to prevent the system and the fluid cooler from freezing and, potentially, rupturing, when exposed to temperatures below freezing point. When fluid cooler is used with media that, when exposed to low temperatures, could freeze (water or lower- percentage glycol mixture), one way to protect the equipment is to drain it (also known as “winterization”...

  • Page 36: Service, Repair, Commissioning And Decommissioning

    Service, Repair, Commissioning and Decommissioning WARNING! Review and follow details in chapter “Work Tasks and Safety – General Considerations” in addition to current chapter to ensure safety of performed tasks! In some instances, more intrusive/specific work tasks (apart from routine maintenance) required. Apart from standard best field practices and Codes and regulations, applicable to respective tasks, it is critical to consider some equipment and its installation-specific details.
  • Page 37 – that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; – that no live electrical components and wiring are exposed while charging, recovering or purging the system. – that there is continuity of earth bonding •...
  • Page 38 A2L Refrigerant Leak Detection Methods. WARNING! It is prohibited to use potential sources of ignition to search for refrigerant or for detection of refrigerant leaks! A halide torch (or any other detector using a naked flame) shall not be Acceptable (for A2L refrigerant) leak detection methods include: “Bubble”...
  • Page 39 • hoses, recovery machine, cylinders were not being used with other refrigerants/oils to prevent cross-contamination • all tools in good order - cylinders are equipped with shut-off and pressure relief valve in good order, hoses with leak-free disconnects etc. • proper/correct number and type of cylinders available - of sufficient type for recovery and sufficient size/capacity to contain all recovered refrigerant •...

  • Page 40: Warranty

    Email: Warranty@DehumidifiedAirServices.com PoolPak warrants as set forth and for the time periods shown below that it will provide through either a DASV Service Technician or an authorized service organization specified and approved by DASV, a new or rebuilt part to replace a factory installed part which has failed because of defect in workmanship or material.
  • Page 41 Replacement Part Warranty If a replacement part provided by PoolPak under this warranty fails due to a material defect prior to the end of the Two-Year Parts Warranty (or the end of the extended warranty period if applicable), whichever comes first, PoolPak will provide a new or rebuilt part F.O.B.
  • Page 42 2. Optional Five-Year Dehumidifier Coil Warranty Subject to the terms above, PoolPak will provide a replacement coil for up to 60 months from the date of the warranty activation. Extended coil warranties are for parts of the dehumidifier only and does not cover parts of dry cooler or OACC coils.

This manual is also suitable for:

Ppk 70Ppk 80Ppk 100Ppk 120Ppk 140Ppk 190 ... Show all
