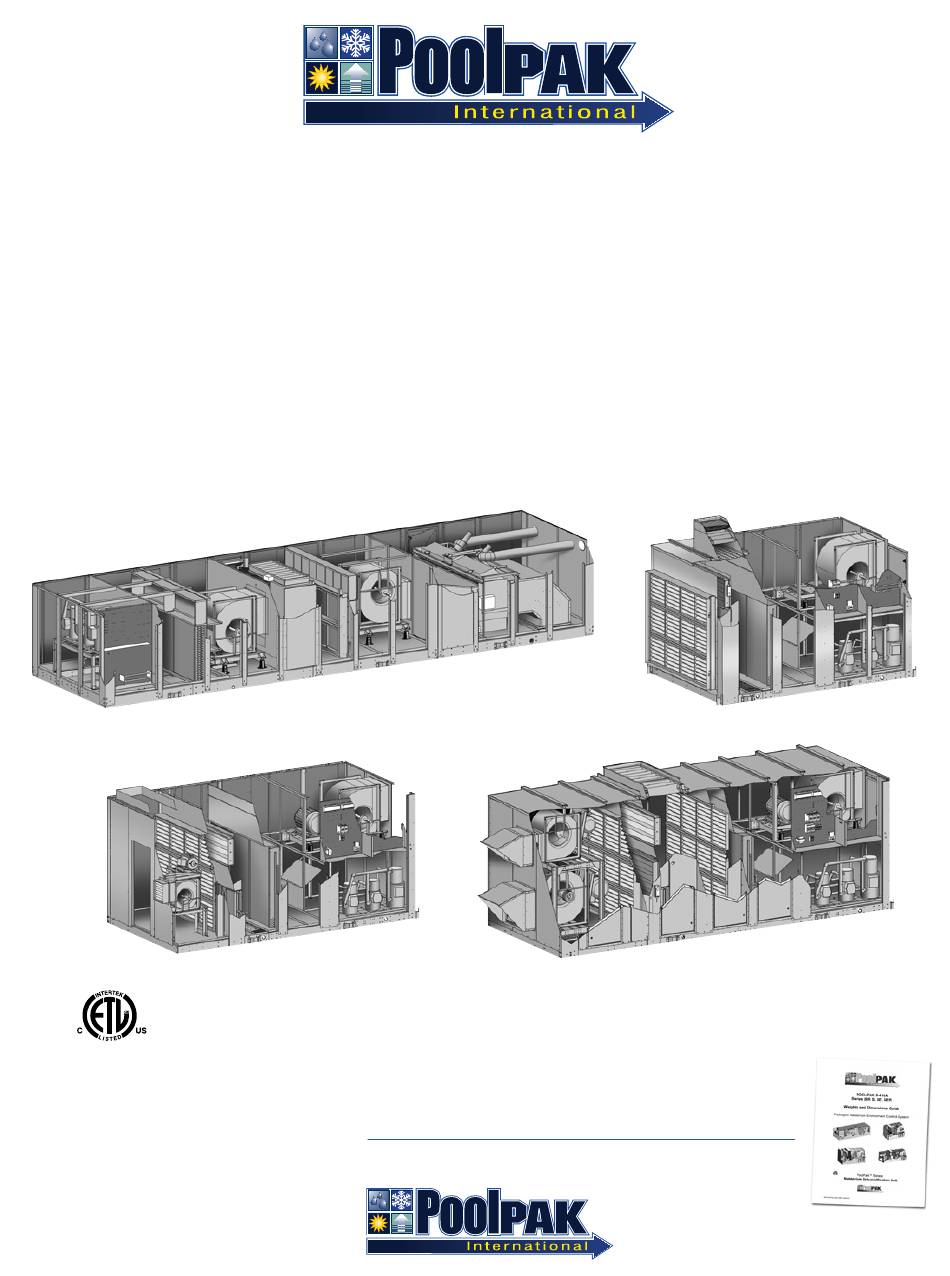

- Page 1 POOLPAK R-410A SWHP SERIES (MODELS SR, S, SE, SEP) Engineering Guide EGW05-SWHPEG-20140724 Packaged Natatorium Environment Control System PoolPak SWHP Series Natatorium Dehumidification Unit For unit weights and dimensions, see PoolPak SWHP Weights and Dimensions Guide.
- Page 2 The Leader in Indoor Pool Dehumidification 3491 Industrial Drive . York, PA 17402 . USA . 800-959-7725 . Fax 717-757-5085 for more information: www.poolpak.com...
-
Page 3: Table Of Contents
Ductwork Design................................... 6 Air Distribution ..................................6 Air Connections to PoolPak™ .............................. 7 Other Air-side Considerations ............................... 7 SECTION II: POOLPAK PRINCIPLES, FUNCTIONS, AND FEATURES ..............8 Principles of Operation................................. 8 Room Dew Point Control ................................9 PoolPak™ Operation................................10 Standard Items Factory Mounted ............................ - Page 4 PoolPaK Pool Water Circulation Loop ............................38 Auxiliary Pool Water Heater (field supplied) ..........................38 Main Pool Water Pump and PoolPak Pool Water Loop Pump Interlocks ................. 38 Pool Water Isolation Valves ..............................38 Pool Water Flow Switch ................................39 Pool Water Piping Composition ..............................
- Page 5 Service Display Connection ..............................47 Multiple Unit Interfacing ................................47 Building Automation System (BAS) Connection ........................48 PoolPak Remote Access Package (RAP) ..........................48 Send Emails – Alerts for Alarms ............................... 48 ECC III Network Operation ................................48 CM1 Configuration ................................... 49 RIU Configuration ..................................
- Page 6 Figure 3-2. Air Cooled Condenser Dimensions - Side View ....................... 25 Figure 3-3. Remote Cooling Tower Dimensions .......................... 26 Figure 3-4. PoolPak™ Optional Water-Cooled Condenser Cabinet - Attached ................27 Figure 4-1. Field Wiring Diagram ..............................37 Figure 4-2. Pool Water Piping Schematic ............................ 39 Figure 4-3.
-
Page 7: Section I: Indoor Pool Application
The PoolPak™ System utilizes an environmental control package designed to meet all special needs of the indoor pool environment, while reducing energy usage and building maintenance costs. -
Page 8: Occupant Comfort
A strong “chlorine” odor is an indicator of poor pool water chemistry and is generally offensive to the occupants. Higher levels of chloramines can cause skin/eye irritation and respiratory problems commonly known as “lifeguard lung”. Most poolrooms are designed with a minimum ventilation rate to dilute the airborne pollutants generated from the chemical interactions in the pool water. -
Page 9: Equipment Choices
Table 1-2. Recommended Pool Water Chemistry Pool Ideal Ideal Total Chlorine (ppm) 1.0 - 3.0 3.0 - 5.0 Free Chlorine (ppm) 1.0 - 3.0 3.0 - 5.0 Combined Chlorine (ppm) Bromine (ppm) if applicable 2.0 - 4.0 3.0 - 5.0 7.4 - 7.6 7.4 - 7.6 Total Alkalinity (ppm) -
Page 10: Hybrids
ROOM AIR DISTRIBUTION All PoolPak™ models provide continuous air recirculation, and with a good air distribution system, will promote uniform space conditions. To remove the required moisture and maintain controlled conditions, it is essential that there be adequate air movement and distribution in the natatorium. -
Page 11: Supply Air
SUPPLY AIR BLOWING TO SKYLIGHTS TO SKYLIGHTS FROM BELOW-GRADE DOWN FROM SOFFIT DUCTS DUCTS COVERING WINDOWS COVERING WINDOWS AND AND MOISTURE-EXPOSED POOLPAK POOLPAK MOISTURE-EXPOSED AREAS AREAS DEHUMIDIFICATION DEHUMIDIFICATION SYSTEM SYSTEM The warm, dry air should be directed over outside walls, windows and other surfaces susceptible to condensation. Supply ducts should be as short and with as few turns as possible. -
Page 12: Return Air
PoolPak™ System. Return grilles can be placed high in the space to reduce return ductwork, however removal of chloramines from the occupied area has become much more of a design consideration and so low returns are favored by poolroom designers. -
Page 13: Air Connections To Poolpak
Ducts can be fabric, aluminum, PVC, or galvanized steel. Even though “dry air” is being supplied back to the pool, do not use duct board or similar materials. If the PoolPak™ unit is installed in an area that is below the natatorium’s dew point temperature, the ducts may require insulation, pitching and drainage. -
Page 14: Section Ii: Poolpak Principles, Functions, And Features
System’s major function is to dehumidify the pool enclosure air through a vapor compression cycle. During this cycle the PoolPak™ System recycles the sensible and latent heat and places it back into the pool water and air as needed. This recycling process saves money and keeps your pool environment efficient and safe. -
Page 15: Room Dew Point Control
“grains of moisture per pound of dry air” and is directly related to the dew point temperature. The ECC uses dew point control to operate the PoolPak™ unit and maintain the moisture level below the setpoint (see Figure 2-1). The space dry bulb temperature and relative humidity determine the dew point temperature. By varying the space temperature and space relative humidity set points, the dew point set point is changed. -
Page 16: Poolpak™ Operation
POOLPAK™ OPERATION The PoolPak™ fan draws in warm, moist air from the pool enclosure. This air passes through the evaporator (dehumidification) coil and gives up heat energy to the refrigerant which is in a cool, liquid state. This exchange of energy causes the air temperature to fall below its dew point, resulting in moisture condensation on the evaporator coil. -
Page 17: Figure 2-2. Swhp Sr System Schematic
GLYCOL PUMP TO AIR-COOLED CONDENSER OR WATER-COOLED CONDENSER (OPTIONAL) NOTE: ALL ITEMS WITHIN DASHED LINE AREA ARE SOLENOID CONTROLLED BY POOLPAK AUXILIARY HEATING COIL VALVES MICROPROCESSOR CONTROLLER (OPTIONAL HOT WATER, NATURAL GAS INDIRECT-FIRED FURNACE, STEAM OR ELECTRIC) COMPRESSOR DAMPER EXHAUST... -
Page 18: Ecc Control System
Remote Access Package is available only with a BACnet/IP based Building Automation System (BAS). The PoolPak™ ECC III also has the option to be directly connected to several different BAS options. The ECC III can be connected to either a LonWorks based BAS or a Modbus RTU based BAS, BACnet/IP and BACnet MS/TP. -
Page 19: Cold Surface Temperature Humidity Reset
If the outside air is warmer and/or dryer than the air leaving the evaporator, all the air leaving the evaporator is exhausted and 100% outside air is drawn into the PoolPak™. All the heat recovered in the PoolPak™... -
Page 20: Air Conditioning With Water-Cooled Condenser
PURGE MODE (SR AND SEP) The PoolPak™ has a purge cycle to fully ventilate the natatorium at the airflow (CFM) specified for the unit’s supply fan. The purge cycle is programmable by the owner as necessary to ventilate the natatorium after shocking the pool. Unit controls provide completely automatic operation by controlling the supply fan and return (or purge) fan and by opening the outside air and exhaust air dampers for the programmed time intervals. -
Page 21: Figure 2-4. Typical Poolpak™ Rooftop Installation
Figure 2-4. Typical PoolPak™ Rooftop Installation INTERNET AUXILIARY CONNECTION POOL WATER OUTSIDE AIR HEATER TEMPERATURE TELEPHONE Modbus RTU AQUA STAT AND HUMIDITY LINE (TO POOLPAK) SENSORS LonWorks OUTSIDE AIR RAINHOOD/ SUPPLY BIRD SCREEN AIR DUCT AUXILIARY HOT WATER COIL SUPPLY AND RETURN LINES... -
Page 22: Selection
PoolPak™ International LLC maintains a computerized software selection program. Please contact your Exclusive PoolPak™ Sales Representative. A copy of the information required for the program can be found in publication “PoolPak Selection Input Data“. A copy of this form in spreadsheet format may be obtained from the Engineering Library of the PoolPak™... -
Page 23: Section Iii: Sizing And Performance
SECTION III: SIZING AND PERFORMANCE POOLPAK SWHP UNIT DIMENSIONS AND WEIGHT Refer to the PoolPak SWHP Weights and Dimensions Guide found in the Engineering Library of the PoolPak™ website. POOLPAK SWHP UNIT CAPACITY Table 3-1. PoolPak™ SWHP Unit Capacity Unit Performance at 82 F and 60% RH... -
Page 24: Pool Water Condenser Pressure Drop And Heat Capacity
POOL WATER CONDENSER PRESSURE DROP AND HEAT CAPACITY Table 3-2. Pool Water Condenser Pressure Drop and Heat Capacity Pool Water Heating Cap. Model Water (WC-ft) Water (WC-ft) (Mbtu/hr) Full Water Condenser SWHP 060 SWHP 080 SWHP 100 SWHP 120 SWHP 140 SWHP 190 SWHP 220 SWHP 260... -
Page 25: Poolpak Auxiliary Gas Furnace Capacity
POOLPAK AUXILIARY GAS FURNACE CAPACITY Table 3-3. PoolPak™ Auxiliary Gas Furnace Capacity Applicable Cabinet size Input Output Furnace** Mbtu/H Mbtu/H Min CFM Max CFM Min CFM Max CFM Min CFM Max CFM 3,500 8,000 3,500 9,000 8,000 9,000 Single 3,500... -
Page 26: Poolpak Air-Cooled Condenser (Acc) Dimensions, Weight And Electrical
POOLPAK AIR-COOLED CONDENSER (ACC) DIMENSIONS, WEIGHT AND ELECTRICAL Note: Below tables contain the piping sizes of the remote ACC stub-outs. Additional field piping may be needed to make the transition from the ACC connections (ACC Conns) to correct refrigeration lineset sizing (see Table 4-2). -
Page 27: Table 3-7. Acc - Model Swhp 0100
Table 3-7. ACC - Model SWHP 0100 Model 0100** Number Refrigerant Line Weight Ambient Refrigerant Fans Size ACC Model ACC Voltage Air (ºF) Circuits wide long Liquid 208/230-3-60 14.0 20.0 35.0 ACC0363 1-5/8 1-1/8 460-3-60 15.0 15.0 95/100º 575-3-60 15.0 15.0 ACC0433 2-1/8... -
Page 28: Table 3-9. Acc - Model Swhp 0140
Table 3-9. ACC - Model SWHP 0140 Model 0140** Number Refrigerant Line Weight Ambient Refrigerant Fans Size ACC Model ACC Voltage Air (ºF) Circuits wide long Liquid 208/230-3-60 21.0 22.8 40.0 ACC0493 2-1/8 1-3/8 460-3-60 10.5 15.0 20.0 95/100º 575-3-60 15.0 15.0 ACC0593... -
Page 29: Table 3-11. Acc - Model Swhp 0220
Table 3-11. ACC - Model SWHP 0220 Model 0220** Number Refrigerant Line Size Weight Ambient Refrigerant Fans ACC Model ACC Voltage Air (ºF) Circuits wide long Hot Gas Liquid 208/230-3-60 28.0 29.8 45.0 ACC0734 1340 460-3-60 14.0 15.0 20.0 1-5/8 1-1/8 95/100º... -
Page 30: Table 3-13. Acc - Model Swhp 0300
Table 3-13. ACC - Model SWHP 0300 Model 0300** Number Refrigerant Line Size Weight Ambient Refrigerant Fans ACC Model ACC Voltage Air (ºF) Circuits wide long Hot Gas Liquid 208/230-3-60 42.0 43.8 60.0 2@ 2 ACC0994 1990 460-3-60 21.0 21.9 30.0 1-3/8 95/100º... -
Page 31: Figure 3-1. Air Cooled Condenser Dimensions - End View
Figure 3-1. Air Cooled Condenser Dimensions - End View 45.4 NOTE: ALL DIMENSIONS ARE IN INCHES. 42.3 49.1 0.875 DIA MTG 80.5 0.875 DIA MTG HOLES TYP HOLES TYP 1-ROW 2-ROW PPK_EG_GR_ACCEndView.eps Figure 3-2. Air Cooled Condenser Dimensions - Side View NOTE: ALL DIMENSIONS ARE IN... -
Page 32: Water-Cooled Condenser (Wcc)
DISCHARGE SYSTEM 1 LIQUID SYSTEM 1 - WATER PIPING PPK_EG_GR_CoolingTwrRemoteDim.eps DIAMETER POOLPAK OPTIONAL WATER-COOLED CONDENSER CABINET - REMOTE Table 3-15. Remote Water Cooled Condenser Dimensions Remote Cooling Tower and Chilled Water Cabinet Dimensions Cabinet Size Weight (lb) 1200 1500 All Dimensions are rounded to the nearest Inch -- Contact factory for exact dimensions A cabinet - 060, 080, 100;... -
Page 33: Figure 3-4. Poolpak™ Optional Water-Cooled Condenser Cabinet - Attached
Figure 3-4. PoolPak™ Optional Water-Cooled Condenser Cabinet - Attached POOLPAK OPTIONAL WATER-COOLED CONDENSER CABINET - ATTACHED REFRIGERATION CONNECTIONS 12" APPROXIMATE 3" APPROXIMATE DISCHARGE SYSTEM 2 LIQUID SYSTEM 2 DISCHARGE SYSTEM 1 LIQUID SYSTEM 1 - WATER PIPING DIAMETER PPK_EG_GR_AttachedWaterCooledCondenser.eps EGW05-SWHPEG-20140724... -
Page 34: Table 3-17. Water Cooled Condenser Performance
Cleanable, vented condenser Spiral, vented condenser Two circuit water-cooled condenser, one for each compressor NOTE Contact factory if water-cooled condenser line length is more than 100 ft and/or the water-cooled condenser is located more than 20 feet below the PoolPak. EGW05-SWHPEG-20140724... -
Page 35: Section Iv: Installation
RIGGING PoolPak™ units require the use of a spreader bar that is at least as wide as the unit. Care must be taken to remove all doors or openings that will interfere with the chains or slings to prevent damage to the unit. In general, two to four lifting points are provided on each side of the unit, depending on the unit size and length. -
Page 36: Foundation
The unit must be mounted on a flat and level foundation capable of supporting the entire operating weight of the equipment. The unit MUST NOT set flat on a concrete slab. The PoolPak™ unit MUST BE raised 6 inches to allow for sufficient height to adequately trap the condensate line and to allow for electrical service entrance. -
Page 37: Single Point Power Supply
Curbs have been designed specifically for the PoolPak™ product line. Contact factory for roof curb dimensions. The outside dimensions of the curb are such that the base of the PoolPak™ extends over the edge of the curb on each side. This aids in preventing rain water, running down the sides of the unit, from getting between the base of the PoolPak™... -
Page 38: Ecciii Controls Field Wiring
The ECC III includes a 7-foot long, black RJ25 cable. If the RIU is to be mounted directly to the PoolPak™ unit, this cable can be plugged directly into port J10 on control module CM1 in the PoolPak™ control panel. -
Page 39: Outside Air Temperature And Relative Humidity Sensor (2)
RJ25 cable to the jack on the back of the RIU. Slide the RIU onto the bracket until it snaps into place. An extra RJ25 cable is supplied to allow direct connection of the RIU at the PoolPak™ control panel during service or startup. -
Page 40: Smoke Purge Input (Sr Only) (4)
AUXILIARY POOL WATER HEATING SYSTEM (10) The auxiliary pool water heating system is not provided by PoolPak™. The ECC III provides a dry contact closure that signals a need for auxiliary water heating. The contacts may be directly connected to the heater control circuit, provided it is 24 VAC maximum and the current does not exceed 1A inductive. -
Page 41: Auxiliary Air Heating System (11)
The ECC III provides an analog signal to control a proportional hot water or steam valve. Normally, the valve is factory- mounted and wired inside the PoolPak™ unit. However, if a remote valve is used, it can be connected directly to the PoolPak™... -
Page 42: System 1 Remote Water-Cooled Condenser Interlock (If Equipped) (17)
X5R, terminals 11 and 14, located on the PoolPak™ control panel. The ECC III will not select the mechanical air conditioning mode if the proof signal is inactive. -
Page 43: Swhp Field Wiring Diagram
SWHP FIELD WIRING DIAGRAM Figure 4-1. Field Wiring Diagram PPK_EG_GR_FieldWiring.eps EGW05-SWHPEG-20140724... -
Page 44: Pool Water Piping And Installation
PoolPak™ System. It is only turned on either when the heat available from the PoolPak™ is insufficient for pool water heating and pool water temperature drops to 1.5°F below set point or when the pool water flow to the PoolPak™ unit is below the minimum required water flow. -
Page 45: Pool Water Flow Switch
A pool water loop flow switch is factory-installed in the PoolPak™ unit. The flow switch is factory-calibrated and should not be adjusted. If the flow switch contacts are not closed when water is flowing through the PoolPak™ unit, there may be insufficient water flow. -
Page 46: Condensate Drains And Piping
If condensate is returned to a closed filter system that does not have a surge tank, care must be taken to ensure free flow of condensate back to the closed filter. For additional questions or concerns regarding installation of condensate drains, please contact PoolPak™ Service. Figure 4-3. Negative Pressure Condensate Piping Schematic... -
Page 47: Air-Cooled Condenser Installation
AIR-COOLED CONDENSER INSTALLATION SPACE AND LOCATION REQUIREMENTS The most important consideration which must be taken into account when deciding upon the locations of air-cooled equipment is the provision for a supply of ambient air to the condenser, and removal of heated air from the condenser area. -
Page 48: Units In Pits
Units in Pits The top of the unit should be level with the top of the pit and side distances increased to “2W”. If the top of the units is not level with the top of the pit, discharge cones or stacks must be used to raise discharge air to the top of the pit. This is a minimum requirement. -
Page 49: Field Installed Piping
◦ The highest point in the discharge line should be above the highest point in the condenser coil. (See Figure 4-8) ◦ The hot gas line should loop toward the floor if the condenser is located above the PoolPak™ unit, especially if the hot gas riser is long. -
Page 50: Table 4-1. Pipe Sizes For Remote Refrigerant Condensers
Above chart is for lineset length less than 100 ft and ACC located less than 50ft above unit or 20ft below unit. Failures due to a piping layout not within these limits nor receiving prior PoolPak Factory approval will not be covered under PoolPak™ warranty. -
Page 51: Table 4-2. Remote Acc Refrigerant (R-410A) Charge
Refrigerant and Oil Charging: • PoolPak™ units are shipped with the required charge for self contained operation only. The remote ACC option does NOT provide the refrigerant charge or oil required for the ACC and line sets. • Refer to the below remote ACC and line size charging charts to calculate the additional charge required. - Page 52 This page intentionally left blank EGW05-SWHPEG-20140724...
-
Page 53: Section V: Operation
MULTIPLE UNIT INTERFACING When there is more than one PoolPak™ unit installed at a single site, the units should be connected together. This is necessary so that each PoolPak™ unit can be coordinated. It also allows the owner to access PoolPak™ operational information for all the units from a single location. -
Page 54: Building Automation System (Bas) Connection
Connections (VPN) to the RAP will not be supported. SEND EMAILS – ALERTS FOR ALARMS When a critical alarm occurs with the PoolPak™ unit, the RAP will send an email to the PoolPak™ Service Department, via a mail server maintained by PoolPak™. -
Page 55: Cm1 Configuration
The RIU provides two network status screens. They can be accessed through the status menu accessed with key III. The first screen displays the status of units one through five as ONLINE or OFFLINE. Use this screen to verify that all units on the network are connected and communicating with each other. -
Page 56: Network Configuration
NETWORK CONFIGURATION Using the following parameters, it is possible to configure the ECC III network to accommodate a wide variety of installation options. Press the I key to access these parameters on the configuration menu. These parameters must be set in each unit individually. -
Page 57: Ecc Iii Service Troubleshooting
TROUBLESHOOTING OVERVIEW When properly installed according to the instructions in this manual, the PoolPak™ ECC III control system will perform as designed and will provide a pool environment that is both comfortable and cost effective. However, in the unlikely event that the system does not function properly, the ECC III has many features that will help a service technician resolve the issue. -
Page 58: Fire Trip Active
Fire Trip Active An external fire control system has requested fire trip operation by sending a signal to the PoolPak™ unit Fire Trip terminals. Smoke Purge Active An external control has requested smoke purge operation by sending a contact closure to the PoolPak™ unit Smoke Purge terminals. -
Page 59: 10 Fault Compressor Lockout
10 Fault Compressor Lockout Ten compressor faults have occurred since the unit was last reset. This condition indicates that a repetitive compressor fault is present. See the history log to determine the mode of operation to assist in determining the cause of the lockout. Sensor Failure (All Sensors) The controller has detected that the value of a system sensor is outside of the expected range. -
Page 60: Manual Control
116 - Current Transducer Failure Compressor System 2 117 - Crankcase Heater Breaker Off on Compressor System 2 150 - 10 Fault Lockout of Compressor System 2 Fault history screen 1 also displays the following parameters: T: - Return air temperature at the time the fault occurred. RH: - Return air relative humidity at the time the fault occurred. -
Page 61: Analog Output
The following manual digital output parameters are available: • Sply Fan Outp - Supply Fan Contactor • Rtn Fan Output - Return Fan Contactor Aux Air 1 • Output - Auxiliary Air Heating Stage 1 Relay • Aux Air 2 Output - Auxiliary Air Heating Stage 2 Relay •... -
Page 62: System Status Information
SYSTEM STATUS INFORMATION—III KEY (ESC + DOWN ON CM1’S KEYPAD) The following system status information is available from the RIU: 01. Day Of Week - Occupancy Status - Date 02. Time - Time of Day in 24 hour format 03. Spc Air T - Space Air Temperature 04. - Page 63 104. Purge - Purge Mode Status (SR, SEP only) CM2 Ver - ECC Control Module 2 Software Version Number CM3 - ECC Control Module 3 Software Version Number CM4 - ECC Control Module 4 Software Version Number CM5 - ECC Control Module 5 Software Version Number 124.
- Page 64 Run time information – The ECCIII records the number of run hours for the following components or modes: Supply Fan, Return Fan, Compressor 1A, 1B, 1C, System 1 Reheat Mode, System 1 Air Cooling Mode, System 1 Water Heat Mode, Compressor 2A, 2B, 2C, System 2 Reheat Mode, System 2 Air Cooling Mode, System 2 Water Heat Mode, Economizer Mode, Smart Economizer Mode, Occupied Mode, and Occupied &...
-
Page 65: Data Log Retrieval
The ECCIII records data every minute keeping approximately 30 days of data. To aid in troubleshooting, this data can be downloaded to a USB pen drive and sent to PoolPak™ Service for analysis. To begin, remove the cover to the right of the service buttons on the CM1 module. It is the part that has a red Carel label attached. -
Page 66: Maintenance
MAINTENANCE OVERVIEW Periodic routine maintenance will promote extended equipment life. While PoolPak™ units use components that are usually maintenance free and do not require service, a simple check could result in noticing possible problems before they develop into major problems. -
Page 67: Annual Maintenance
6. CONDENSATE LINE: Ensure that it is free of obstructions. Always keep the condensate trap and lines free and clear. The PoolPak™ is capable of producing up to 40 gallons of condensate per hour. 7. UNIT INTERIOR/EXTERIOR: Check for torn insulation and repair if necessary. Check for scratches, nicks, rust, etc. - Page 68 This page intentionally left blank EGW05-SWHPEG-20140724...
-
Page 69: Section Vi: Wiring
SECTION VI: WIRING SINGLE POINT POWER CONNECTION Figure 6-1. Single Point Power Connection OPTIONAL AUXILIARY ELECTRIC HEAT ONLY FUSED ELECTRIC DISCONNECT HEAT FUSED 3 PHASE DISCONNECT 60 HZ 3 PHASE 60 HZ COPPER CONDUCTORS ONLY COPPER CONDUCTORS ONLY POWER WIRING - SWHP S, SE, SEP 60/80/100/120 - ALL VOLTAGES; SWHP SR 140/190/220/260/300 - 460V & 575V PPK_EG_GR_SinglePointWiringSchematic.eps DUAL POINT POWER CONNECTION Figure 6-2. -
Page 70: Remote Connections
TRANSFORMER ECC III MODULE 2 POWER SUPPLY REMOTE DISPLAY SERVICE FACTORY WIRING CONNECTION RJ25 JACK SUPPLIED ECC III AND WIRED BY POOLPAK CONTROLLER MODULE 1 FACTORY WIRING RJ45 ETHERNET 10/100 DIRECT CONNECTION OPTIONAL REMOTE FIELD WIRING TERMINAL STRIPS (SEE FIGURE 28) -
Page 71: Multiple Unit Interface
MULTIPLE UNIT INTERFACE Figure 6-4. Multiple Unit Interface CONTROL PANEL CONTROL PANEL CONTROL PANEL UNIT #1 UNIT #2 UNIT #3 LonWorks (TM) 3 WIRES CONNECTION 24 GAUGE MIN, 500 FT MAX LENGTH, CAT-5 CABLE Modbus RTU CONNECTION MAY BE CONNECTED ON ANY T16 TERMINAL BLOC K PPK_EG_GR_ECCMultiUnitControl.eps LonWorks™, Neuron™, 3150™... - Page 72 The Leader in Indoor Pool Dehumidification 3491 Industrial Drive . York, PA 17402 . USA . 800-959-7725 . Fax 717-757-5085 for more information: www.poolpak.com EGW05-SWHPEG-20140724...
