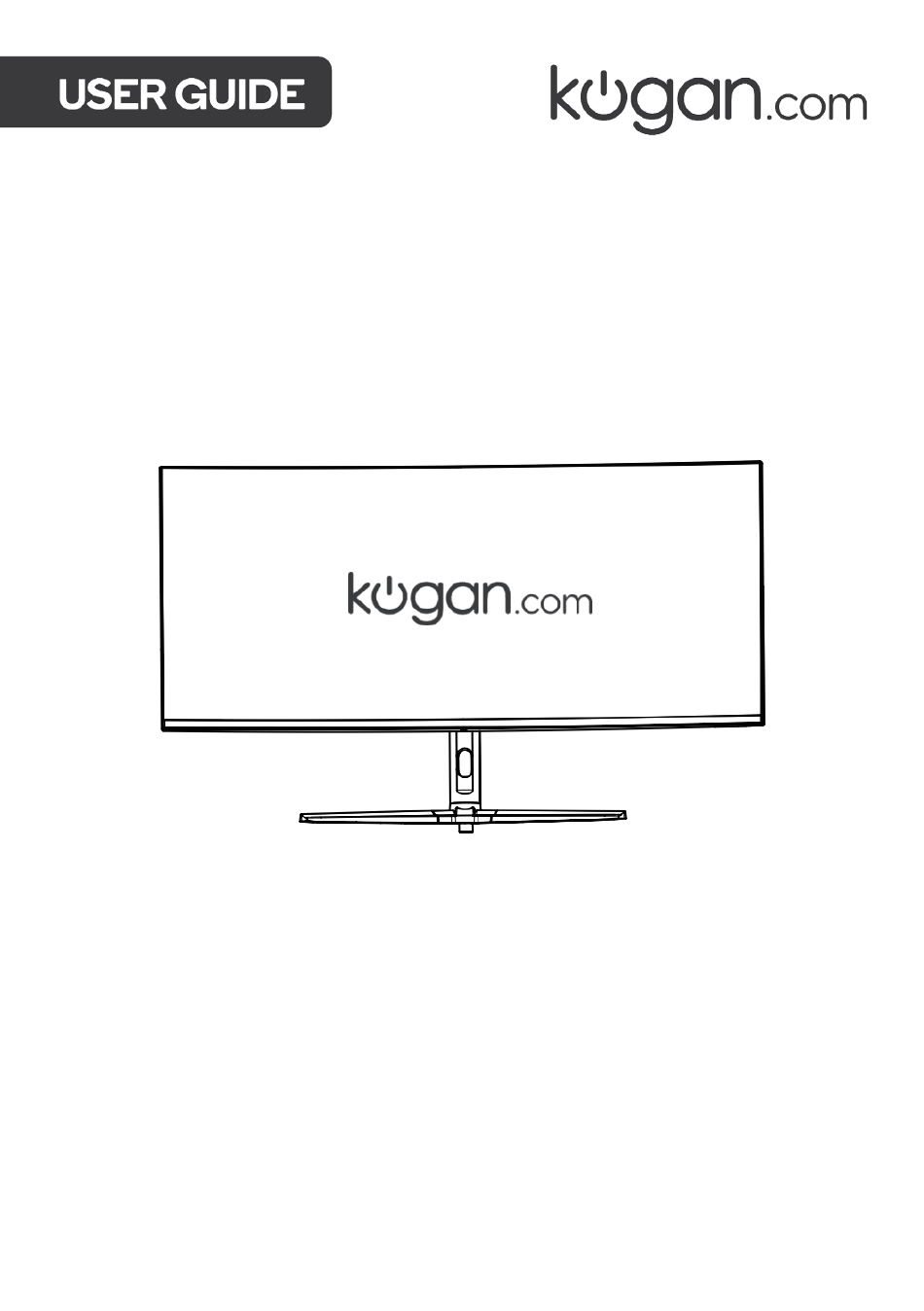

- Page 1 INFINITY 38" CURVED ULTRAWIDE FREESYNC GAMING MONITOR WQHD, IPS, 144HZ, 1MS & USB-C (3840 X 1600) KAMN38UQCWA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS • Read all instructions before using the monitor and retain this user guide for future reference. • Unplug the monitor before cleaning it with a slightly damp, clean cloth. • It is recommended to wipe the screen with a dry microfibre cloth once the monitor has been turned on. - Page 4 COMPONENTS Monitor Stand stem Stand base 16x4mm screw M4x16mm screw (x5) (x1 for spare use) M4x7mm screw (x5) Power cord Power adapter DP 1.4 cable (x1 for spare use) Decorative VESA cover User guide...
- Page 5 OVERVIEW HDMI USB-A Audio Out USB-C DC (Power Input) USB-B USB-A USB-A USB-A • For best results, an HDMI 2.1 cable is recommended when connecting to the monitor. • When connecting devices to the monitor, it is recommended to connect the USB-B first.
- Page 6 Users Controls Press the joystick in to turn the monitor on/off. Note: To access the monitor settings, ensure you first have a source connected to one of the monitor ports. RIGHT LEFT DOWN Joystick Control Description Blue - Power on. Indicator Red - Standby.
- Page 7 ASSEMBLY Stand Assembly Place a cloth on a flat table. Gently lay the monitor on the Ensure there are no hard objects, cloth with the screen facing such as screws, on the table. down. Secure the stand stem to the Slot the assembled stand into the stand base using the provided monitor.
- Page 8 Adjust The Angle The angle of the screen can be adjusted forward 5°or backward 20° to create the ideal viewing experience. Notes: • Do not touch or press the screen when adjusting the angle of the monitor. • The images below are for illustrative purposed only. Actual monitor may differ slightly.
- Page 9 Place a clean, dry and lint-free cloth on a flat, stable surface. Gently lay the monitor on the cloth with the screen facing down. Identify the 4 wall mounting screw holes on the back of the monitor. Install the wall mounting bracket (not provided) on the back of the monitor and attach the monitor to the wall according to the mounting bracket's instructions.
-
Page 10: Operation
OPERATION Insert one end of the provided DP 1.4 cable into your computer's graphics card. Insert the other end of the cable into the DP port on your monitor. Connect the power adapter to the monitor and then connect the other end of the power adapter to the power cord. - Page 11 Using the OSD Menu To view the OSD menu, press the joystick to the right. Configure the options by moving the joystick up, down, left and right. To return to the previous menu, move the joystick to the left. To exit the OSD menu, move the joystick to the left until you exit.
-
Page 12: Specifications
SPECIFICATIONS Panel type Curvature R2300 (TYPE) Aspect ratio 21:09 Size (inch) 37.5" Resolution 3840 x 1600 Panel Refresh rate 144Hz Brightness (typ.) 300cd/M² (max) Contrast ratio static TYP 1000:1 Colour support 1.07B (8-BIT + HI-FRC) Viewing angle (H/V) 178/178 (H/V) Response time (GTG) 5 (Typ.) (G to G) ms, with OD Ims HDMI+DP+TYPE-C+3-1 x USB (TYPE B) - Page 13 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
