Summary of Contents for gofanco Prophecy PRO-KVMaud2Pv2

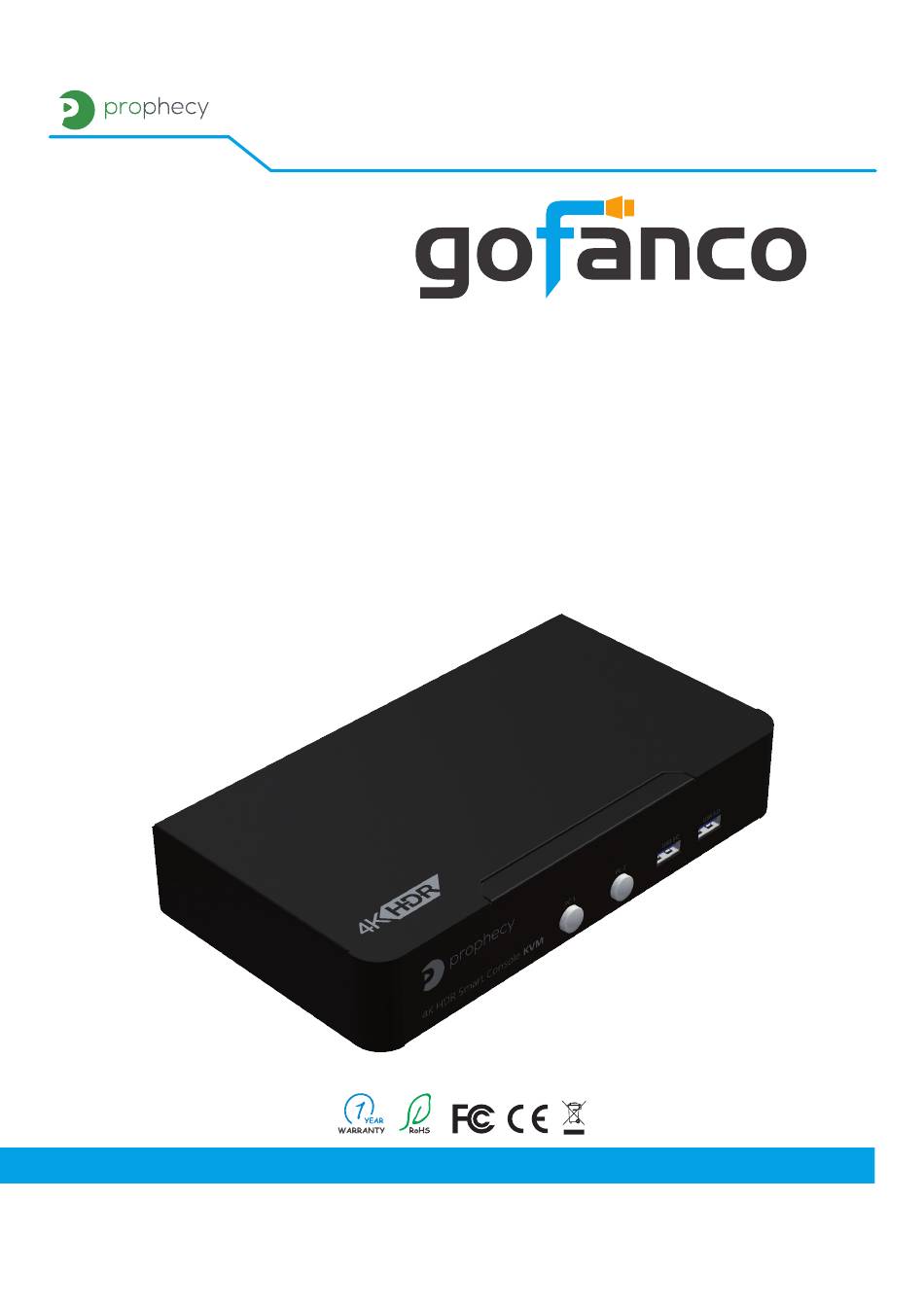

- Page 1 ® PRO-KVMaud2Pv2 2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB User‘s Guide Made in Taiwan...
- Page 2 ® PRO-KVMaud2Pv2 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.
-
Page 3: Table Of Contents
® PRO-KVMaud2Pv2 Table of Contents 1. Safety and Notice ..............3 2. -
Page 4: Introduction
® PRO-KVMaud2Pv2 2. Introduction The PRO-KVMaud2Pv2 2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB pro- vides the most flexible and cost effective solution in the market for multiple com- puter management at home & office. The KVM switch can control 2 HDMI USB com- puters by one set of console peripherals (keyboard, mouse &... -
Page 5: Specification
® PRO-KVMaud2Pv2 5. Specifications Item Description Technical Role of usage 2-Port HDMI KVM Switch HDMI compliance HDMI 2.0a, 3D & 4K2K@60Hz HDCP compliance Up to HDCP 2.2 Video bandwidth Single-link 594MHz [18Gbps] Video support Up to HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio ESD protection... -
Page 6: Connection Diagram
® PRO-KVMaud2Pv2 6. Connection Diagram... -
Page 7: Panel Description
® PRO-KVMaud2Pv2 7. Panel Description Front Panel 1. Port 1-2Selection Push Button: Switch between computers 2. USB 3.0 Hub: Connect to USB devices Rear Panel 3. Console USB Ports: Connect tokeyboard & mouse 4. KVM Video IN 1-2 (HDMI IN 1-2): Connect the HDMI cable to PC 5. -
Page 8: Hotkey
® PRO-KVMaud2Pv2 8. Hotkey Default setting, all of the following commands begin by pressing the [Scroll Lock] key twice. Please follow the hotkey command listed below for selected operating functions: Hot key Definition [Scroll Lock] + [Scroll Lock] + [Ctrl] + [Enter] Change [Scroll Lock] [Scroll Lock] to [Ctrl] [Ctrl] [Ctrl] + [Ctrl] + [Scroll Lock] + [Enter] Change [Ctrl] [Ctrl] to [Scroll Lock] [Scroll Lock]... -
Page 9: Notice
® PRO-KVMaud2Pv2 9. Firmwave update Firmware update is proceeded through Micro-USB KVM F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch PIN#1 to ON[] and then power on device 3. Open firmware update software and then select COM Port 4. - Page 10 ® PRO-KVMaud2Pv2 MCU F/W update 1. Connect the Micro-USB to USB cable between PC and device 2. Set dip switch PIN#2 to ON[] and then power on device 3. Open firmware update software and then select COM Port 4. Click “MCU“ button to open “Firmware Update MCU” windows. 5.
-
Page 11: Limited Warranty
® PRO-KVMaud2Pv2 10. Limited Warranty The SELLER warrants the PRO-KVMaud2Pv2 2-Port HDMI 2.0a/Audio KVM Switch with USB 3.0 HUB free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge. - Page 12 ® Thank you for choosing gofanco www.gofanco.com Mar, 2025 Ver. D Copyright © by gofanco, LLC. All rights reserved.
