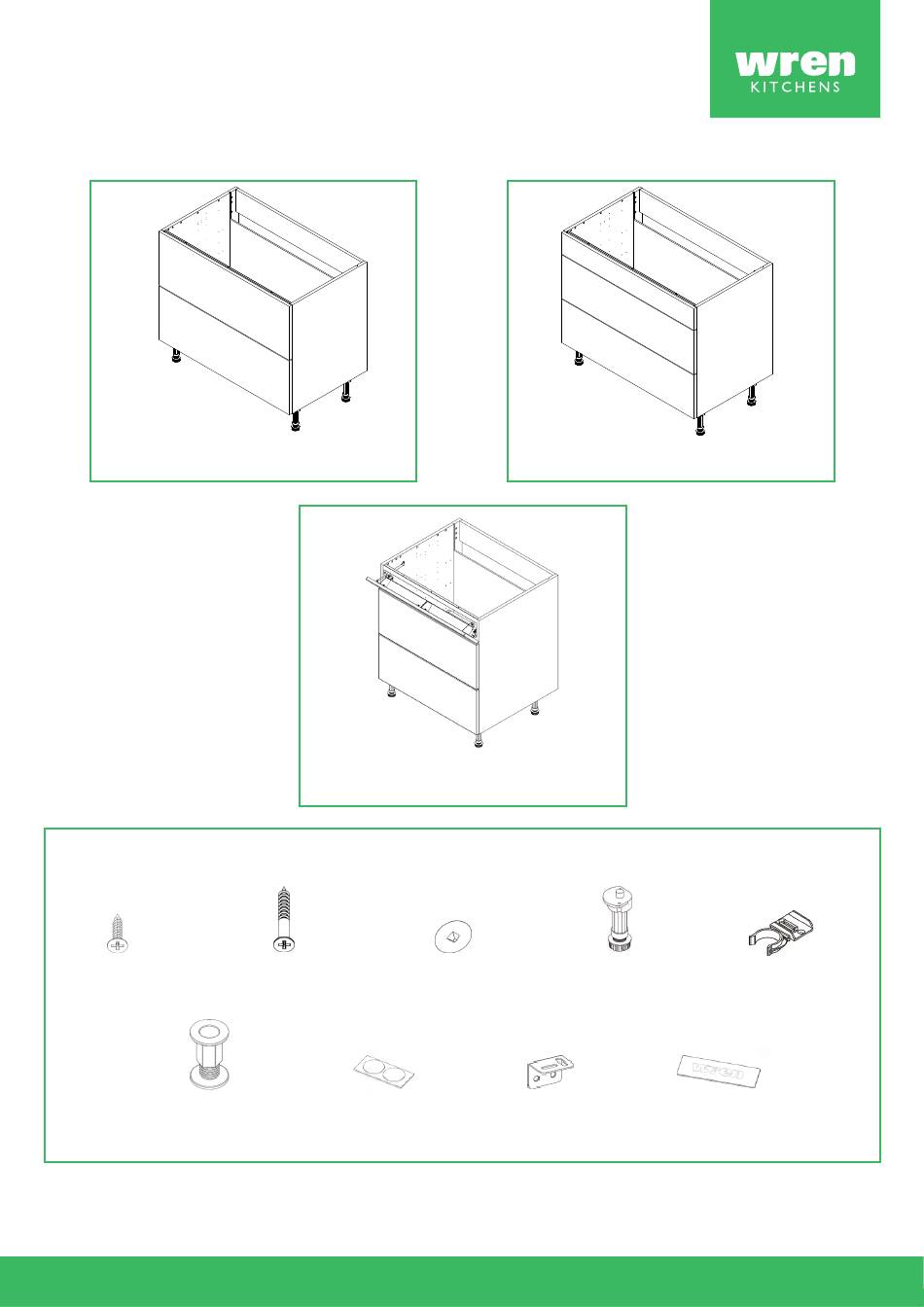

Base Cabinet
Sink Base (Drawer, Non-Open Drawer, Open Top, 5 Legs)
2 drawers including non-open
3 drawers including 2 non-open
drawer
drawers
3 drawers including 1 non-open
drawers and tip out drawer
Cabinet Parts
32x 5/8"
6x 1 1/4"
18x
5x
2x
Screws
Screws
Cover Caps
Legs
Toe Kick Clips
2x
5x
2x
Drawer
Space Plugs
Door Buffers
L-Brackets
Cover Caps
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wren Kitchens New Infinity Plus Base Cabinet
Summary of Contents for Wren Kitchens New Infinity Plus Base Cabinet
- Page 1 Base Cabinet Sink Base (Drawer, Non-Open Drawer, Open Top, 5 Legs) 2 drawers including non-open 3 drawers including 2 non-open drawer drawers 3 drawers including 1 non-open drawers and tip out drawer Cabinet Parts 32x 5/8” 6x 1 1/4” Screws Screws Cover Caps Legs...
- Page 2 Tools Required Drill Holesaw Jigsaw Stanley Knife Stud Finder Mallet Screwdriver Clamp Spirit Level Tape Measure Remember to take care when unpacking. Please keep your workspace clean, clear, and tidy when working. This will help keep all items safe from damage. Any waste cardboard or plastic should be flattened down and placed in the trash can.
- Page 3 Securing the legs Secure each of the cabinet legs to the cabinet using 2x 5/8” screws per leg. Make sure the legs are positioned as seen in the image to support the end panel. Set the leg height to 4 9/16”. The leg height can be adjusted by turning the foot of the leg clockwise or anti-clockwise.
- Page 4 Locating the stud Using a stud finder, locate the studs where the cabinet will be installed and mark the wall where the cabinet will sit. For help on determining the sort of wall you have, please refer to the “Room Preparation Guide.” Postioning the cabinet into place Position the cabinet against the wall so that the stud is in the center of the cabinet.
- Page 5 Ensure to double check the measurements by placing the cabinet in line with the wall markings and check the marking is in the same place as the services. Drilling the back of the cabinet Drill a hole using the correct holesaw for the size of the pipe at the marked locations.
- Page 6 Cutting the groove Use a stanley knife make a small square cut at the top of the groove on the back of the cabinet. This is to allow for the back panel to side out. Removing the back panel Slide the back panel up and out of the cabinet and place the panel on supported surface.
- Page 7 Take time to double check the measurements of the services before drilling. Drilling the back panel Make sure the panel is fully supported before starting to dill. Drill a hole using the correct holesaw for the size of the pipe at the marked locations.
- Page 8 Before drilling into the wall, you MUST check for any hidden services or pipework within the walls. Drilling the cabinet and wall Place the cabinet back up against the wall. Drill 2 holes through both the rear top rail and the wall at the marked locations. For guidance on the appropriate wall fixing/ screws for each wall type, please consult the “Room Preparation Guide.”...
- Page 9 Securing an adjacent cabinet Any adjacent cabinets need to be secured using the 1 1/4” screws provided. Screw to the rear of both hinge plates and to the rear of the cabinet at the top and bottom. Inserting the drawers Slide the drawer onto the runner, making sure the runner mechanism and the drawer side grooves line up.
- Page 10 Removing the drawer cover caps (Infinity Cabinets) Place a flathead screwdriver in the small groove between the cover cap and the drawer side and carefully twist. Keep the cap in a safe place until it is needed again. Adjusting the frontal (Infinity Cabinets) Adjust the frontal to suit, as shown in the image.
- Page 11 Adjusting the frontal horizontally (Infinity Plus Cabinets) Use the fixing clips, which are found under the drawer’s front, to adjust the drawers. Step 1 - Press the fixing clips half way to meet the runners on the underside of the drawer. Step 2 - Slide the drawer to the left or right to adjust.
- Page 12 Cleaning the cabinet Finally, the cabinet should be thoroughly cleaned to remove any debris that may have accumulated during the installation. Store the toe kick clips and the remaining 5/8” screws. These will be used later when attaching the toe kick. Store the L-brackets.
