FIFE GUIDING SOLUTIONS
FIFE SMARTDRIVE ACTUATOR
Installation and Service Manual
EN
Versions 1200N/2450N
Edition 10/2024
MI 1-946

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIFE SMARTDRIVE and is the answer not in the manual?

Questions and answers

Related Manuals for Maxcess FIFE SMARTDRIVE

Summary of Contents for Maxcess FIFE SMARTDRIVE

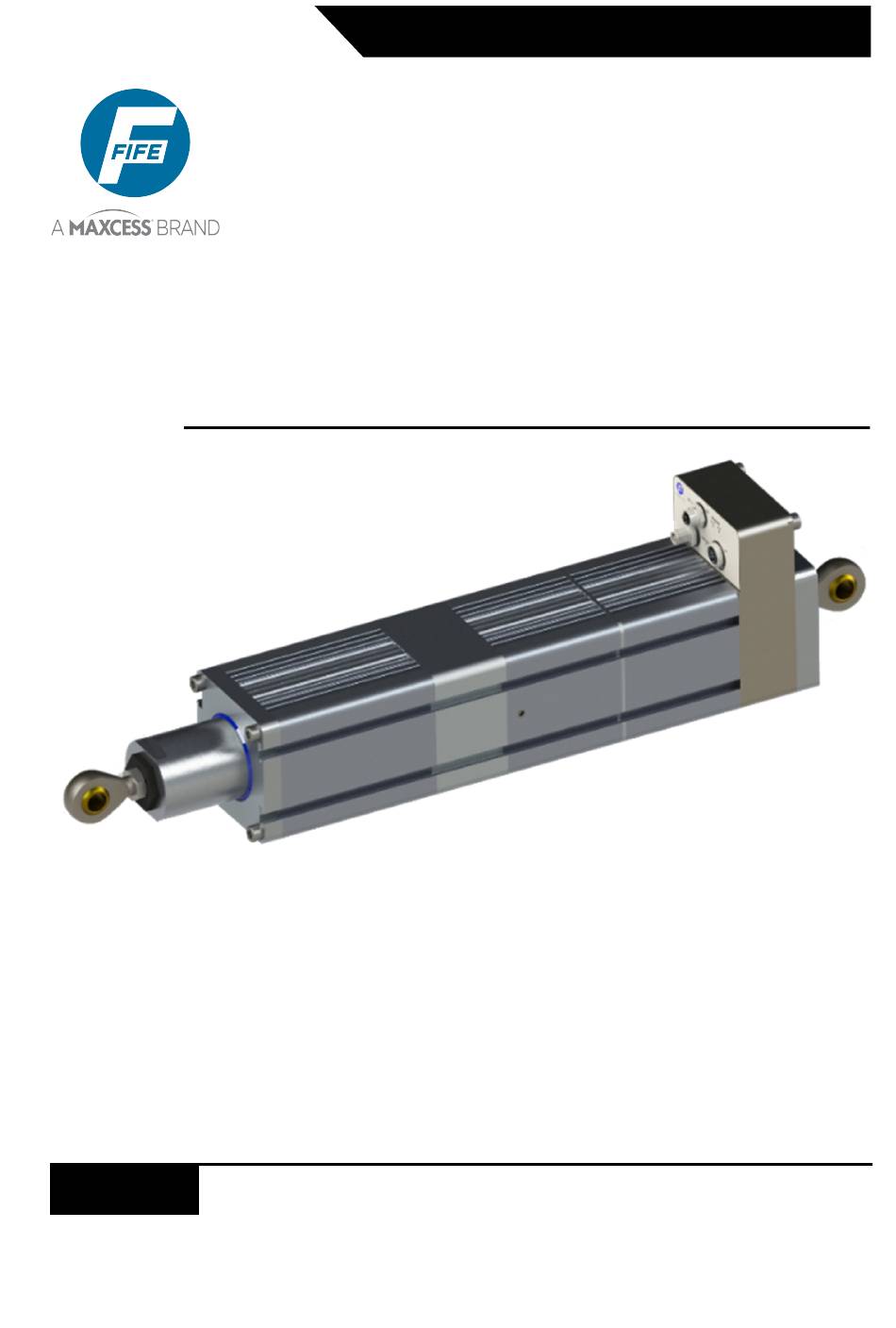

  • Page 1 FIFE GUIDING SOLUTIONS FIFE SMARTDRIVE ACTUATOR Installation and Service Manual Versions 1200N/2450N Edition 10/2024 MI 1-946...

  • Page 2: Table Of Contents

    Contact Details ............6-1 MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 3: Introduction

    All of the information herein is the exclusive proprietary property of Maxcess International and is disclosed with the understanding that it will be retained in confidence and will be neither duplicated nor copied in whole or in part nor be used for any purpose other than for which disclosed.

  • Page 4: Language

    Each actuator comes with an integrated positional encoder. The actuator works with most Fife sensors. Language These are the original instructions, written in English. Actuator Mounting and Coupling Options Rod end coupling connection Clevis coupling connection MI 1-946 Fife SmartDrive Actuator www.maxcess.com...
  • Page 5 INTRODUCTION 1 - 3 Flange coupling connection Trunnion coupling connection www.maxcess.com Fife SmartDrive Actuator MI 1-946...

  • Page 6: Safety Instructions

    The signal word CAUTION refers to a possible danger which could lead to slight to moderate injury. The signal word ATTENTION refers to a possible danger which could lead to material damage. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 7: Symbols Used

    Additional markings – Bulleted list ∙ Instructions 1. Instructions which must be processed in the specified order 2. End of the instructions  Reference or cross-reference ▶ additional information Note: Reference to important information. www.maxcess.com Fife SmartDrive Actuator MI 1-946...

  • Page 8: Basic Safety Information

    Any SmartDrive Actuator which is damaged must not be installed or put into service. Only perform installation, maintenance, or repair tasks on the SmartDrive Actuator when the machine has been stopped and is secured from being turned on. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...
  • Page 9 Do not touch anything on or in the vicinity of the moving parts. Appropriate protective guards must be installed by the user according to his use of this product. www.maxcess.com Fife SmartDrive Actuator MI 1-946...

  • Page 10: Residual Risks

    This can be accomplished by either surrounding the Operator Interface with a safety screen, or by mounting the Operator Interface in a safe location. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 11: Installation

    WARNING - Death or injury crushing. Maintenance and repair tasks on the Smart Drive Actuator must be performed only when the machine has been stopped and has been secured from being turned on again. www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 12 359.6 [14.1] 462 [18.12] 150 [5.91] 384.6 [15.08] 499.5 [19.59] 200 [7.87] 434.6 [17.04] 574.5 [22.53] 250 [9.84] 484.6 [19] 649.5 [25.47] 300 [11.81] 534.6 [20.96] 724.5 [28.41] 400 [15.75] 634.6 [24.89] 874.5 [34.29] MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 13: Mounting The Operator Interface

    Interface Units are in mm [in] Figure 3.1:Operator Interface SDA is designed to work with the GuideLine Operator Interface. The Interface can be either panel-mounted or mounted utilizing the threaded hole in the bottom. www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 14 3 - 4 INSTALLATION 1. Mounting brackets 2. Panel jack screws 3. Replacement screws Figure 3.2:The panel mount kit part number for GuideLine OI is 290013970. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...
  • Page 15 INSTALLATION 3 - 5 Figure 3.3: Wall Mount Kit Dimensions www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 16 3 - 6 INSTALLATION 1. Panel Mount brackets 2. Dog point set screw, M4x40 3. BTHD socket cap screw, M3x12 4. Wall mount frame Figure 3.4:The wall mount kit part number for GuideLine OI is 290013970. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 17: System Schematics

    7. Qty of 1, 29L92592-001, Power Supply 4. Qty of 1, 290014409-xxx, Cable for (1200N), 24VDC, 240W, 10A GuideLine Sensor or Qty of 1, 621000013-001, Power Supply 5. Qty of 1, 290014408-xxx, Cable for (2450N), 24VDC, 480W, 20A www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 18 Cable for Guideline OI 620001149- Cable for Power Supply 29L92592-001 Power Supply (1200N), 24VDC, Min. Req. 240W, 10A CP10.241 621000013- Power Supply (2450N), 24VDC, Min. Req. 480W, 20A CP20.241 Note: Configuration 1 is used for Line/Center Guiding. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 19: Configuration 2 (Sda + Guideline Oi + Dse Sensor)

    4. Qty of 1, 6200011720-xxx, Y-Cable, 2 (1200N), 24VDC, 240W, 10A pairs, for GuideLine OI, M16 to M12 x2 or Qty of 1, 621000013-001, Power Supply 5. Qty of 2, 620001043-xxx, Ext. Cable (2450N), 24VDC, 480W, 20A www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 20 Extension Cables (Sensor, OI), M12 F to M12 M 620001149- Cable for Power Supply 29L92592-001 Power Supply (1200N), 24VDC, 240W, Min. Req. CP10.241 621000013- Power Supply (2450N), 24VDC, 480W, Min. Req. CP20.241 Note: Configuration 2 is used for Edge Guiding. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 21: Configuration 3 (Sda + Guideline Oi + Dse Sensor X2)

    4. Qty of 1, 620001721-xxx, Y-Cable 3 pairs, (1200N), 24VDC, 240W, 10A for GuideLine OI, M16 to M12 x3 or Qty of 1, 621000013-001, Power Supply 5. Qty of 3, 620001149-xxx, Ext. Cables (2450N), 24VDC, 480W, 20A www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 22 Extension Cables (Sensor, OI), M12 F to M12 M 620001149-XXX Cable for Power Supply 29L92592-001 Power Supply (1200N), 24VDC, 240W, Min. Req. CP10.241 621000013-001 Power Supply (2450N), 24VDC, 480W, Min. Req. CP20.241 Note: Configuration 3 is used for Edge Guiding. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 23: Configuration 4 (Sda + Guideline Oi + Dse Sensor)

    8. Qty of 1, 29L92592-001, Power Supply (1200N), 24VDC, 240W, 10A 4. Qty of 1, 290014408-xxx, Cable for or Qty of 1, 621000013-001, Power Supply GuideLine OI (2450N), 24VDC, 480W, 20A 5. Qty of 1, 290014387, GuideLine OI www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 24 Cable for Guideline OI 290014387 Guideline OI 620001149- Cable for Power Supply 621000017- Cabe for OI Power 29L92592-001 Power Supply (1200N), 24VDC, 240W, Min. Req. CP10.241 621000013- Power Supply (2450N), 24VDC, 480W, Min. Req. CP20.241 MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 25: Configuration 5 (Sda + Guideline Oi + Dse Sensor X3)

    8. Qty of 1, 29L92592-001, Power Supply (1200N), 24VDC, 240W, 10A 4. Qty of 1, 290014408-xxx, Cable for or Qty of 1, 621000013-001, Power Supply GuideLine OI (2450N), 24VDC, 480W, 20A 5. Qty of 1, 290014387, GuideLine OI www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 26 Cable for Guideline OI 290014387 Guideline OI 620001149- Cable for Power Supply 621000017- Cabe for OI Power 29L92592-001 Power Supply (1200N), 24VDC, 240W, Min. Req. CP10.241 621000013- Power Supply (2450N), 24VDC, 480W, Min. Req. CP20.241 MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 27: Wiring

    85?C. The wire size should be 14 AWG. 1. Connect a 24 VDC (nominal) power supply to the power cable. 2. Connect the PE of the building or machine to the power cable Yellow wire. Power Cable: 620001149-XXX www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 28 YELLOW wire and the PE circuit of the building or machine. CAUTION Never place electrical cables under mechanical strain. Always provide mechanical support of wiring with either clamps or flexible or rigid conduit. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 29: Connector Pinout

    INSTALLATION 3 - 19 Connector Pinout Table 3.6: Connector Pinout X1OI/Sensor X2-Power X3-Ethernet RS485 A2 VCC in RS485 B2 Lock RS485 A1 VCC Logic in RS485 A3 RS485 B1 RS485 B3 www.maxcess.com Fife SmartDrive Actuator MI 1-946...

  • Page 30: Maintenance

    Do not directly spray the screen. Compressed air or a shop vacuum may also be used as necessary. MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 31: Service Requests And Replacement Parts

    MAINTENANCE 4 - 2 Service Requests and Replacement Parts Figure 4.1:Layout of the SDA linear actuator assembly. www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 32 Layout of the SDA linear actuator assembly Table 4.1: ITEM Description Part Number Wiper Seal 620000669-001 Piston ring 620000668-001 Lithium Battery 52M493637 Battery Retainer 52M493638 Fuse 20A 52M493635 Fuse 3A 52M493636 Driver PCBA 52M466264 Controller PCBA 52M466265 Cable Tie 52M128746 MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 33: Technical Data

    It's crucial to use power supplies (PSUs) that meet the recommended specifications and guidelines provided by Maxcess to ensure the safe and reliable operation of SDA. Using a PSU that is not recommended or under the recommended specification can lead to several issues.

  • Page 34: Inputs And Outputs

    Sensors (except DSE-26C) 50 m [164 ft] Sensors DSE-26C (GuideLine Sensor 25 m [82 ft] Ethernet 100 m [328 ft] Operator Interface Via RS-485 50 m [164 ft] Operator Interface Via Maxnet 100 m [328 ft] MI 1-946 Fife SmartDrive Actuator www.maxcess.com...

  • Page 35: Service

    For repairs /returns, you will receive a return note after consultation. Please send the products with the return note to the address indicated on it. Technical service Phone: +49 - 6195 - 7002 - 0 E-mail: service@maxcess.eu www.maxcess.com Fife SmartDrive Actuator MI 1-946...
  • Page 36 6 - 2 SERVICE EUROPE, MIDDLE EAST NORTH, CENTRAL ASIA AND AFRICA AND SOUTH AMERICA PACIFIC Phone +49.6195.7002.0 Phone +1.844.629.2377 Phone +86.756.881.9398 www.maxcess.com sales@maxcess.eu sales@maxcessintl.com info@maxcessintl.com.cn © 2023 Maxcess...
