MAGPOWR TENSION CONTROL
DLCA NET-S1
User Manual
EN
MI 850A374 1 A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGPOWR DLCA NET-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxcess MAGPOWR DLCA NET-S1

Summary of Contents for Maxcess MAGPOWR DLCA NET-S1

  • Page 1 MAGPOWR TENSION CONTROL DLCA NET-S1 User Manual MI 850A374 1 A...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION About these operating instructions ..............6 Product overview ..................... 7 1.2.1 Additional tools ................... 8 Model number ....................9 Serial number....................9 SAFETY Instructions for use ..................10 Symbols used ....................10 Basic safety information ................11 INSTALLATION Mechanical ....................
  • Page 4 CONTENTS Security state ....................42 Status ......................42 Alarm ......................43 Command interface..................43 8.6.1 Command request ................44 8.6.2 Command/parameter list ..............44 8.6.3 Command response ................48 Function information ..................49 8.7.1 Security ..................... 49 8.7.2 Reset non-volatile (NV) memory to defaults ........50 8.7.3 Zeroing the tension ................
  • Page 5 CONTENTS FIGURES Figure 1. DLCA NET-S1 dimensions ..................13 Figure 2. DLCA NET2-S1 wiring using MAGPOWR load cells ..........15 Figure 3. Non-MAGPOWR load cell wiring ................16 Figure 4. DLCA NET-S1 common wiring ................17 Figure 5. DLCA NET2-S1 two tension zone analog outputs wiring ........18 Figure 6.

  • Page 6: Introduction

    About these operating instructions All of the information herein is the exclusive proprietary property of Maxcess International, and is disclosed with the understanding that it will be retained in confidence and will neither be duplicated nor copied in whole or in part nor be used for any purpose other than for which disclosed.

  • Page 7: Product Overview

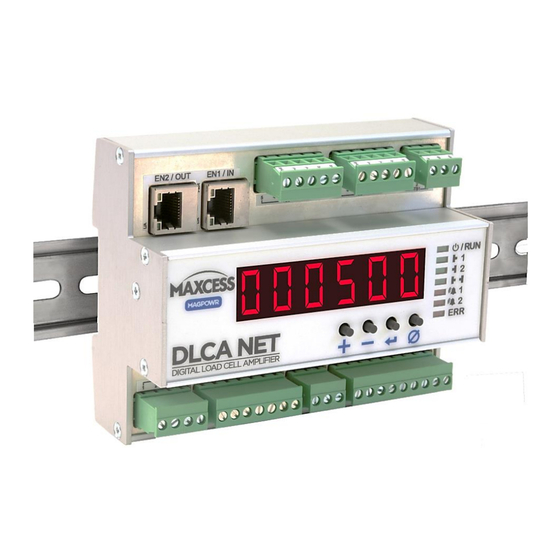

    CONTENTS Product overview The DLCA NET-S1 is a DIN rail-mounted digital load cell amplifier that provides excitation voltage for load cells, measures the returned force signal, and then converts this signal into a digital value that represents tension and analog output signals. The tension is displayed on the DLCA NET-S1 device.

  • Page 8: Additional Tools

    CONTENTS Product overview continued The DLCA NET-S1 has three alarm outputs. Two of the alarm outputs can be configured to sense tension limits on either of the two sensor inputs. The third alarm output is on when there are no load cell wiring problems detected or power faults. This is essentially a 'power good' indicator.

  • Page 9: Model Number

    CONTENTS Model number The model number and the serial number are shown on the enclosure. The model number consists of the base model DLCA NET followed by the numeral 2 to denote number of tension zones the product will read, followed by "S1". Available models DLCA NET2-S1 –...

  • Page 10: Safety

    SAFETY INSTRUCTIONS 2.0 Safety Instructions for use To ensure safe and problem free installation of the digital load cell amplifier, the digital load cell amplifier must be properly transported and stored, professionally installed and placed in operation. Proper operation and maintenance will ensure a long service life of the device.

  • Page 11: Basic Safety Information

    The digital load cell amplifier must be securely mounted before being placed in operation. Only replacement parts obtained from Maxcess may be used. No modifications may be made to the digital load cell amplifier.
  • Page 12 SAFETY INSTRUCTIONS Basic safety information continued WARNING – Death or injury can result from unexpected movement of the machine into which the DLCA NET-S1 is installed. Protect against unexpected movement by removing electrical power from the digital load cell amplifier and the machine into which the digital load cell amplifier is being installed.

  • Page 13: Installation

    INSTALLATION 3.0 Installation Use shielded cable for all cables except for power cable. Mechanical 1. Mount the DLCA NET-S1 to a 35 mm DIN rail. See Figure 1. for DLCA NET-S1 dimensions. Figure 1. DLCA NET-S1 dimensions www.maxcessintl.com DLCA NET-S1 MI 850A374 1 A Page 13 of 67...

  • Page 14: Electrical

    INSTALLATION Electrical 1. Connect a 24 VDC ±10% power supply to TB1.1 (+24V) and TB1.2 (COM). 2. Connect the PE of the building or machine to terminal TB1.3 (PE). Note: The negative power connection TB1.2 is internally connected to the PE connection TB1.3. This connection is used for EMC compliance.

  • Page 15: Figure 2. Dlca Net2-S1 Wiring Using Magpowr Load Cells

    INSTALLATION 3.3.1 DLCA NET2-S1 wiring using MAGPOWR load cells DLCA NET2-S1 two tension zones, one load cell from each zone DLCA NET2-S1 two tension zones, one or two load cells from each zone Figure 2. DLCA NET2-S1 wiring using MAGPOWR load cells www.maxcessintl.com DLCA NET-S1 MI 850A374 1 A...

  • Page 16: Figure 3. Non-Magpowr Load Cell Wiring

    INSTALLATION 3.3.2 Non-MAGPOWR load cell wiring Two Half Bridge One Half Bridge 500 mV Load Cells 500 mV Load Cells Precision bridge completion resistors; contact load cell manufacturer for values. Figure 3. Non-MAGPOWR load cell wiring www.maxcessintl.com DLCA NET-S1 MI 850A374 1 A Page 16 of 67...

  • Page 17: Analog Output And Digital Input Connections

    INSTALLATION Analog output and digital input connections DLCA NET2-S1: Two tension zone amplifier Output 1 is Tension Zone 1. (TB7.1, TB7.2, and TB7.3) Output 2 is Tension Zone 2. (TB7.4, TB7.5, and TB7.6) The meter output is for Tension Zone 1. (TB6.1 and TB6.2) The second meter output is for Tension Zone 2.

  • Page 18: Two Tension Zone Analog Outputs

    INSTALLATION Two tension zone analog outputs Figure 5. DLCA NET2-S1 two tension zone analog outputs wiring www.maxcessintl.com DLCA NET-S1 MI 850A374 1 A Page 18 of 67...

  • Page 19: Operation

    OPERATION 4.0 Operation There are four control buttons on the DLCA NET-S1. [+] = increment [-] = decrement [ ] = enter or save function* [n] = zero the displayed tension (the zero button)  ]. * For clarity, these instructions use the word [ENTER] instead of the symbol [ Power on The DLCA NET-S1 will display the software version number when power is first applied for five seconds and then the DLCA...

  • Page 20: Table 1. Load Cell Diagnostic Errors

    OPERATION Meaning Display Sensor 1 Sensor 2 Er 12 Sensor 1 Failure or other wiring error. Sensor 2 White (S+) or Black (S-) wire Example: Green and White wire are disconnected. swapped, etc. Er 16 Good Sensor 2 Red (P+) wire disconnected. Er 17 Sensor 1 White (S+) or Black (S-) wire Sensor 2 Red (P+) wire disconnected.

  • Page 21: Zeroing Tension Display

    OPERATION Zeroing tension display While displaying tension, press the [] button for two seconds to zero the tension in the tension zone being displayed. The outputs will also be zeroed. After zeroing tension zone 2, then tension zone 1 will need to be zeroed. This is due to the interaction of tension zone 2 on tension zone 1.

  • Page 22: Led Indicators

    OPERATION LED indicators Power Channel 1 (Tension Zone 1) Channel 2 (Tension Zone 2) Tension Sum (not used) Alarm 1 Alarm 2 Error Figure 6. LED indicators Power (Green) When power is on the Power indicator will be on. Tension display (Green) The LEDs indicate which channel or sum is being displayed.

  • Page 23: Programming Mode

    OPERATION Programming mode Enter the programming menu Press and hold [+] and [-] for two seconds. Exit the programming menu Press and hold [+] and [-] for two seconds from a menu item other than the load cell calibrations menu items. Also: while showing parameter P.17, you may press [ENTER] to exit the menu and return to displaying the tension.

  • Page 24: Calibrate Tension Using The Keypad

    CALIBRATE TENSION USING KEYPAD 5.0 Calibrate tension using the keypad See section 9.0 to perform calibrations from the communication interface. The DLCA NET-S1 uses Precision calibration. Precision calibration is used when applying a known weight with a rope in the web path to the load cells for calibration. Typically, this known weight should be 10% of the load cell rating or greater.
  • Page 25 CALIBRATE TENSION USING KEYPAD Start Precision Calibration procedure Channel 1: Use [+] and/or [-] to go to CAL1.1. Press [Enter] to enter the sub-menu. Display now shows C11.1. Remove any web tension from the load cells on channel 2. Unload the load cells on channel 1 that are measuring roll weight and press [Enter].
  • Page 26 CALIBRATE TENSION USING KEYPAD Precision calibration continued Channel 2: Use [+] and/or [-] to go to parameter CAL2.1. Press [Enter] to enter the sub-menu. Display now shows C21.1. Unload the load cells on channel 2 which are measuring web tension and press [Enter]. The DLCA NET-S1 will now zero out the idler roll weight and show a wait display.

  • Page 27: Figure 7. Apply Calibration Tension

    CALIBRATE TENSION USING KEYPAD Precision calibration continued Channel 1 and 2: Press and hold [+] and [-] for two seconds to enter programming mode. Use [+] and/or [-] to go to parameter CAL3.1. Press [Enter] to enter the sub-menu. Display now shows C31.1. Apply the calibration roll weight to channel 1 and calibration tension to channel 2 and Press [Enter].

  • Page 28: Calibration Errors (Using Keypad)

    CALIBRATE TENSION USING KEYPAD 5.1.1 Calibration errors (using keypad) Display Error description and solution PASS Calibration was successful. No Errors found. Er 1 Signal read by the amplifier is too large when maximum tension is applied. This is caused by maximum tension being too large. Reduce maximum tension.

  • Page 29: Entering Maximum Tension

    ENTERING MAXIMUM TENSION 6.0 Entering maximum tension The following are examples of displaying tension that results from the value entered for maximum tension and the selection of the decimal point position. The DLCA NET-S1 displays tension with three significant digits. Example 1 Using two GTSD-15000M load cells: ...
  • Page 30 ENTERING MAXIMUM TENSION Entering maximum tension continued Example 2 Using two GTSB-2200 load cells:  The rated load is 4400 lbs.  The application’s maximum tension is 2000 lbs.  Enter decimal point position as 00.00.  Enter Maximum tension as 2.00. ...

  • Page 31: Parameters

    PARAMETERS 7.0 Parameters This section describes the parameters available in the DLCA NET-S1. Filtering The tension display and the analog outputs have a separate low pass filter. The communication tension values can use either the tension display filter or have no filtering. The tension display filter response can be set from 500 Hz to 0.01 Hz.

  • Page 32: Alarm Setup And Operation

    PARAMETERS Alarm setup and operation The following parameters describe the setup and operation of the alarms. Parameter Description Units Defa Range AL1.1 Tension Channel/Zone used for alarm DLCA NET2- AL2.1 DLCA NET2-S1 0 = Tension Zone 1 {0, 1} 1 = Tension Zone 2 AL1.2 Alarm activation type.

  • Page 33: Alarm Operation With Hysteresis

    PARAMETERS 7.2.1 Alarm operation with hysteresis Alarm activation type 0 Alarm turns on when tension is greater than High value. Alarm turns off when tension is less than (HighValue – (HysteresisPercent * Maximum Tension)) Alarm activation type 1 Alarm turns on when tension is less than Low value. Alarm turns off when tension is greater than (LowValue + (HysteresisPercent * MaximumTension)) Alarm activation type 2...

  • Page 34: Hardware Configuration Parameters

    PARAMETERS Hardware configuration parameters These parameters configure the hardware or provide information about the hardware. Parameter Description Default P.01 Zero Tension Lock Issuing a Zero Tension Zone 1 or Zone 2 command will immediately zero the tension value. The zeroing of tension can be allowed or not when the security state is locked.
  • Page 35 PARAMETERS Parameter Description Default P.16 Program Version Set by The current version of software in this product factory Product Type (only available on communications and web server) Set by (Communication parameter 0x204) factory 1 = DLCA NET1 2 = DLCA NET2 3 = DLCA NET-SLIM1 4 = DLCA NET-SLIM2 5 = DLCA NET-IP651...

  • Page 36: Miscellaneous Parameters

    PARAMETERS Miscellaneous parameters Parameter Description Default P.05 Decimal Point Position, Tension Zone 1 Set the decimal point position to show when displaying tension. 0 = 000000 1 = 000000. 2 = 00000.0 3 = 0000.00 4 = 000.000 5 = 00.0000 6 = 0.00000 P.06 Tension Polarity, Tension Zone 1...

  • Page 37: Analog Output Scaling

    PARAMETERS Analog output scaling Each analog output’s output values for zero tension and maximum tension can be set by the following parameters. The default for the 0 to 20mA outputs is 0 and 20mA. Use these parameters to scale the 0 to 20mA output to be 4 to 20mA. Parameter Description Units...

  • Page 38: Calibrate The Analog Outputs (Not Normally Changed)

    PARAMETERS Calibrate the analog outputs (not normally changed) These parameters set the offset and gain for the analog outputs to calibrate the outputs to real volts or real current. The parameters compensate for component tolerances on each DLCA NET-S1. These parameters are calibrated at the factory and are not reset by the power-up function reset parameters to default.

  • Page 39: Password

    PARAMETERS Password Parameter Description Range P.00 Password {0, 9999} When the DLCA NET-S1 is locked, all parameters will be viewable but cannot be changed and no calibrations can be performed. To lock or unlock the DLCA NET-S1 press [Enter] to show the lock and unlock status, displayed as ULOC for unlocked and LOC for locked.

  • Page 40: Communications Interface

    COMMUNICATIONS INTERFACE 8.0 Communications interface An electronic datasheet (EDS) is available for Ethernet/IP and PROFINET IO. The EDS for the Ethernet/IP is embedded on the DLCA NET- www.maxcessintl.com. SLIM and also available at The GSD file for PROFINET is available on the website. Cyclic parameters The cyclic parameters are available to read tension and status from the DLCA NET-S1 and to send commands and parameters...

  • Page 41: Actual Tension Data

    COMMUNICATIONS INTERFACE Actual tension data Tension is read from the DLCA NET-S1 in the four cyclic parameters: Tension 1, Tension 2, Tension Sum, and Tension Difference. The tension value is a 32-bit signed integer and is scaled to be 160 times the Maximum Tension value, ignoring the decimal point position set by parameter 0x207 or 0x217.

  • Page 42: Security State

    COMMUNICATIONS INTERFACE Security state The status of security is shown in the Security State cyclic parameter. Value Status System is unlocked and changes can be made. System is locked and changes cannot be made. Status The Status cyclic parameter shows power good, power failure errors, and load cell check errors.

  • Page 43: Alarm

    COMMUNICATIONS INTERFACE Alarm The Alarm cyclic parameter shows the Alarm 1 and Alarm 2 state. Bit 0 is the status of alarm 1. Bit 1 is the status of alarm 2. Bit = 0, Alarm OFF Bit = 1, Alarm ON Command interface Commands are entered into the Command Request...

  • Page 44: Command Request

    COMMUNICATIONS INTERFACE 8.6.1 Command request Commands start at 0x0 and continue to 0x1FF. Parameters start at 0x200 and continue to 0x3FF. For parameters, add 0x1000 for a Write and 0x0000 for a Read to the parameter number. Command Read or write 8.6.2 Command/parameter list WO = Write Only, RO = Read only, RW = Read and Write...
  • Page 45 COMMUNICATIONS INTERFACE 0x00F Not Available None WO – int16 Function 0x010 Not Available None WO – int16 Function 0x011 Not Available None WO – int16 Function 0x012 Not Available None WO – int16 Function 0x013 Cal Output Meter, 1mA, 0% Function None WO –...
  • Page 46 COMMUNICATIONS INTERFACE 0x214 Not Available Parameter LC Cal RW – int16 0x215 Not Available Parameter LC Cal RW – int16 0x216 Tension Polarity Parameter LC Cal RW – int16 See 9.0 Configuration Tension 2 (Tension Zone 2) 0x217 DP Position Parameter Parm RW –...
  • Page 47 COMMUNICATIONS INTERFACE 0x239 0 to 20mA High Limit User Parameter Parm RW – int16 See 8.9 0x23A Output Filter Frequency Parameter Parm RW – uint16 See 7.1 Output 2 0x23B 0 to 10V Zero Offset Parameter Out Cal RW – int16 See 8.7.4 0x23C 0 to 10V Gain...

  • Page 48: Command Response

    COMMUNICATIONS INTERFACE 8.6.3 Command response Command Response A command response will be returned in the register. The response consists of a message type, an error or message number and the request command code all OR’ed together. When reading a parameter the value of the parameter will be returned Command Response Parameter Command in the...

  • Page 49: Function Information

    COMMUNICATIONS INTERFACE Function information This section describes how the functions are used. 8.7.1 Security The DLCA NET-S1 can be locked out to prevent parameter changes and calibrations from being performed. Setting or clearing security To set or clear the security state, two identical passwords must be entered using the command Password 1 Entry and Password 2 Entry.

  • Page 50: Reset Non-Volatile (Nv) Memory To Defaults

    COMMUNICATIONS INTERFACE 8.7.2 Reset non-volatile (NV) memory to defaults These commands will reset the specified parameters to factory defaults. Command Function Explanation Reset parameters belonging to Reset NV Parameters 0x019 Only the Parameter class. Reset parameters belonging to Reset NV Load Cell 0x01A Calibrations Only the Load Cell Calibration class.

  • Page 51: Reset Processor

    COMMUNICATIONS INTERFACE Command Description Range Output 1 0x007 Sets the 0 to 10V output to 0%. {0, 9999} Change the value until the meter reads 0.00 volts. 0x008 Sets the 0 to 10V output to 100% {0, 9999} Change the value until the meter reads 10.00 volts. 0x009 Sets the 0 to 20mA output to 0%.

  • Page 52: Get Or Set Parameters

    COMMUNICATIONS INTERFACE Get or set parameters 8.8.1 Get a parameter To get the value of a parameter, enter the parameter number in Command Request. The Command Response Parameter returned will contain the value of the parameter. 8.8.2 Set a parameter To set the value of a parameter, enter the value of the parameter Command Request Parameter.
  • Page 53 COMMUNICATIONS INTERFACE 0x241 Sets the 0 to 20mA output current 0.01 mA 0000 {0000, when the tension is zero. 2000} 0x242 Sets the 0 to 20mA output current 0.01 mA 2000 {0000, when the tension is equal to 2000} maximum tension. Meter Output 0x24F Sets the 0 to 1 meter output 1 current...

  • Page 54: Calibrate Tension Through The Fieldbus Procedure

    CALIBRATE TENSION THROUGH FIELDBUS 9.0 Calibrate tension through the fieldbus procedure The DLCA NET-S1 uses Precision calibration. Precision calibration is used when applying a known weight with a rope in the web path to the load cells for calibration. Typically this known weight should be 10% of the load cell rating or greater.

  • Page 55: Precision Calibration Procedure

    CALIBRATE TENSION THROUGH FIELDBUS Precision calibration procedure To get full 14-bit resolution, you must use three significant digits when entering calibration weight. See the chart for entering Maximum Tension in Section 8.2. Enter values into the calibration parameters shown below. These parameters are available for Tension Zone 1 and Tension Zone 2.
  • Page 56 CALIBRATE TENSION THROUGH FIELDBUS Start precision calibration procedure 1. Unload the load cell(s) for Tension Zone 1 which are measuring roll weight. There must be no web tension present on channel 2. 2. Enter the command 0x01 (Zero Calibrate Zone 1) in the Command Request register.
  • Page 57 CALIBRATE TENSION THROUGH FIELDBUS Precision calibration procedure continued 10. Apply the calibration tension to the load cells on channel 2 entered in parameter 0x21A. The calibration roll weight on channel 1 can either be there or not. If using a temporary web such as a rope, the rope should be centered on the roller and the wrap angle must be the same as the actual web.
  • Page 58 CALIBRATE TENSION THROUGH FIELDBUS Tension Polarity If the calibration is successful, then (0x216 and 0x223) will automatically be set to show positive tension when force is applied in the direction of the calibration force. Configuration Tension 1 The following parameters in the group Configuration Tension 2 are set by the calibration procedure:...

  • Page 59: Calibration Errors Returned

    CALIBRATE TENSION THROUGH FIELDBUS 9.1.1 Calibration errors returned Value Error description and solution 0x00 Calibration was successful. No Errors found. Signal read by the amplifier is too large when Maximum Tension is applied. 0x01 This is caused by Maximum Tension being too large. Reduce Maximum Tension.

  • Page 60: Web Server

    WEB SERVER 10.0 Web server With web server access, you can view a web page for your DLCA NET-S1 device that displays current values and provides links to other pages where you can perform calibrations or edit parameters. See page 61. An Ethernet connection can be made to either Ethernet port.

  • Page 61: Web

    WEB SERVER 10.2 Web pages Use the links in the left menu area to access other pages where you can view and edit parameters or perform calibration. The tension is displayed as a real number with the decimal point position included from parameter P.05 and P.07 in section Figure 9.

  • Page 62: Calibrate Tension From Web

    WEB SERVER 10.3 Calibrate tension from web pages To calibrate tension from the web pages, edit the parameters listed below in both tension zones before performing the calibration commands. When performing a calibration, the following calibration sequence must be done in order listed and in full before a calibration is valid. 10.3.1 Precision calibration from web pages For Precision calibrate enter these parameters: Load Cell Excitation voltage (on Hardware web page)

  • Page 63: Zero Tension From Web

    WEB SERVER 10.4 Zero tension from web pages To zero the tension in a tension zone 1. Unload the load cells. 2. Click on the link "Zero Tension Zone x". This is the same as pressing the [] button on the front panel. After zeroing tension zone 2, tension zone 1 will need to be zeroed.

  • Page 64: Specifications

    SPECIFICATIONS 11.0 Specifications General Supply voltage range - 24 VDC ±10% Proper earth grounding is required. Note that the negative supply and earth ground are interconnected on the product. The power supply must have an SELV output, such as Puls ML15.241, Mean Well MDR-20 to 24 or equivalent.
  • Page 65 SPECIFICATIONS Inputs and Outputs Load cell excitation voltage – 5 or 7.5 VDC, 200 mA maximum Load cell input – 1.5 mV/V to 100 mV/V 0 to 10 V analog output - 0 to 10 VDC, 2k maximum load 0 to 20 mA analog output - 0 to 20 mADC, 450 ohm maximum load Meter 1, 0 to 1mA or 0 to 10V - 0 to 1 mADC, 100 ohm maximum load...

  • Page 66: Service

    AND AFRICA AND SE ASIA Tel +1.405.755.1600 Tel +86.756.881.9398 Tel +91.22.27602633 Tel +81.43.421.1622 Tel +49.6195.7002.0 asia@maxcessintl.com Fax +1.405.755.8425 Fax +86.756.881.9393 Fax +91.22.27602634 Fax +81.43.421.2895 Fax +49.6195.7002.933 www.maxcess.asia sales@maxcessintl.com info@maxcessintl.com.cn india@maxcessintl.com japan@maxcessintl.com sales@maxcess.eu www.maxcessintl.com www.maxcessintl.com.cn www.maxcess.in www.maxcess.jp www.maxcess.eu © 2019 Maxcess...

  • Page 67: Appendix A: Dlca Net-S1 Flowchart

    APPENDIX A Appendix A: DLCA NET-S1 flowchart www.maxcessintl.com DLCA NET-S1 MI 850A374 1 A Page 67 of 67...
