superbrightleds EL3-RW User Manual

Important: Read all instructions prior to installation. SAVE THESE INSTRUCTIONS.

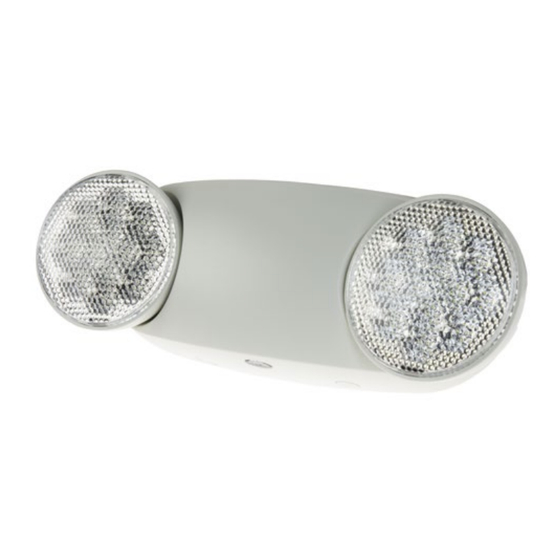

LED Emergency Light

Warning

Read and follow all safety instructions. When using electrical
equipment, basic safety precautions should always be followed
including the following:
• Disconnect power before performing work on electrical
equipment.
• For indoor use only.
• Do not let the power cords touch hot surfaces.
• Do not install in hazardous locations or near gas or electric
heaters.
• The use of auxiliary equipment not recommended by
manufacturer, may cause and will void the unit's warranty.
• Do not use this equipment for other than its intended
purpose.
• Servicing of this equipment should be performed by a
qualified service technician
• All electrical connections should be made in accordance
with National and Regional electrical code.
• Equipment should be mounted in locations and heights
where it will not readily be subjected to tampering by
unauthorized personnel.
• Allow battery to charge for 24 hours before first use.
• Unused wires must be capped.

Important Safeguards

Battery in this unit may not be fully charged at the time
electrical connection is made. Let the battery charge for at
least 24 hours for normal operation. To check charge, press
the "test" button.
¹Limited 2-year warranty on battery.
EL3-RW
¹

Specifications

Battery Type
Check product label for specific electrical
specifications related to installation.
Improper installation will void warranty.
Wiring Diagram
AC INPUT CONNECTOR
(MOUNTING PLATE)
RED
277V
BLACK
120V
WHITE
0V
YELLOW (+)
BLUE (-)
YELLOW (+)
LED
LED

Testing

Manual Test
Test button can be held to illuminate lights for manual
testing purposes.
Rev Date: V1 02/21/2023
4400 Earth City Expy, St. Louis, MO 63045
User Manual
EL3-RW
EL3-RW
Ni-Cd
BLACK
RED
BLUE (-)
866-590-3533
BATTERY
TEST
READY
superbrightleds.com
