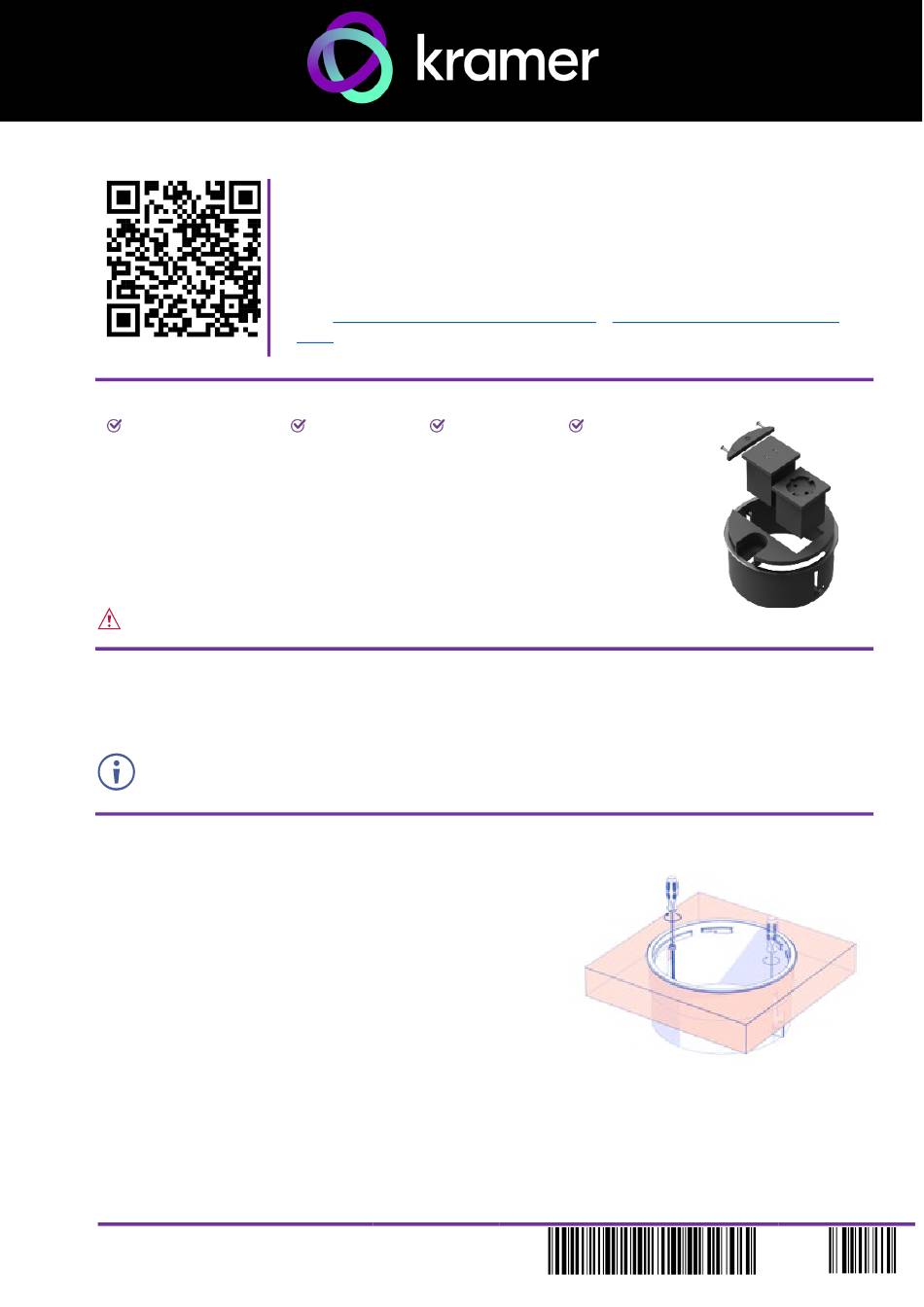

Step 1: Check What's in the Box
Enclosure sheet metal
Available in 2 colors: Black - RAL 9011 and White – RAL 9002
Step 2: Table Cutout Dimensions
T-IN1-RND1 - Ø108mm (4-¼")
•
T-IN2-RND2 - Ø139mm (5-½")
•
Kramer recommends using the cutout template (packed with device) and a hole saw for maximal accuracy.
Step 3: Place Enclosure – Fasten Screws
1.
Keep screws until the 'dog ear' is fastened to the table.
2.
Fit to standard table thickness between 10-50 mm (0.39" - 1.97").
T-IN1-RND1, T-IN2-RND1 Quick Start
T-IN1-RND1 & T-IN2-RND1
Quick Start Guide
This guide helps you install and use your T-IN1-RND1 & T-IN2-RND1 for the first time.
Go to
www.kramerav.com/downloads/T-IN1-RND1
RND1
to download the latest user manual and check if firmware upgrades are available.
Locking device
Inner frame
&
www.kramerav.com/downloads/T-IN2-
Cutout
template
P/N:
2 9 0 0 - 3 0 1 7 7 7 QS
Rev:
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kramer T-IN1-RND1
Summary of Contents for Kramer T-IN1-RND1
- Page 1 T-IN1-RND1 & T-IN2-RND1 Quick Start Guide This guide helps you install and use your T-IN1-RND1 & T-IN2-RND1 for the first time. Go to www.kramerav.com/downloads/T-IN1-RND1 & www.kramerav.com/downloads/T-IN2- RND1 to download the latest user manual and check if firmware upgrades are available.
- Page 2 Step 4: Slide the Chosen Module(s) and Insert Cable into Pass-through Holes Slide the chosen module(s) and use a screwdriver to lock the locking device. Insert cable heads in the pass-through holes. Modules listed in Modules List section Step 5: Place Inner Frame Place the inner frame into its position.
