Polaris Integra Arch Eco Manual Ref No: I17. V2.
Chimney
THIS PRODUCT IS SUITABLE FOR CHIMNEY INSTALLATION ONLY.
The stove is a radiant room heater with

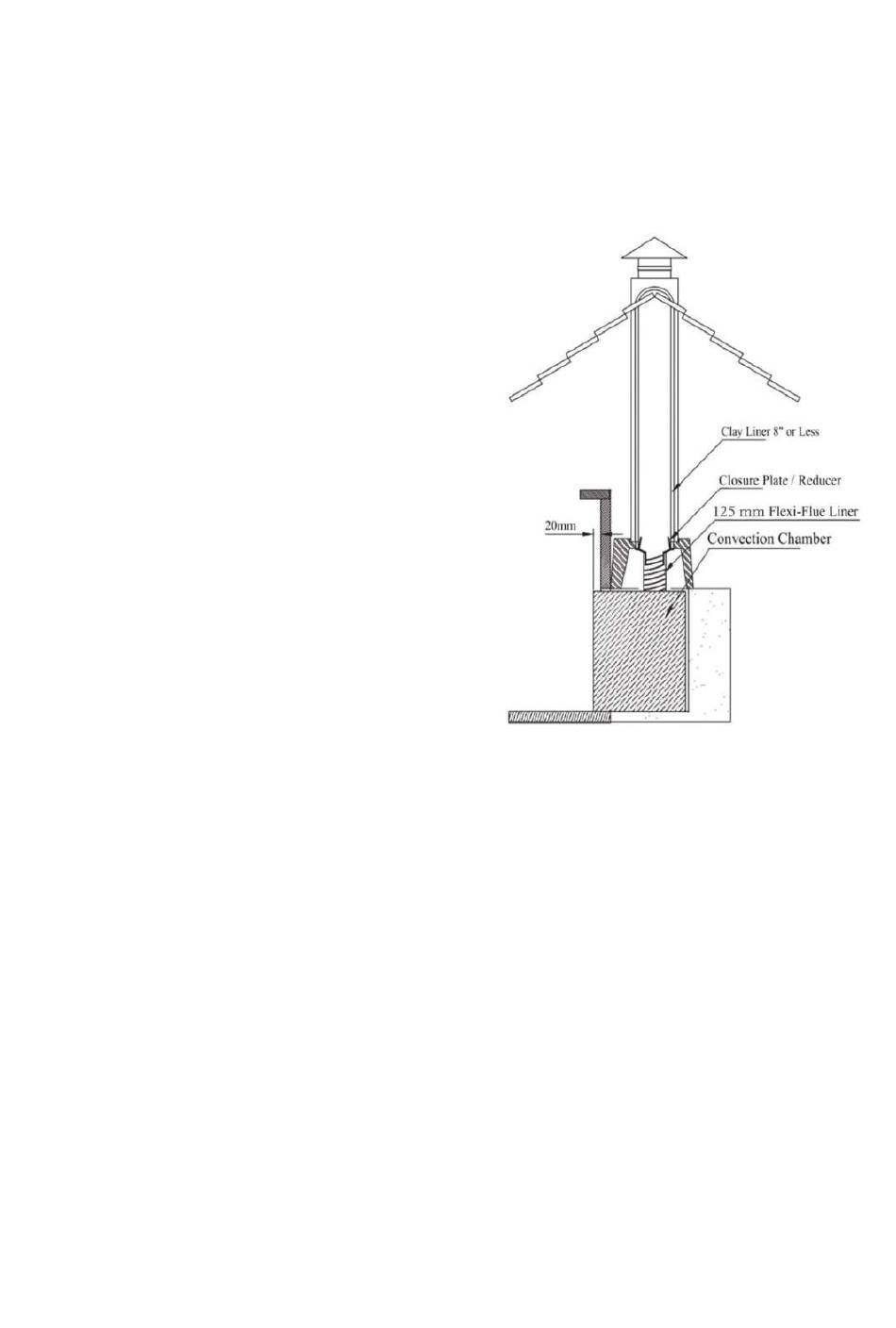

Figure 5
convection chamber and must be connected to
a chimney of the proper size and type. The
chimney must have a cross sectional area of
at least 124cm2 or a diameter of at least
125mm. Never connect to a smaller size
chimney. Do not connect to a chimney serving
another appliance. Minimum chimney height
4.5 meters from floor on which stove is
installed.
It is recommended that a flue liner of diameter
125mm be used to line the chimney, the liner
should be approved for use with solid fuel.
(See Fig. 4.)
It is permitted to connect using a closure plate
and a connection piece from the stove to the
closure plate (See Fig. 5.), provided that the
chimney is of sound construction with no leaks
or cracks, a clay flue liner has been used that
can withstand up to 1000oC, the clay liner has
a diameter no greater than 200mm.
ALL FLUE INSTALLATIONS ARE THE RESPONSIBILITY OF THE CUSTOMER.
The stove must be connected to a chimney with a minimum continuous draught of 12
Pascal's (.05" WG). Poor draught conditions will result in poor performance.
9 Cast Tec Ltd
