Polaris Integra Arch Eco Manual
Installing this stove
The stove and chimney installations MUST comply with all current National and Local
Building Regulations; your approved dealer or your local building control officer can advise
regarding this. Ultimately, it is you and your installer who is responsible that the installation
complies.
Pre-installation
After removing the stove from the packaging, open the fire door and remove the loose
packing. Prior to installation all the internal components of the stove are removed to gain
access to fixings and to make it lighter for installation.
A. Remove the refractory fire bricks, these
bricks are loose and just need to be lifted
clear of the grate support plate before they
can be removed.
B. To remove the loose baffle, lift the front
edge until it hits the top and then slide it
forward. Then drop the rear edge and the
baffle will slide down. To remove the fixed
baffle, loosen the two screws and slide it
forwards, it will then drop down.
C. Next, remove the riddle knob from the
riddle bar positioned at the front left of the
stove. Remove the inner riddling grate and
bar before pushing up the outer grate from
underneath. This will allow access to four
M6 fixings which will attach the stove to
the outer casing. Remove the 4 fixings,
allowing the insert stove to be removed
from the external casing.
8
INSTALLATION
Ref No: I17. V2.

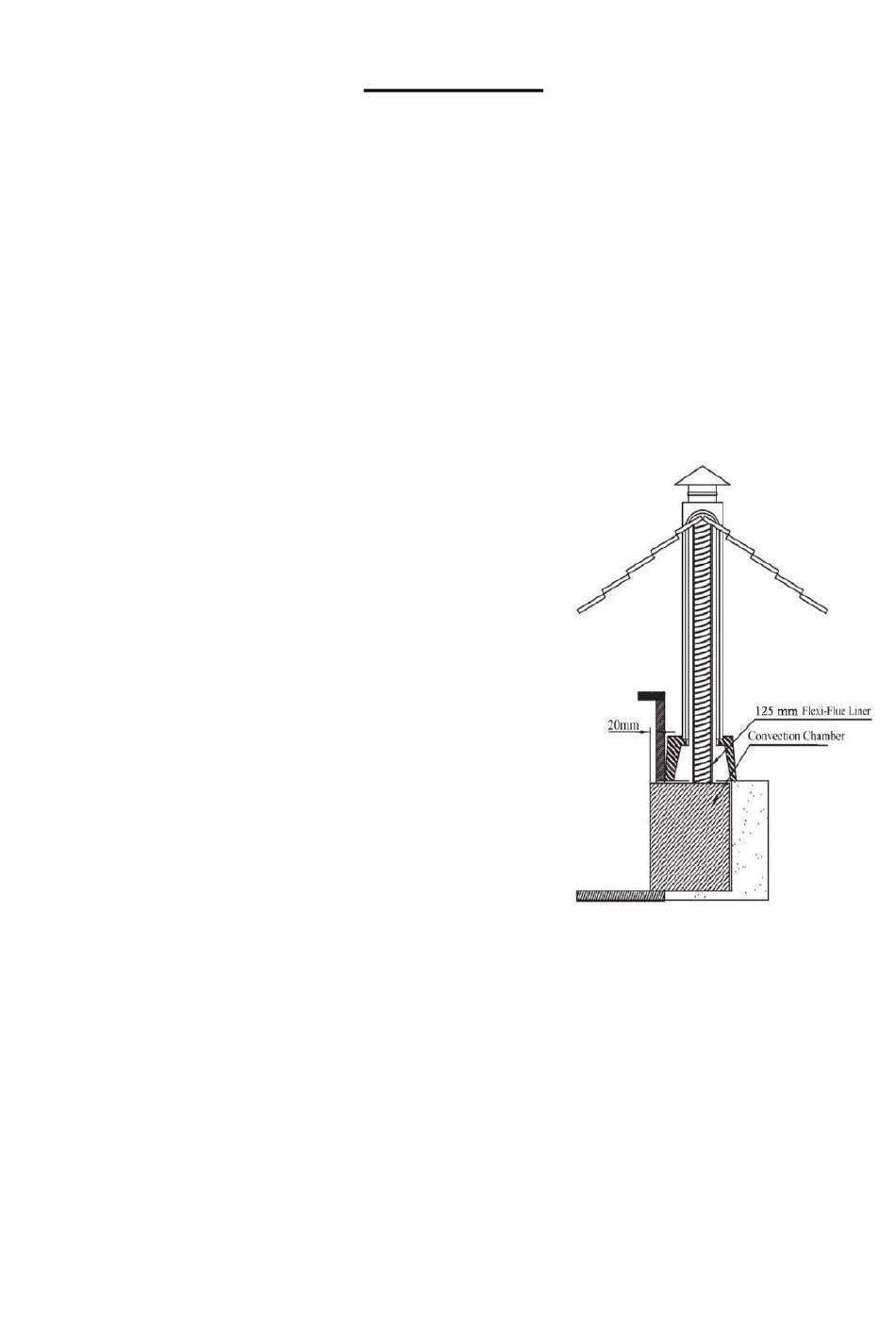

Figure 4
Cast Tec Ltd
