Polaris Integra Arch Eco Manual
FITTING INSTRUCTIONS (POLARIS ARCH INSET ECO ONLY)
Step 1. Prepare the fireplace area
with fireback or milner brick removal.
Ensure the opening is suitable for
fitting of the insert stove opening
required, i.e., remove fire surround
trim if fitted. (See Fig. 6.)
Step 2. Ensure the floor area is level
with the hearth, this area needs to be
level as the insert fire is screw fixed
to the floor.
Step 3. Lay the external casing into
the opening and position so that the
front edge protrudes 20mm past the front edge of the opening.
Step 4. Mark the drill location and drill the holes using a 4.5mm drill bit. Fix the casing
to the floor using the self-tapping screws provided.
Step 5. Lift the stove into the external casing. Remove all internal parts as per pre-
assembly instructions prior to lifting it. The stove can be lifted into the casing
approximately 125mm first and then it can be pushed into the final position while taking
care to lift the front edge to preserve the hearth.
Step 6. Drop the flexi flue liner with adaptor end attached into the fire opening ready to
connect to the appliance.
Step 7. Lay the sealing gasket on to the flue spigot, and then fit the flue spigot to the
end of the flexi flue liner using the 2 grub screws provided.
Step 8. Then using the M6 screws secure the stove to the convection chamber. Push
the insert stove against the fireplace before fully tightening these bolts.
Step 9. Reach up through the stove and pull the stove collar down and secure the flue
collar to the stove with the two flue collar's bolts. (See fig. 7.)
Step 10. Complete the installation of the flexi liner at the top of the chimney in
accordance with the manufacturer's instructions.
10
Ref No: I17. V2.

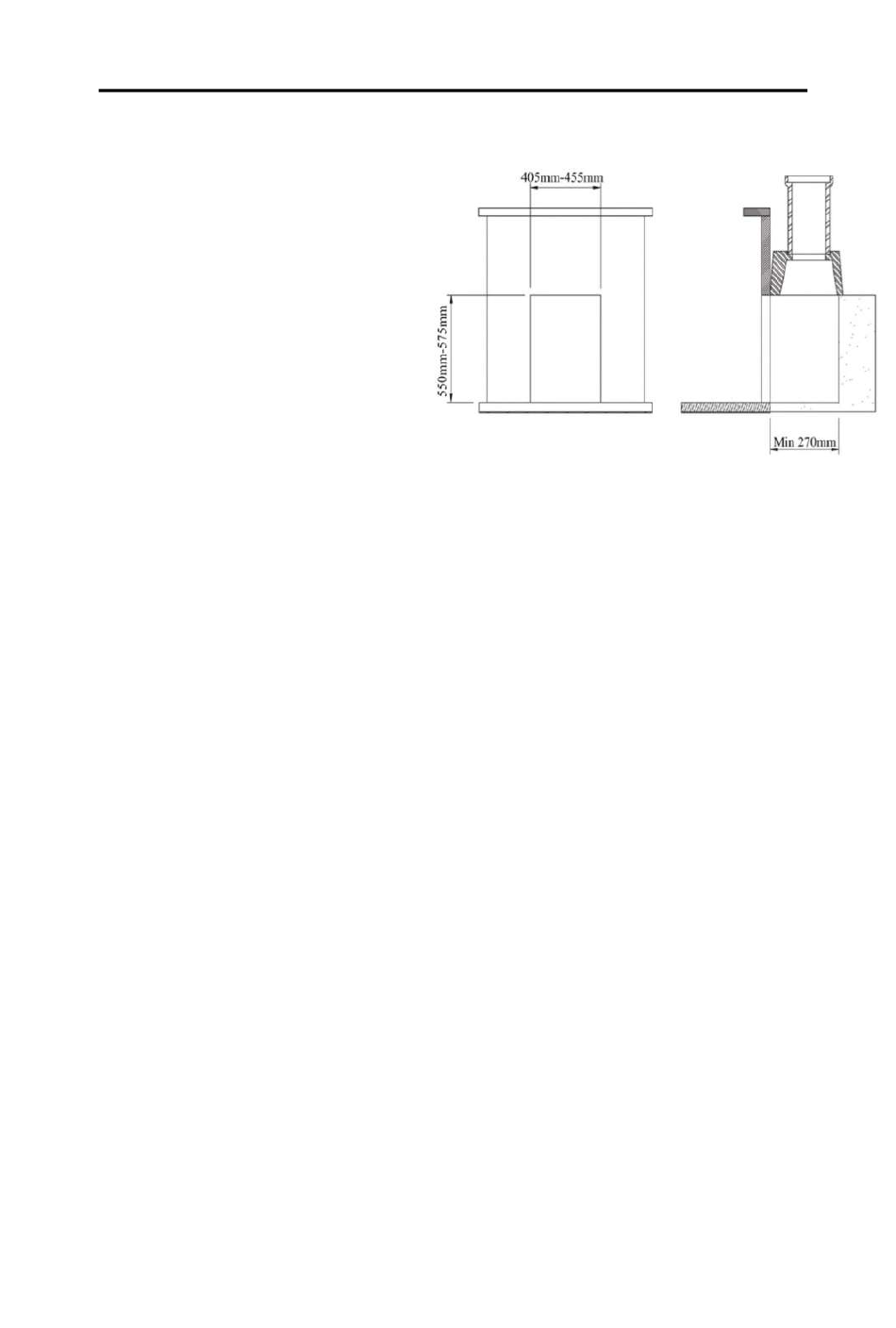

Figure 6
