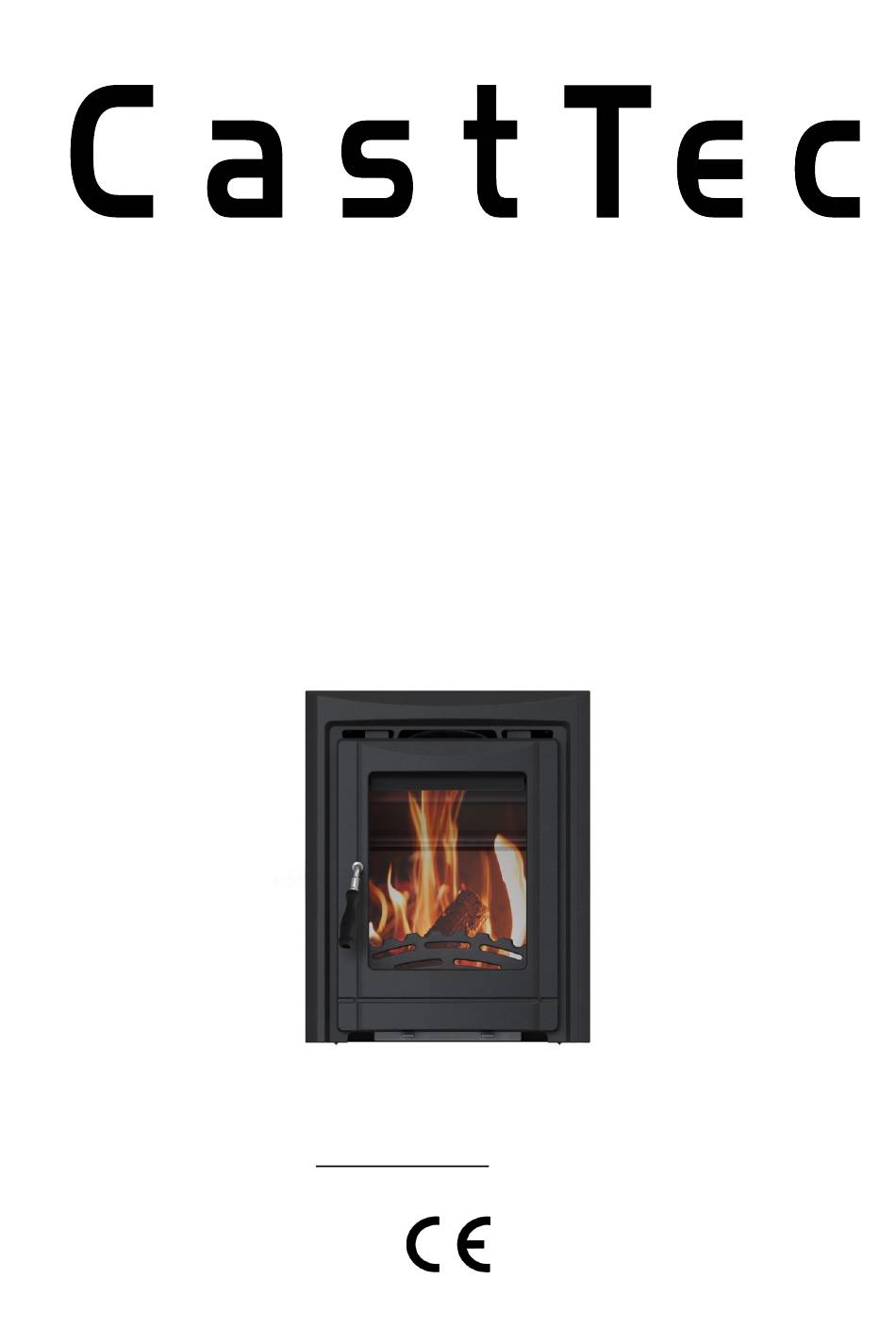

Cougar Inset Manual
(Ref No: MI0405 V1)

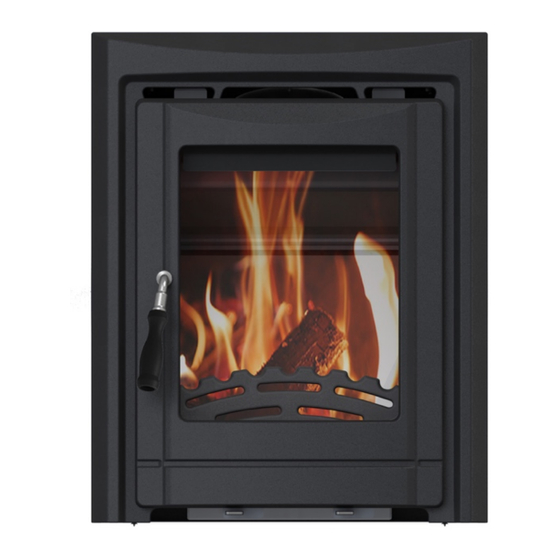

COUGAR INSET
Multi-fuel stove
Ref No: MI 0405 V1
ECO 2022 Ready
Version 01 (23.01.2020)
Installation and Operating Instructions
The Cougar Inset stove must be installed by a suitably qualified engineer.
Instructions must be given to the user when installation is complete, and the installer must
instruct user of the correct use of the appliance and control operation.
The Cougar Inset is manufactured to EN13229:2006 for Cast Tec Ltd. East Side,
Tyne Dock, South Shields NE33 5SP
Website: www.casttec.co.uk Tel. 0191 4974299
Advertisement
Table of Contents
Related Manuals for Cast Tec COUGAR INSET
Summary of Contents for Cast Tec COUGAR INSET
- Page 1 Instructions must be given to the user when installation is complete, and the installer must instruct user of the correct use of the appliance and control operation. The Cougar Inset is manufactured to EN13229:2006 for Cast Tec Ltd. East Side, Tyne Dock, South Shields NE33 5SP...
-
Page 2: Table Of Contents
Cougar Inset Manual (Ref No: MI0405 V1) TABLE OF CONTENTS INSTALLATION ESSENTIALS .............. 3 PRE-INSTALLATION CHECKS ............3 THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS .... 4 TECHNICAL INFORMATION ..............5 INSTALLATION ..................6 FITTING INSTRUCTIONS ..............8 DOWN DRAUGHTS ................ -
Page 3: Installation Essentials
European standards that apply. Your Cougar Inset stove must be installed by a Competent Person registered with a Government Approved Competent Person’s Scheme. In the UK, Hetas is a qualified body that can assist with general advise, regulation, installation, type of fuel usage and can provide a list of registered Competent Persons: Website is www.hetas.co.uk... -
Page 4: The Clean Air Act 1993 And Smoke Control Areas
(Ref No: MI0405 V1) THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS The CastTec Cougar Inset multi-fuel stove has been recommended for exemption from UK smoke control areas when burning wood. Note that authorised fuels can also be used in a Smoke Control Area, details of authorised fuels can be found at https://smokecontrol.defra.gov.uk/fuels.php. -
Page 5: Technical Information
Cougar Inset Manual (Ref No: MI0405 V1) TECHNICAL INFORMATION TECHNICAL DATA ACCORDING TO NEN EN 13229:2001 and NEN EN13229 - A2: 2004 COUGAR INSET WOOD NOMINAL HEAT OUTPUT kW WEIGHT 75KG TOTAL EFFICIENCY % 83.3% 83.8% MEAN CO (at 13 % O2) 0.12... -
Page 6: Installation
Cougar Inset Manual (Ref No: MI0405 V1) INSTALLATION 1. Unpacking the Stove After removing the outer packaging. The door handle and operating tools can be found inside the stove, remove these and attach the handle. Due to the weight of the appliance, we recommend that two people perform the assembly and installation procedure. - Page 7 Cougar Inset Manual (Ref No: MI0405 V1) Chimney THIS PRODUCT SUITABLE CHIMNEY INSTALLATION ONLY. The stove is a radiant room heater and must be connected to a chimney of the proper size and type. The chimney must have a cross...
-
Page 8: Fitting Instructions
Cougar Inset Manual (Ref No: MI0405 V1) FITTING INSTRUCTIONS Step 1. Prepare the fireplace area with fireback or milner brick removal. Ensure the opening is suitable for fitting of the inset stove opening required, i.e. remove fire surround trim if fitted. (See Fig 3) Step 2. -
Page 9: Down Draughts
Cougar Inset Manual (Ref No: MI0405 V1) DOWN DRAUGHTS However well designed constructed and positioned, the satisfactory performance of the flue can be adversely affected by down draught caused by nearby hills, adjacent tall buildings or trees. These can deflect wind to blow directly down the flue or create a zone of low pressure over the terminal. - Page 10 Cougar Inset Manual (Ref No: MI0405 V1) Air vents direct to the outside of the building should be located so that any air current produced will not pass through normally occupied areas of the room. An air vent outside the building should not be located less than the dimensions specified within the Building Regulations and B.S.
-
Page 11: Extractor Fan
Cougar Inset Manual (Ref No: MI0405 V1) EXTRACTOR FAN There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit smoke and fumes into the room. COMMISSIONING & HANDOVER... - Page 12 Cougar Inset Manual (Ref No: MI0405 V1) For example, if the mantle protrudes 200mm, the clearance to the mantle should be 650mm. (See-Fig 6). Fig. 6 If there is a studded wall surrounding the fireplace as in Fig.6, ensure the clearances in this Fig7 are adhered to.
-
Page 13: Floor Protection
Cougar Inset Manual (Ref No: MI0405 V1) FLOOR PROTECTION It is recommended that this appliance is installed on a solid, level, concrete base, a non-combustible hearth conforming to current Building Regulations must extend to the front of the appliance. CHOICE OF FUEL 1. -
Page 14: Use
Cougar Inset Manual (Ref No: MI0405 V1) Odours when using the fireplace for the first time • Painted products: the fireplace may emit an irritating gas when used for the first time, and it may smell a little. The gas is not toxic, but the room should be thoroughly ventilated. - Page 15 Cougar Inset Manual (Ref No: MI0405 V1) Re-fueling- Figure 8 ● Pull the left-hand secondary air control open. Pull the right-hand Primary air control open. ● Open the glass door and add logs. (To load fuel, the door should be opened slowly, avoiding a sudden rush of intake air, so that smoke does not escape into the room.)
- Page 16 Cougar Inset Manual (Ref No: MI0405 V1) Re-fueling - Figure 8 ● Pull the right-hand Primary air control open ● Open the glass door and add fuel. (To load fuel, the door should be opened slowly, avoiding a sudden rush of intake air, so that smoke does not escape into the room.)
-
Page 17: Ash Removal
Cougar Inset Manual (Ref No: MI0405 V1) Very Important: The stove door should never be opened when the stove is being fired vigorously. ● We would strongly recommend that you do not leave your stove alight at night. It harms the environment, and constitutes very poor... -
Page 18: Maintenance
Cougar Inset Manual (Ref No: MI0405 V1) MAINTENANCE • Cleaning Glass o This product is equipped with an air wash for the glass. Air is sucked in through the air vent above the fireplace and down along the inside of the glass. -
Page 19: Spare Parts
Cougar Inset Manual (Ref No: MI0405 V1) SPARE PARTS Over time you may require replacement parts for your CastTec stove. Replacement parts are available through your local stockist. Please use the below diagram to establish the part you require for your stove. Please ensure you quote model, name and also serial number of stove when ordering spare parts. - Page 20 Cougar Inset Manual (Ref No: MI0405 V1) SPARE PARTS TABLE Name Code Quantity Fire bar I1120V2 Ashpan handle CA0105 Grate MI040514 Door I14U07 Frame I17U03 Collar 125Y Left & Right ash damper MI04055758 Baffle CA1911-I17U-02 Baffle part CA1911-I17U-01 Glass Fibre Rope...
- Page 21 Cougar Inset Manual (Ref No: MI0405 V1) SPARE PARTS TABLE Name Code Quantity Bolt CA0293-3 Baffle box CA22-MI0405-13 Air wash damper CA22-I17U-15 Outside frame CAWK19 Bolt CA0211 Bolt CA0212 Bolt CA0214 Screw CAL0112-1 Serial number plate CAL0101-ZJ Glass CA10-I14U Glass Clip...
-
Page 22: Operational Problems & Troubleshooting
Cougar Inset Manual (Ref No: MI0405 V1) OPERATIONAL PROBLEMS & TROUBLESHOOTING Problem Probable causes Action • Use the recommended fuel. • To light the fire, use small, very dry twigs. • Wood green, too damp • To maintain the fire, use split or poor quality. -
Page 23: Energy Label
Cougar Inset Manual (Ref No: MI0405 V1) ENERGY LABEL Cast Tec COUGAR INSET 04,6 ENERGIA · · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE 2015/1186 Cast Tec Ltd...
