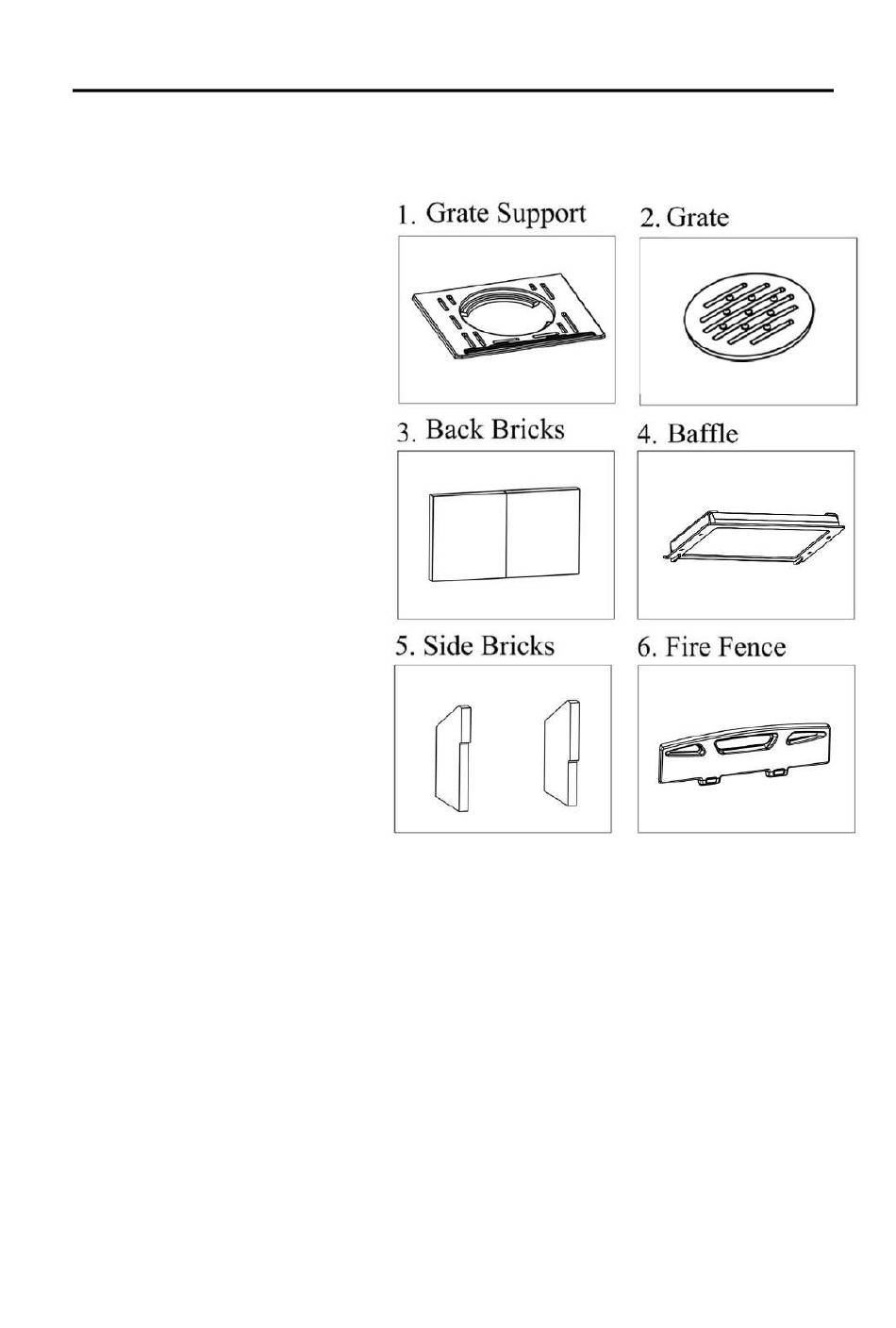

FIT THE INDIVIDUAL COMPONENTS IN THE FOLLOWING ORDER
1. Grate Support
Tilt the grate support up on one
side and pass it carefully
through the door opening.
2. Riddle Grate
The grate simply lays into the
grate support, but care needs
to be taken that the riddling
bar will rest in the middle of
the riddle connecting plate.
With the riddle grate in
position, and the riddle bar
located through the hole on
the front left of the stove, then
connect the cylindrical handle
to the end of the riddle bar
and tighten with the Allen key
provided.
3. Back Bricks
Lay the back bricks in as
shown.
4. Baffle
Lay the baffle on the back
brick, then hold it meanwhile
lay the left and right side
brick.
5. Side Bricks
Lay the side and back bricks in as shown.
6. Fuel
Retainer
Lay the fuel retainer into the slots provided ensuring that they slope from front to back so
that no embers can fall out through the
12
.
fuel retainer
