Polaris Inset Eco Manual
Ref No: I17. V1.

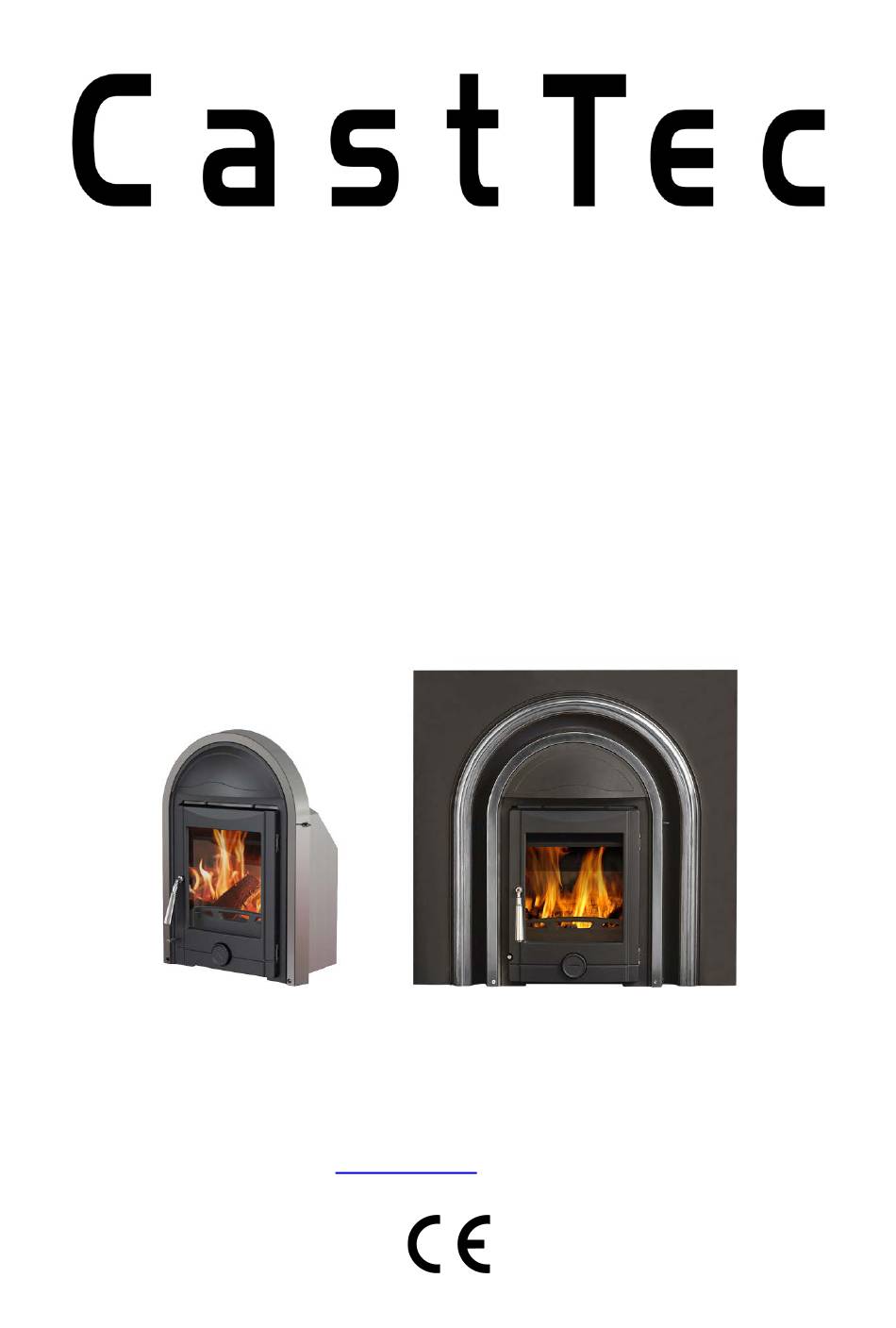

POLARIS INSET ECO
Multi-fuel stove
Ref No: I17.
Version 01 (06.03.2023)
Installation and Operating Instructions
The Polaris Inset Eco stove must be installed by a suitably qualified engineer.
Instructions must be given to the user when installation is completed, and the installer must instruct user of the
correct use of the appliance and control operation.
Polaris Inset
Polaris Integra
The Polaris Inset Eco and the optional Polaris Integra cast iron fireplace are manufactured by
Cast Tec Ltd. East Side, Tyne Dock, South Shields NE33 5SP
Website:
www.casttec.co.uk
- Tel. 0191 4974280
Advertisement
Table of Contents
Related Manuals for Cast Tec POLARIS INSET ECO
Summary of Contents for Cast Tec POLARIS INSET ECO
- Page 1 Polaris Inset Polaris Integra The Polaris Inset Eco and the optional Polaris Integra cast iron fireplace are manufactured by Cast Tec Ltd. East Side, Tyne Dock, South Shields NE33 5SP Website: www.casttec.co.uk...
-
Page 2: Table Of Contents
Polaris Inset Eco Manual Ref No: I17. V1. TABLE OF CONTENTS THE CLEAN AIR ACT 1993 AND SMOKE CONTROL AREAS ................3 INSTALLATION ESSENTIALS .......................... 4 PRE-INSTALLATION CHECKS ......................... 4 TECHNICAL INFORMATION .......................... 5 INSTALLATION ............................. 8 FITTING INSTRUCTIONS ..........................10 FIT THE INDIVIDUAL COMPONENTS IN THE FOLLOWING ORDER .............. -
Page 3: The Clean Air Act 1993 And Smoke Control Areas
Clean Air Act requirements. The CastTec Polaris Inset Eco has been recommended as suitable for use in smoke control areas when burning wood logs and authorised fuels. The CastTec Polaris Inset Eco is fitted with a permanent stop to prevent closure of the secondary air control beyond 50% open. -
Page 4: Installation Essentials
The installation of a fireplace or stove must be in accordance with local codes and regulations in each country and other national and European standards that apply. Your Polaris Inset Eco stove must be installed by a Competent Person registered with a Government Approved Competent Person’s Scheme. -
Page 5: Technical Information
Polaris Inset Eco Diagram Figure 1 Polaris Integra Eco Diagram The CastTec Polaris Integra is a cast-iron insert that integrates with the Polaris Inset Eco to create an efficient traditional fireplace. (See Figs. 2 and 3) Figure 2 Cast Tec Ltd... - Page 6 Polaris Inset Eco Manual Ref No: I17. V1. Polaris Integra Assembly Figure 3 2 x M6 wing nuts and washers accessed behind the canopy. M6 Bolts Canopy M6 Wing Nuts 2 x M6 countersunk bolts screw into Outer Fascia. Cast Tec Ltd...
- Page 7 Polaris Inset Eco Manual Ref No: I17. V1. TECHNICAL DATA ACCORDING TO NEN EN 13229:2001 and NEN EN13229 - A2: 2004 WOOD ANTHRACITE Polaris Inset Eco STOVE Multi-Fuel FUEL 4.6 kW 4.8 kW NOMINAL HEAT OUTPUT 79.2 % 76.8 %...
-
Page 8: Installation
Polaris Inset Eco Manual Ref No: I17. V1. INSTALLATION Installing this stove The stove and chimney installations MUST comply with all current National and Local Building Regulations; your approved dealer or your local building control officer can advise regarding this. Ultimately, it is you and your installer who is responsible that the installation complies. - Page 9 Polaris Inset Eco Manual Ref No: I17. V1. Chimney THIS PRODUCT IS SUITABLE FOR CHIMNEY INSTALLATION ONLY. The stove is a radiant room heater with Figure 5 convection chamber and must be connected to a chimney of the proper size and type. The...
-
Page 10: Fitting Instructions
Polaris Inset Eco Manual Ref No: I17. V1. FITTING INSTRUCTIONS (POLARIS INSET ONLY) Figure 6 Step 1. Prepare the fireplace area with fireback or milner brick removal. Ensure the opening is suitable for fitting of the insert stove opening required, i.e., remove fire surround trim if fitted. - Page 11 Polaris Inset Eco Manual Ref No: I17. V1. FITTING INSTRUCTIONS (POLARIS INTEGRA) Step 1. Prepare the Fireplace area with the fireback or milner back removed. Ensure the opening is a suitable size to accommodate the Polaris Inset. (See Fig. 6.) Step 2.
-
Page 12: Fit The Individual Components In The Following Order
Polaris Inset Eco Manual Ref No: I17. V1. FIT THE INDIVIDUAL COMPONENTS IN THE FOLLOWING ORDER 1. Grate Support Figure 8 Tilt the grate support up on one side and pass it carefully through the door opening. 2. Riddle Grate... -
Page 13: Down Draughts
Polaris Inset Eco Manual Ref No: I17. V1. DOWN DRAUGHTS However well designed constructed and positioned, Figure 9 the satisfactory performance of the flue can be adversely affected by down draught caused by nearby hills, adjacent tall buildings or trees. These can deflect wind to blow directly down the flue or create a zone of low pressure over the terminal. -
Page 14: Permanent Air Vent Extractor
Polaris Inset Eco Manual Ref No: I17. V1. An air vent outside the building should not be located less than the dimensions specified within the Building Regulations and B.S. 8303: Part 1 from any part of any flue terminal. These air vents must also be satisfactorily fire proofed as per Building Regulations and B.S. -
Page 15: Commissioning & Handover
Polaris Inset Eco Manual Ref No: I17. V1. COMMISSIONING & HANDOVER On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out, when a small fire may be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to the atmosphere. - Page 16 Polaris Inset Eco Manual Ref No: I17. V1. Figure 10 If there is a studded wall surrounding the fireplace as in Fig. 10, ensure the clearances in this Fig. 11 are adhered to. Figure 11 Cast Tec Ltd...
-
Page 17: Floor Protection
Polaris Inset Eco Manual Ref No: I17. V1. FLOOR PROTECTION It is recommended that this appliance is installed on a solid, level, concrete base, a noncombustible hearth conforming to current Building Regulations must extend to the front of the appliance. -
Page 18: Use
Polaris Inset Eco Manual Ref No: I17. V1. • Painted products: the fireplace may emit an irritating gas when used for the first time, and it may smell a little. The gas is not toxic, but the room should be thoroughly ventilated. - Page 19 Polaris Inset Eco Manual Ref No: I17. V1. Very Important: Wood is a material that contains a great deal of gas (approximately 75 %). The gases are released when the wood is lit and heated up. For this reason, it is important that the gases are ignited quickly after stoking.
- Page 20 Polaris Inset Eco Manual Ref No: I17. V1. Figure 12 Secondary Control The Secondary control has a factory set 50% air stop. This fulfils DEFRA smoke Primary Control control compliance. Very Important: The stove door should never be opened when the stove is being fired vigorously.
-
Page 21: Ash Removal
Polaris Inset Eco Manual Ref No: I17. V1. ASH REMOVAL Use of Ashpan Figure 13 It is essential to keep the grate free from a heavy build up of ashes. This product is equipped with a grate riddling device which is used to “shake” ashes off the grate into the ash pan. -
Page 22: Detachable Handle
Polaris Inset Eco Manual Ref No: I17. V1. DETACHABLE HANDLE The handle on the CastTec Polaris stove can be used in two ways, attached to the stove’s door (Fixed), or detached from the stove’s door (Detachable). Figure 14 PLEASE NOTE:... -
Page 23: Maintenance
Polaris Inset Eco Manual Ref No: I17. V1. MAINTENANCE • Packaging Your appliance is packaged to minimise exposure to adverse elements and should reach you in perfect condition. The product should be stored in a warm, dry environment and remain packaged until the fireplace is ready to be installed. It is essential that you inspect your casting prior to installation as it will be deemed to be of merchantable quality thereafter and no liability will be accepted for product removal, reinstallation or redecoration. - Page 24 Polaris Inset Eco Manual Ref No: I17. V1. • Cleaning – Painted cast iron This finish can be maintained simply by dusting with a dedicated dry paint brush or brush attachment on a hoover. Any painted cast iron will need to ‘cure’ onto the surface when heat is first introduced, it is recommended for solid fuel fires to burn several small fires initially.
-
Page 25: Spare Parts
Polaris Inset Eco Manual Ref No: I17. V1. SPARE PARTS Figure 16 Cast Tec Ltd... - Page 26 Polaris Inset Eco Manual Ref No: I17. V1. SPARE PARTS TABLE Code Name I1403A Frame I1419 Top of Frame I1407 Door CAF0660 Spin valve I1115 Moving grate 125（2） Collar CA0105 Ashpan handle 050101.I1720L Fuel Retainer I2514 Grate CA1209 Ashpan CA1112...
- Page 27 Polaris Inset Eco Manual Ref No: I17. V1. SPARE PARTS TABLE Code Name CA0801 Fibre Rope CA0802-1 Fibre Rope CA0707 Spring CAL0112 Screw CA0614 Hinge shaft CA1605 Hinge A CA1606 Hinge B CA0321 Washer CA0148 Spacer FRI17U211 Back brick FRI17U212...
-
Page 28: Operational Problems & Troubleshooting
Polaris Inset Eco Manual Ref No: I17. V1. OPERATIONAL PROBLEMS & TROUBLESHOOTING PROBLEM PROBABLE CAUSES ACTION • Use the recommended fuel. • Wood green, too damp • To light the fire, use small, very dry or poor quality. twigs. • To maintain the fire, use split logs. - Page 29 Polaris Inset Eco Manual Ref No: I17. V1. Cast Tec Ltd...
