JYTEK JY-5320 Series Specification

Simultaneous data acquisition modules

Hide thumbs

Table Of Contents

Quick Links

Download this manual

1 USB/PCIe/PXIe-5321,5322,5323,5324 Specification

Family of Simultaneous Data Acquisition Modules

 Please download JYTEK <JYPEDIA>, you can quickly

inquire the product prices, the key features and

available accessories.

1.1 Main Features

⚫

High accuracy: 380 ppm

⚫

32 (JY-5321, JY-5323) / 16 (JY-5322, JY-5324)

simultaneous voltage measurement channels

⚫

1 MS/s per channel( JY-5321 JY-5322)

⚫

200 KS/s per channel (JY-5323JY-5324)

⚫

16 bits resolution

⚫

Up to 220 KHz bandwidth

⚫

Better than -90dB THD

Overview

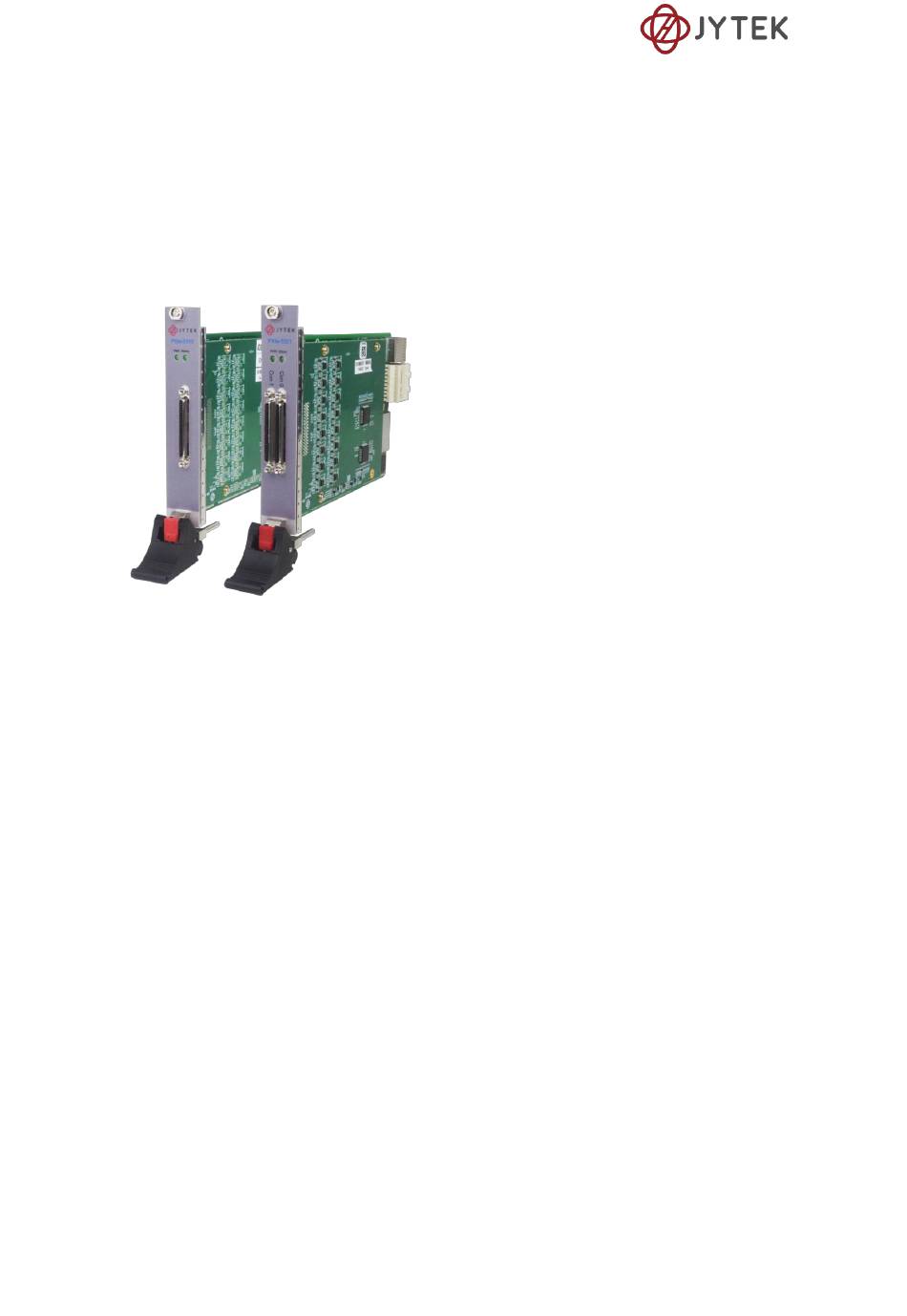

USB/PCIe/PXIe-5321,5322,5323,5324 is

a high-precision, high-resolution, up to

32-channel

simultaneous

measurement module. It can be used to

measure the DC voltage, the AC voltage

as well as many dynamic signals.

Depending on the model number, a JY-

5321/5322/5323/5324 series provide

different AI channels, sampling rate.

⚫

System noise as low as 7µVrms

⚫

Up to 8µV resolution

⚫

Voltage ranges:

±0.25V/±0.5V/±1V/±2V/±5V/±10V

JY-

(

5321,

5322)

⚫

±0.5V/±1V/±5V/±10V (JY-5323,JY-5324)

⚫

240M samples of FIFO buffer

⚫

Analog and Digital Trigger

JY-5320 Series V1.0.2 |

voltage

jytek.com

| 1
