- Page 1 PXI-93518 8 Ports Serial Communication Modules User’s Manual User Manual Version: V1.0.0 Revision Date: Nov 10, 2021...
- Page 2 Trademarks PXI-93518 are registered trademarks of JYTEK, Windows 7, Windows 10 are registered trademarke of Microsoft- Corporation. Intel@ is a registered trademark of Intel Corporation.Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
- Page 3 Getting Service Customer satisfaction is our top priority. Contact us should you require any service or assistance. SHANGHAI JYTEK CO., LTD. Web Site http://www.jytek.com Sales & Service service@jytek.com Telephone No. +86-21-50475899 Fax No. +86-21-50475899 Mailing Address 300 Fangchun Rd., Zhangjiang Hi-Tech Park,...
-
Page 4: Table Of Contents
Figure 7 Find Driver Software................8 Figure 8 Select Driver Software................9 Figure 9 Driver Updated Successfully..............9 Figure 10 The board be recognized..............10 Figure 11 The ports be recognized..............10 Table 1 PXI-93518 Connector Pin Assignment............ 4 Table 2 Notes to Legend in the Pin Definitions...........5... -
Page 5: Introduction

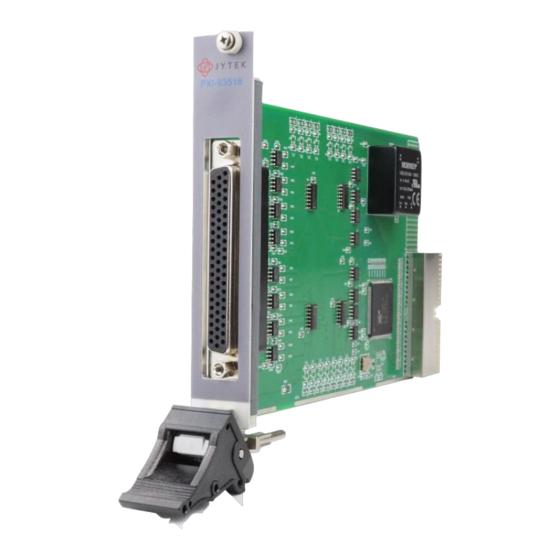

1.1 PXI-93518 Overview 1.1.1 What is the PXI-93518 PXI-93518 is an eight ports serial communication module, compatible with RS-422, RS-485 and RS-232 standards, with fast transient voltage suppression protection circuit. This protector can effectively suppress lightning and ESD, provide 600W... - Page 6 Figure 1 RS-422 Functional Structure Figure 2 RS-485 Functional Structure PXI-93518 | jytek.com | 2...
-
Page 7: Pxi-93518 Connector Pin Assignment
Figure 3 RS-232 Functional Structure 1.1.3 PXI-93518 Connector Pin Assignment DB62 female connector pin assignment for the PXI-93518. RS-232 RS-422 RS-485 Port # OUT1+ OUT1- IN1+ IN1- Port1 OUT2+ OUT2- IN2+ IN2- Port2 OUT3+ OUT3- IN3+ Port3 IN3- PXI-93518 | jytek.com | 3... - Page 8 OUT4+ OUT4- IN4+ IN4- Port4 OUT5+ OUT5- IN5+ IN5- Port5 OUT6+ OUT6- IN6+ IN6- Port6 OUT7+ OUT7- IN7+ IN7- Port7 OUT8+ OUT8- IN8+ IN8- Por8 Table 1 PXI-93518 Connector Pin Assignment PXI-93518 | jytek.com | 4...
-
Page 9: Installation
Figure 4 Connector DB62 2. Installation This chapter describes the configurations of the serial communication module. The contents in the package and unpacking information that the user should be aware of are described in the beginning. PXI-93518 | jytek.com | 5... -
Page 10: What You Have
What You Have In addition to this User's Manual, the package includes the following items: PXI-93518 Serial Communication Interface Module DB62 Connector 2.2 Unpacking Your serial communication module contains sensitive electronic components that can be easily damaged by static electricity. -
Page 11: Hardware Configuration
2.5 Software Installation 2.5.1 Windows 7 Installation 1. After slacing the PXI-93518 in the chassis, open the [Device manager] ,and you will see a unknown device with question mark . Figure 5 Device Manager 2. Right click the device, select the [update driver software] button. - Page 12 3. Select the [Browse your computer for driver software]. Figure 7 Find Driver Software 4. When prompted for the path, specify the drive and directory where the new driver for the card installed.Choose x64 or x86 depending on the computer system. PXI-93518 | jytek.com | 8...
- Page 13 Figure 8 Select Driver Software 5. Follow the configuration dialog boxes to install the driver. Figure 9 Driver Updated Successfully PXI-93518 | jytek.com | 9...
- Page 14 Figure 10 The board be recognized 7. Now the port device are all identified. Serial port number starts from the smallest available number in the system. Figure 11 The ports be recognized PXI-93518 | jytek.com | 10...
- Page 15 Note: Unload the driver before removing the board to avoid occupying the system port resources. Warranty Policy Thank you for choosing JYTEK. To understand your rights and enjoy all the after-sales services we offer, please read the following carefully. 1. Before using JYTEK‘s products please read the user manual.and follow the instructions exactly.
