Field Implementation & Environmental Conditions
• Net Width = 24,6 mm
• Net Height = 119,8 mm
• Net Depth = 97,9 mm
• Upper Depth = 82 mm
• Bottom Depth = 73 mm

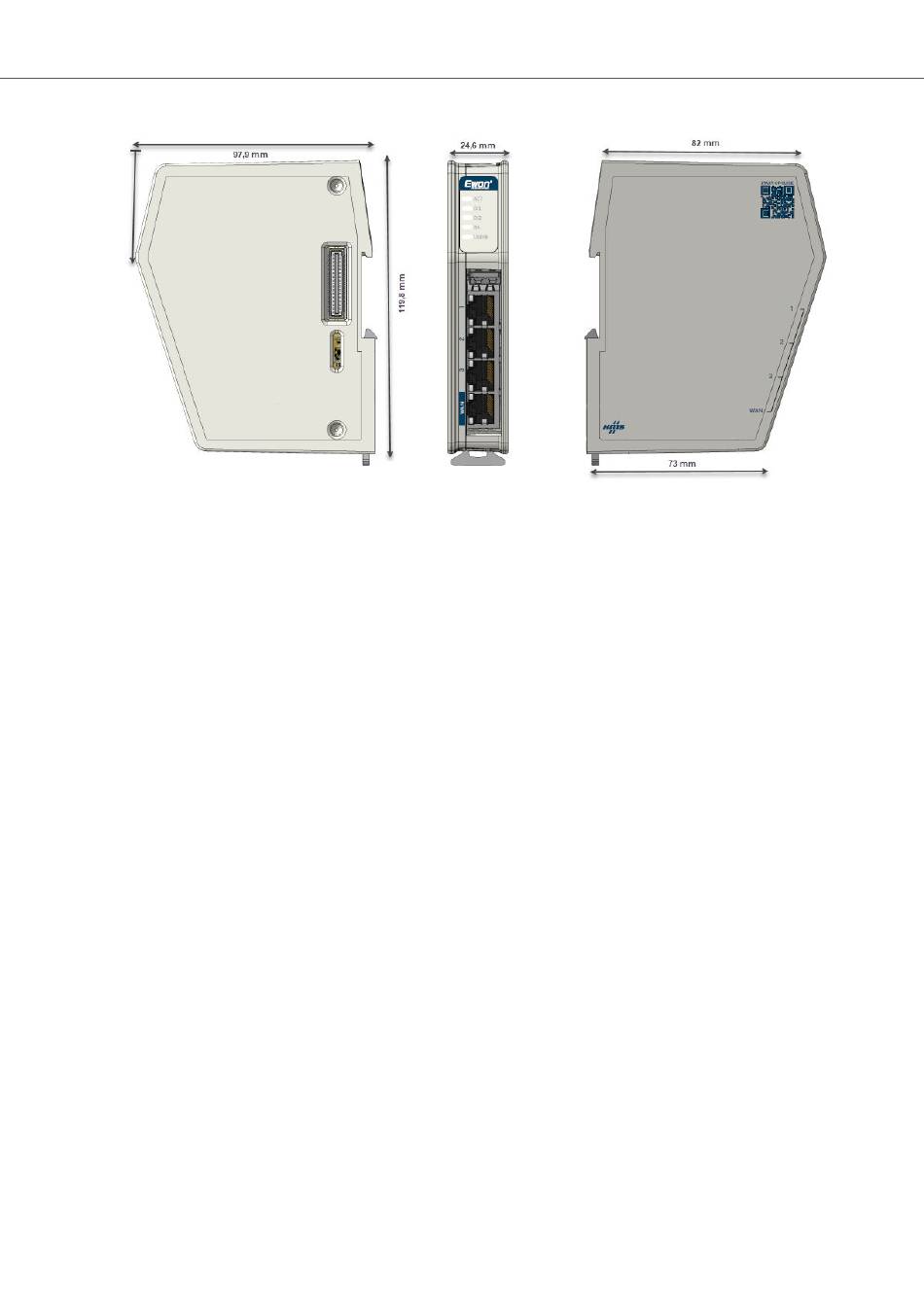

Figure 1. Mechanical dimensions of the Ewon
3.4.4. Mounting Recommendations
The product is intended to be mounted vertically with the main connector at the bottom.
The normal mounting position of the Ewon
1. Mounting the unit on DIN-rail [Omega type DIN-rail (EN 50022)]
Present the unit in front of the DIN rail. Tilt the Ewon
of the DIN rail by its hook. Gently tilt the unit downwards until it finds its original position to lock the unit on
the DIN rail.
2. Removing the unit from DIN-rail [Omega type DIN-rail (EN 50022)]
Release the unit by pulling the rail slide lock downwards while gently tilting the unit upwards. Free the unit
by unhooking it from the upper rail edge.
IG-0035-00 0.3
®
Edge
®
Edge is to be mounted on a horizontal Omega type DIN rail.
®
Edge upwards in order to hang it on the upper edge
®
