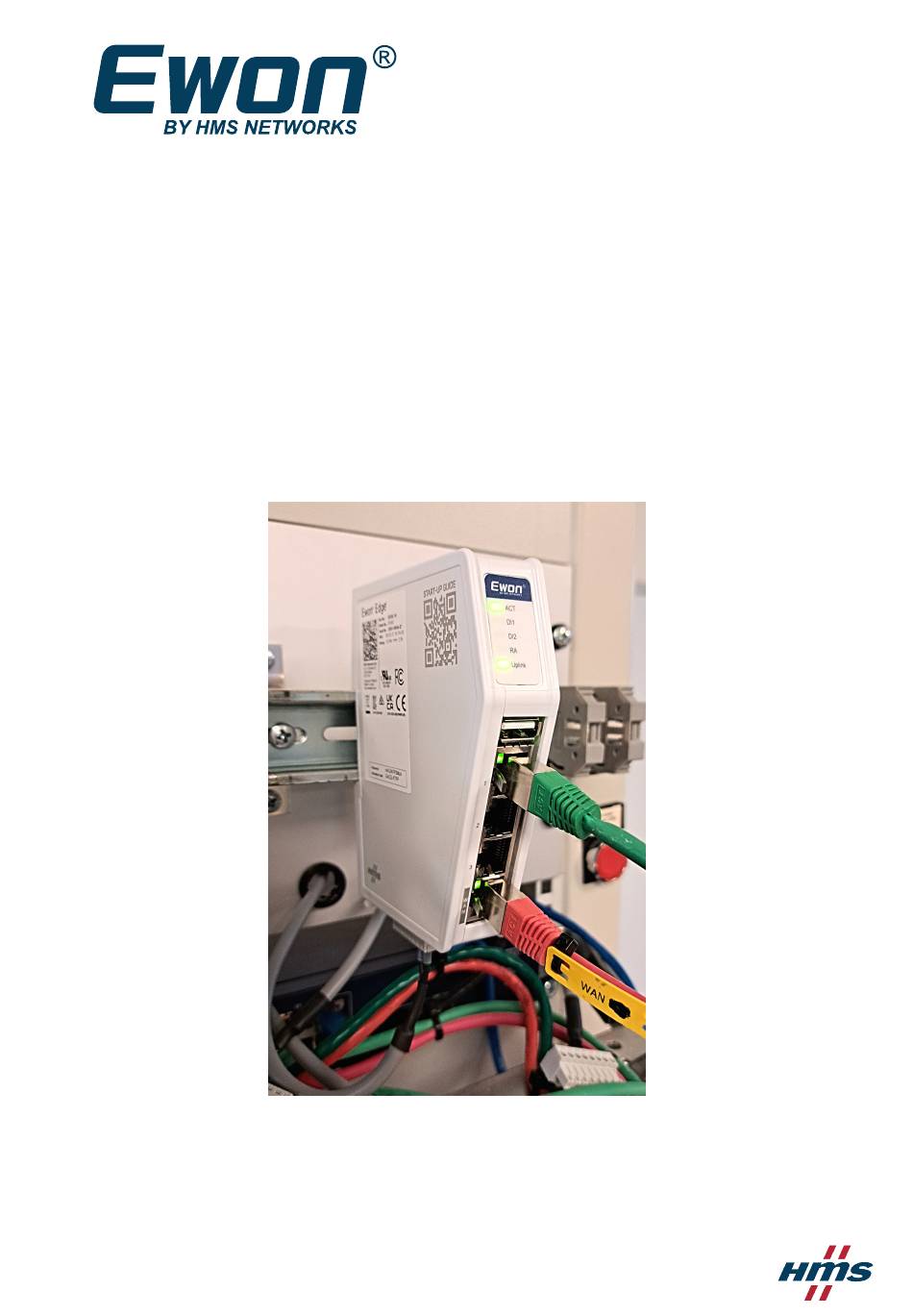

- Page 1 ENGLISH ® Ewon Edge family INSTALLATION GUIDE IG-0035-00 0.3 Publication date 22/01/2025...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
- Page 3 ® Ewon Edge family Table of Contents 1. Preface ..........................1 1.1. About This Document ......................1 1.2. Document History ......................1 1.3. Related Documents ......................1 1.4. Trademark Information ...................... 1 2. Product Summary ........................2 2.1. Type & Part Numbers ......................2 2.2.
- Page 4 1.3. Related Documents Document Author Document ID None 1.4. Trademark Information Ewon® is a registered trademark of HMS Networks SA. All other trademarks mentioned in this document are the property of their respective holders. IG-0035-00 0.3 Page 1 of 17...
- Page 5 ® Product Summary Ewon Edge family 2. Product Summary 2.1. Type & Part Numbers ® There are several models of the Ewon Edge proposing different communication media. They include the following part numbers: Part number Model Number Model name Description ®...
- Page 6 ® Safety, Environmental & Regulatory Information Ewon Edge family 3. Safety, Environmental & Regulatory Information 3.1. Scope ® This chapter addresses safety, environmental and regulatory information for the Ewon Edge. 3.2. Power Supply The external power supply is a third-party device that is not part of this certification. •...
- Page 7 ® Field Implementation & Environmental Conditions Ewon Edge family • Net Width = 24,6 mm • Net Height = 119,8 mm • Net Depth = 97,9 mm • Upper Depth = 82 mm • Bottom Depth = 73 mm ® Figure 1.
- Page 8 ® Field Implementation & Environmental Conditions Ewon Edge family Description Rail slide lock DIN rail mounting bracket Figure 2. DIN Rail Mounting Position 3.4.5. Ventilation To ensure a proper ventilation of the equipment, a free gap of at least 2 cm must be respected in front of all upper and lower ventilation openings of the unit.
- Page 9 ® Field Implementation & Environmental Conditions Ewon Edge family ® Figure 3. Free gap surrounding the Ewon Edge for heat dissipation. 3.4.6. Cabling Rules ® Shielded cables must be used for the Ethernet connectivity of the Ewon Edge to comply with the EMC requirements.
- Page 10 ® Internal Battery Ewon Edge family Table 1. Environmental conditions Operating temperature -25°C to +60°C Operating relative humidity 10 to 95% non-condensing Operating altitude Up to maximum 2000m Storage temperature -30°C to +70°C Storage altitude Up to maximum 3000m Storage humidity 10 to 95% non-condensing IMPORTANT If the mounting recommendations mentioned is not applied, the specified operating temperature...
- Page 11 ® Hardware Description Ewon Edge family 4. Hardware Description 4.1. Label ® The identification label of the Ewon Edge is placed on the left hand side of the housing. The different parts of the label are described as follows: ® Figure 4.
- Page 12 ® Overall Description Ewon Edge family ® Table 2. Label of an Ewon Edge Label Description Part No. Part Number (see syntax table below) Model No. Model number (ex: Model 12345) Serial No. Serial Number in the form of YYWW-SSSS-PP •...
- Page 13 ® Overall Description Ewon Edge family 4.2.1. Hardware Interface Description ® Figure 5. Interface of the Ewon Edge Table 4. Description of the front panel Description Reset button Status LEDs LAN/WAN Ethernet ports and corresponding status LEDs: • Blinking Green: Activity on ETH port •...
- Page 14 ® Overall Description Ewon Edge family 4.2.2. Connector on the bottom Side ® Figure 6. Main connector of the Ewon Edge 4.2.3. LED Indicators and Status IG-0035-00 0.3 Page 11 of 17...
- Page 15 ® LAN Switch Specifications Ewon Edge family Table 5. LED Indicators and description - All versions Label Description Purpose Activity Indicates the device status, such as running, booting, detecting USB configuration files, resetting, etc. Digital Input 1 Monitors the state of Digital Input 1 if the feature is enabled in the device configuration. Available feature: •...
- Page 16 ® LAN Switch Specifications Ewon Edge family 4.3.2. Reset Procedure of the Ewon Edge Ensure the device is powered off. Press and hold the reset button (located on the upper side of the device). Power on the device while keeping the reset button pressed. green LED next to the reset button will light up, indicating the button is correctly pressed.
- Page 17 ® Ewon Edge Models Ewon Edge family 5. Ewon Edge Models 5.1. Ewon Edge Ethernet - EDGE-10 • Order Code: EDGE-10 • Model Number: 01003 5.1.1. Technical Specifications - EDGE-10 Specifications Details Wan Connectivity Ethernet Type tests Temperature - Operating & Storage tested according to: •...
- Page 18 ® Ewon® Edge Installation Guide Appendix Ewon Edge family ® Appendix A. Ewon Edge Installation Guide Appendix 1. Main Connector As shown in the image below, the female mating connector is labelled with the appropriate symbols. ® Figure A.1. The Ewon Edge Female connector Table A.1.
- Page 19 ® Digital Output & Digital Inputs Ewon Edge family 3. Digital Output & Digital Inputs Figure A.2. Current scheme of the main connector Table A.4. Main connector characteristics Characteristic Value Type of digital output Dry Contact Relay Maximum current (external source) 500 mA Isolation (both DI &...
- Page 20 ® Digital Output & Digital Inputs Ewon Edge family Table A.5. Features linked to DO & DI Description Linked LED DI1 (Digital If enabled in the device configuration, this input can Input 1) control remote access. It can be configured to allow The LED is firmware driven.
