4.3.2. Reset Procedure of the Ewon Edge
1.
Ensure the device is powered off.
2.
Press and hold the reset button (located on the upper side of the device).
3.
Power on the device while keeping the reset button pressed.
A green LED next to the reset button will light up, indicating the button is correctly pressed.
4.
Continue holding the reset button until the DI1 and DI2 LEDs start blinking red.
5.
Release the reset button.
• The DI1 and DI2 LEDs will stop
6.
Wait for the device to complete the reset and reboot process.
7.
Once the ACT LED starts blinking green, the reset operation is complete, device has rebooted, and the
device is ready for use.
4.3.3. LAN Switch Configuration

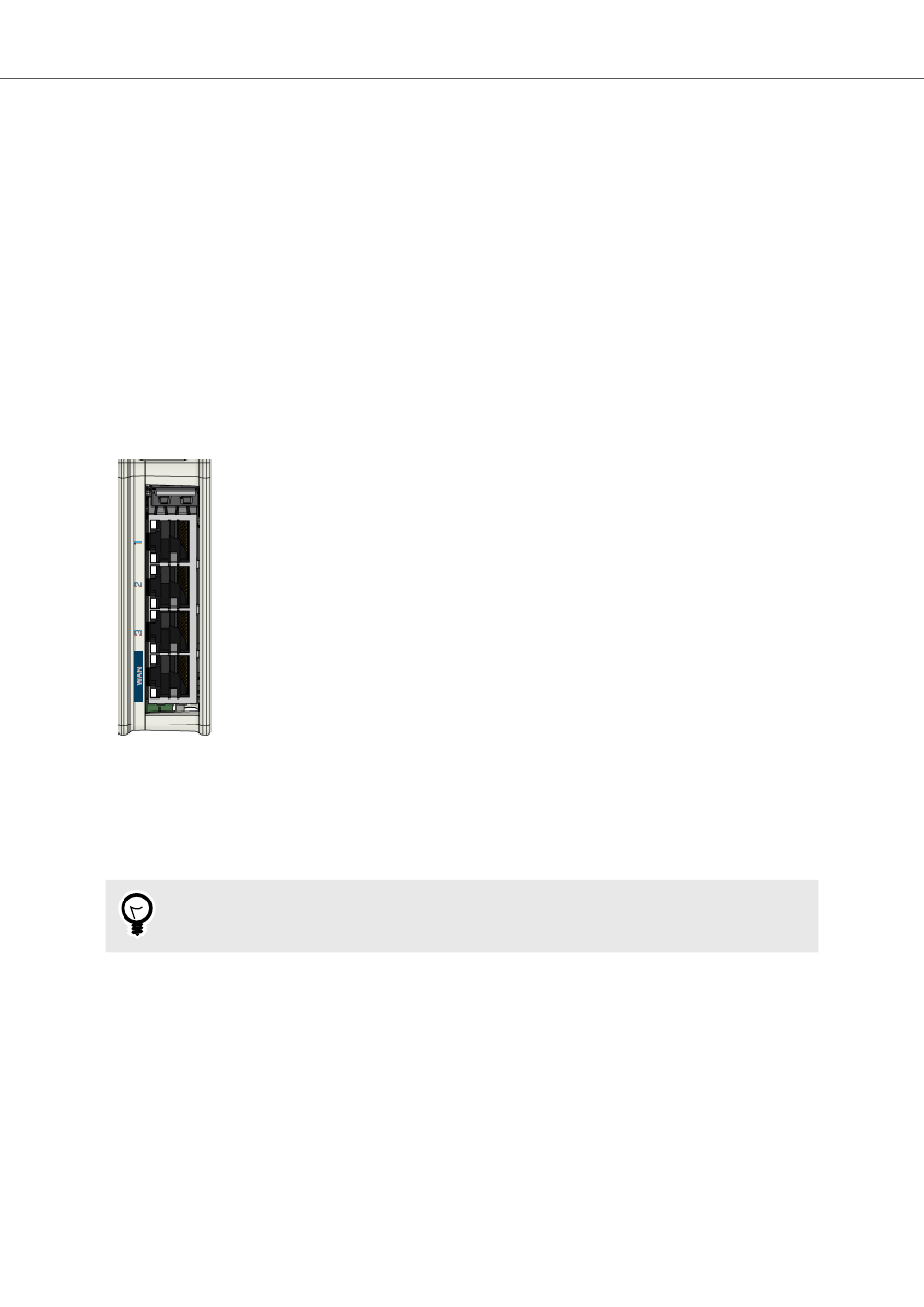

The Ethernet port attribution is configured as follows:
• Port #1 : LAN
• Port #2 : LAN
• Port #3 : LAN
• Port #4: WAN
TIP
Port #4 is grey labeled as WAN on the left side of the port itself.
