Basic Configuration of the MAX inverter

1. Configuration tool USB-WiFi

The small USB-WiFi is small tool for local configuration. Use USB-WiFi module and
ShinePhone can do the reading and setting via local WiFi network, no need
communication cable anymore.

2. Connection

After finished the inverter installation, then can go to the configuration step:

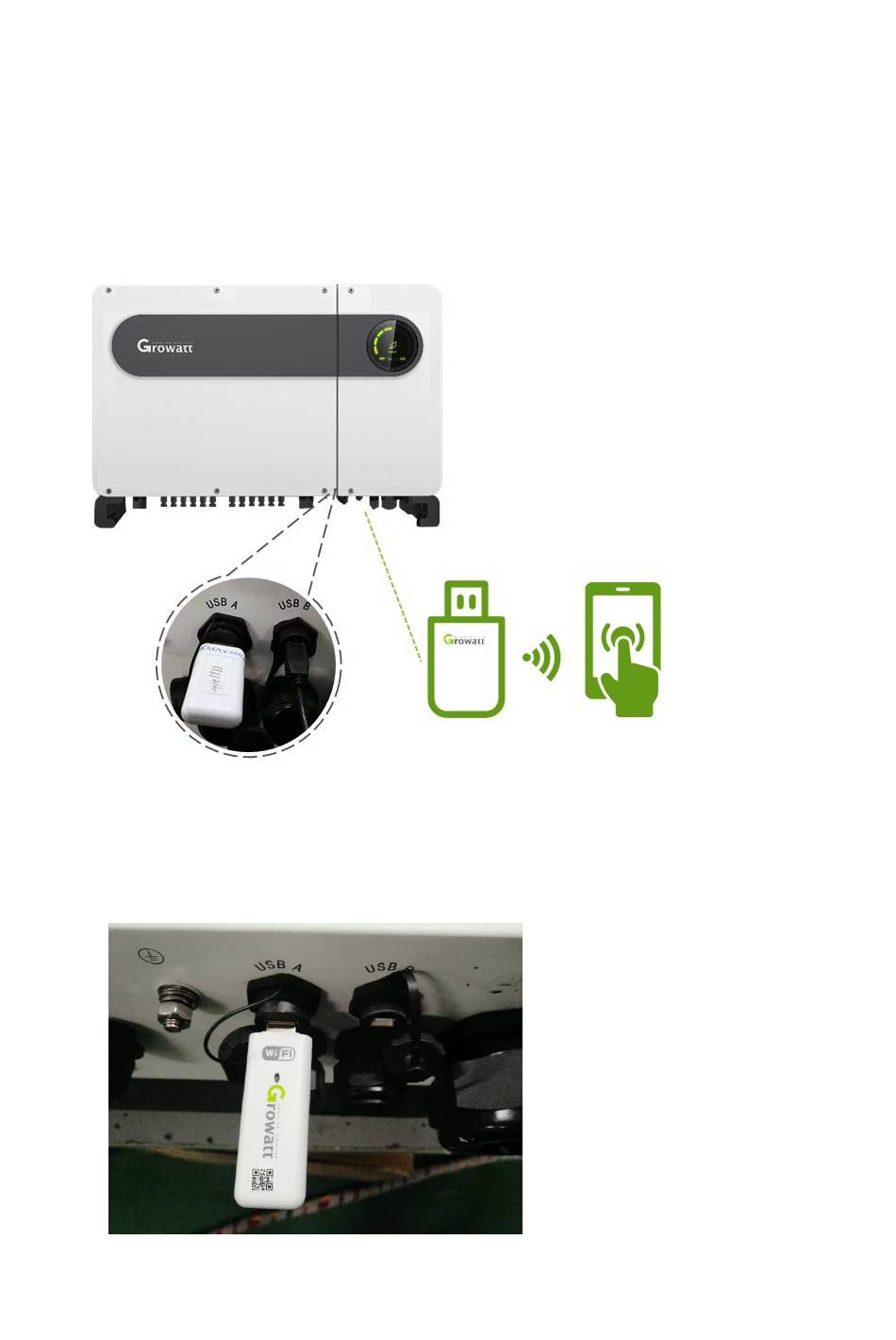

a. Connect the USB-WiFi stick to inverter USB port A, then turn on the AC breaker or
turn on DC switch, the inverter will powered on.
b.
Enter smart phone WLAN Setting page, search the USB-WiFi network, connect to it, the WiFi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt MAX Series

Summary of Contents for Growatt MAX Series

  • Page 1 Basic Configuration of the MAX inverter 1. Configuration tool USB-WiFi The small USB-WiFi is small tool for local configuration. Use USB-WiFi module and ShinePhone can do the reading and setting via local WiFi network, no need communication cable anymore. 2. Connection After finished the inverter installation, then can go to the configuration step: a.
  • Page 2 name is the Serial Number, password is 12345678. 3. Configuration After connect to the USB-WiFi Network, then you can begin the configuration via your phone. Make sure you have installed the latest ShinePhone APP, if not, screen below QR code to download. Configuration steps: a.
  • Page 3 b. When you need do the parameter setting or reading, you can use the Initial to get the permission, the initial password is oss+today’s date, for password example oss20181125. When use this initial password, you need set a new password, the new password only work when you use this phone for configuration.
  • Page 4 d. Set inverter time for each inverter to make sure inverter have right time. Click “Inverter time” to do the setting, after setting, inverter time will be same as the smart phone. Set the COM address for each inverter if use ShineMaster for monitoring.
  • Page 5 10 min. Also you can only select one to check the information, such as I-V curve, AC voltage waveform. The fault waveform record function is only used by guide of Growatt engineers when necessary. Back to the ”Local debugging tool” homepage, click Device information, you can check the inverter parameters, PV string data, AC grid data, inverter information and so on.
