Installation Guide
for Hybrid Inverters
Versie 0.1.5
Growatt New
Energy B.V.
14/02/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIN 2500-6000TL-XH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

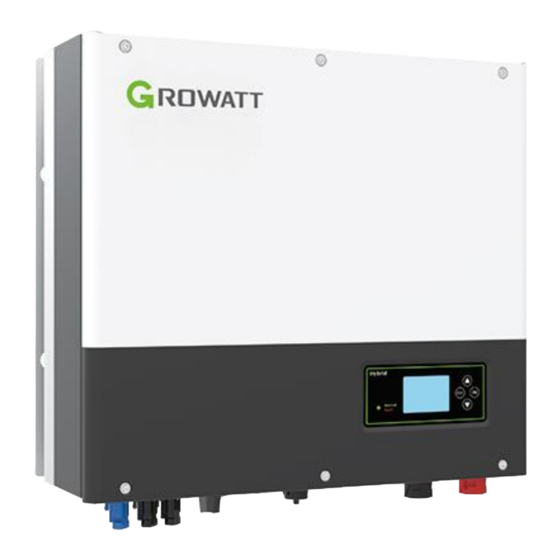

Summary of Contents for Growatt MIN 2500-6000TL-XH

  • Page 1 Installation Guide for Hybrid Inverters Versie 0.1.5 Growatt New Energy B.V. 14/02/2023...
  • Page 2: Table Of Contents

    Table of Contents Introduction ........................... 1 Hybrid inverter & AC coupler/retrofit models ................. 2 MIN 2500-6000TL-XH ....................... 2 Installing ARK 2.5H-A1 Batteries and Connecting the BMS ........... 3 MOD 3000-10000TL-XH ....................8 Installing ARK 2.5H-A1 Batteries and Connecting the BMS ........... 9 Meter Installation ......................
  • Page 3: Hybrid Inverter & Ac Coupler/Retrofit Models

    Hybrid inverter & AC coupler/retrofit models Growatt has a wide assortment of hybrid inverters and AC couplers. This guide will discuss the necessities and step-by-step installation for the following models: MIN 2500-6000TL-XH / MIN 2500-6000TL-XA MOD 3000-10000TL3-XH SPH 3000-6000 BL / BL-UP...
  • Page 4: Installing Ark 2.5H-A1 Batteries And Connecting The Bms

    METER COMPATIBILITY Brand Type Sold as Connection Suited for RS485A RS485B meter delta/split adres place place phase Eastron SDM230 In-line 5 / A 6 / A SDM630V2 In-Line SDM630CT TPM-CT External CT Chint DDSU666 In-Line DTSU666 In-Line DTSU666CT TPM-CT External CT It is recommended to check if the right equipment has been bought and delivered to the client.
  • Page 5 The cable can be removed by pressing the buttons on the side and pulling softly. If placing and removing the cable takes a lot of force, you are probably placing it in the wrong orientation or you are using the wrong cable, and it may damage the connectors. IMPORTANT: Do not forget to plug in the Insert plug in the last battery.
  • Page 6 In case the communication cable towards the inverter is missing, you can use a standard RJ45/CAT cable. To connect to the inverter, you will need to connect White Orange to Pin 1, Orange to Pin 2, White Brown to Pin 7, Brown to Pin 8, as shown above, and the associated definition of the numbering of the pins is defined below:...
  • Page 8 After everything has been properly connected the battery can be turned on. If everything has been properly connected, you will now see information regarding the battery if you go to ‘Storage Parameters’ on the inverter.
  • Page 9: Mod 3000-10000Tl-Xh

    MOD 3000-10000TL-XH The MOD 3000-10000TL-XH inverters are the higher power three phase counterparts to the MIN-XH. Compatiple with the ARK-XH battery system as well as the upcoming APX battery series. BMS controller BDC 95045-A1 Supports 3-10 batteries Battery ARK 2.5H-A1 Needs at least 3 batteries Necessary to install the batteries on the ground as is Battery Base...
  • Page 10: Installing Ark 2.5H-A1 Batteries And Connecting The Bms

    Installing ARK 2.5H-A1 Batteries and Connecting the BMS The connection of the ARK2.5H-A1 batteries is shown below. Make sure that the cables are facing the right orientation. An audible/tactile click indicates a secure connection The cable can be removed by pressing the buttons on the side and pulling softly. If placing and removing the cable takes a lot of force, make sure to check the orientation of the cabling, as the connectors are keyed with notches to prevent switches polarities and accidental disconnection during operation.
  • Page 12 IMPORTANT: Do not forget to plug in the Insert plug in the last battery. If the Insert plug is not connected, the system will not work correctly. TIP: If the Insert plug is missing, you can make one yourself by taking the end of a standard RJ45 connector and shorting pins 4 and 5.
  • Page 13: Meter Installation

    For single phase installations: For single phase installations, the meters provided as the Growatt SPM are the Eastron SDM230 and CHINT DDSU666 The EASTRON SDM230 the grid is on the left, the load group on the right. Horizontal wiring...
  • Page 14 The standard cable colours are ‘White Blue: A and White Orange: B’. A and B connect to Pin 5 and 6 on the SYS COM port: For three phase installations For thee phase installations, Growatt supplies the Eastron SDM630 and Chint DTSU666 as the TPM meter.
  • Page 15: General Tips For Hybrid Inverters

    General tips for hybrid inverters Here you can find the necessary information for Growatt personnel to understand and analyze the system. Please check the following steps and provide necessary information when contacting Growatt for support. Connectivity of the system. Bring the device online with a datalogger. This allows Growatt personnel to retrieve necessary log file and to perform update remotely.
  • Page 16 For MOD-XH inverters Only the top horizontal row is used. Pins 11 through 30 are not used for general communication or functionalities in Hybrid systems. 1~4 - Empty / disconnected 5 - Meter A (on EASTRON port A+, Chint port 24) 6 - Meter B (on EASTRON port B-, Chint port 25) 7 - Brown 8 - White-brown...
  • Page 17: Bms Error

    5. If online monitoring is not available, a local Firmware update can be performed with the appropriate files on a USB stick. Always contact Growatt before any update. Failure to do so may cause damage to the system that is not covered under warranty.
