Summary of Contents for saunalife ERGO Series

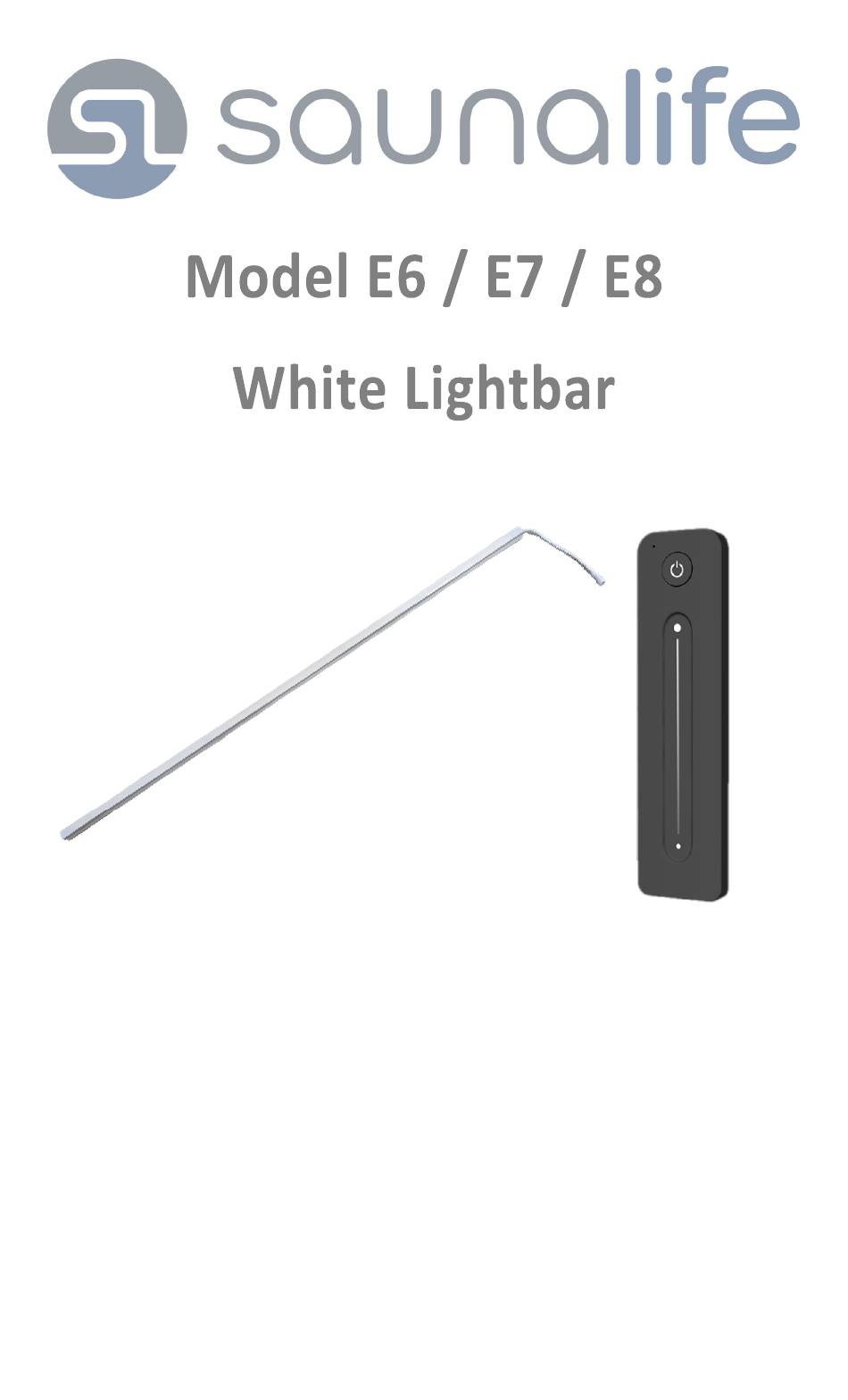

- Page 1 W h i t e L E D L i g h t b a r...
- Page 2 Installation Recommendations Please read this manual in its entirety prior to installation and keep it accessible for future reference. The RF Driver and Power Supply may be installed outdoors but must be IMPORTANT protected from rain and snow. RF Driver and Power Supply should be installed in a waterproof electrical enclosure.
- Page 3 System Components LED Lightbar Package Contents: RF Driver / Receiver Power Supply Dimming Remote (qty. 1) (qty. 1) (qty. 1) 2-Pin 4-Way Cable 2-Pin 30’ Cable AC Power Cable (qty. 1) (qty. 1) (qty. 1) Adjustable Mounting Clips Stationary Mounting Clips (qty.
-
Page 4: Installation
Installation STEP 1. Mount RF Driver/Receiver to surface using 2 screws. Note: Do not install within 20” of sauna heater and a maximum of 20” off floor. STEP 2. Locate 2-Pin 4-way cable and connect single end to 2-Pin Pigtail of Driver. STEP 3. - Page 5 Installation STEP 4. Adjustable Determine the location where your LED light will be installed. Screw Mounting Clips to surface ensuring even coverage of light . f ixture. Take the LED light bar and carefully snap bar into each clip. Stationary STEP 5.
- Page 6 Installation STEP 6. − RF Remote includes a wall mount holder for storing. − Take holder and slide back mounting plate from holder. − At mounting location screw mounting plate to surface. − Slide holder from top down onto mounting the plate. Caution: Control and mount should not be installed higher than 3' or within 2' of heat source...
-
Page 7: Startup & Testing
Startup & Testing • Verify that all connections are secure and complete before proceeding. • Plug the DC-out end of your Power Supply into the DC-in of the Driver. • Plug the Power Supply line into a 120V AC electrical outlet. •... - Page 8 Wi-Fi Setup Continued To set up Wi-Fi operation follow the steps below Note: Wi-Fi Driver supports 802.11 b / g / n 2.4 GHz Wi-Fi standard. The Wi-Fi Driver will not connect with 5 GHz network On IOS or Android download the Tuya Smart App Step 1...
-
Page 9: Specifications
Specifications RF Driver/Receiver Power Supply Operating Voltage: 24V DC Input Voltage: 120VA C Rated Out Current: 5CH, 3A/CH Output Voltage: 24V DC Output Voltage: 12-24V DC Rated Power: Max Output Power: 5Ch X 72W AC Current: 1.3A Operating Temp: -22°F - 131°F DC Current: 3.75A Dimensions:... -
Page 10: Troubleshooting
Troubleshooting No Power • Verify that the electrical outlet has voltage. • Check that connections on Power Supply are securely connected. • Check that the DC barrel plug on the Power Supply is securely connected. Power but light's not turning on •... - Page 11 Notes:...
- Page 12 © 2023 Bathing Brands, Inc. REV: 07/2023...
