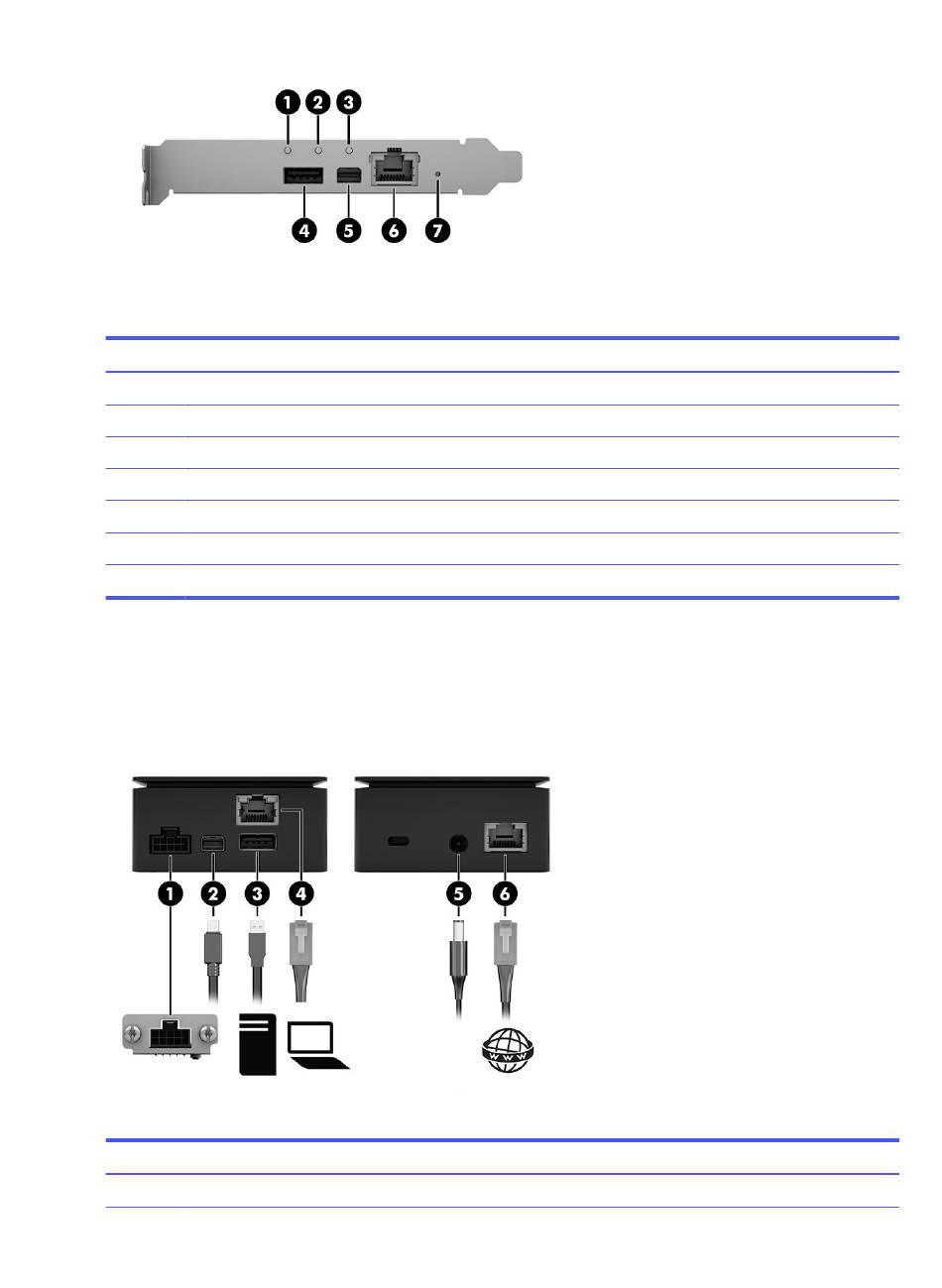

Table 1-4 Identifying the front components
Front components
(1)
(2)
(3)
(4)
(5)
(6)
(7)
* The front USB port is not needed if the internal USB 3.0 connector is used.
Connecting the computer (external)
To connect the computer to the HP Remote System Controller, use this illustration and table.
Table 1-5 Connecting the computer
Cables
(1)
4 Chapter 1 Getting started
Host status LED
Remote System Controller status LED
Remote host status LED
USB for Mouse/Keyboard/Mass Storage Emulation
Mini DisplayPort for graphics input
RJ-45 network cable connector and jack
Soft reset/factory reset button
10-pin cable connector
*
